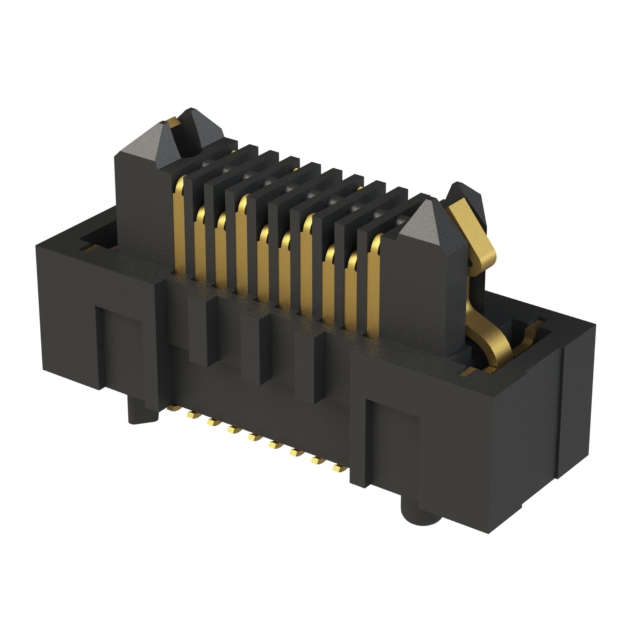

ERM8-010-05.0-S-DV-DS-L-TR

Active

Samtec Inc.

CONN MICRO HIGH SPEED TERMINAL STRIP HDR 20 POS 0.8MM SOLDER ST SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

ERM8-010-05.0-S-DV-DS-L-TR

Active

Samtec Inc.

CONN MICRO HIGH SPEED TERMINAL STRIP HDR 20 POS 0.8MM SOLDER ST SMD T/R

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-010-05.0-S-DV-DS-L-TR

Connector Type	Differential Pair Array, Male
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Latches, Board Guide
Height Above Board	8.91 mm
Height Above Board	0.351 in
Mated Stacking Heights	12 mm, 15 mm, 10 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-010 Series

Part	Pitch [x]	Pitch [x]	Contact Finish	Number of Rows	Number of Positions	Height Above Board	Height Above Board	Mounting Type	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights
Samtec Inc. ERM8-010-01-S-D-RA-L-K-TR	0.8 mm	0.031 in	Gold	2	20	6.25 mm	0.246 in	Surface Mount Right Angle	Board Guide Latches Mounting Flange Pick and Place	Header Center Strip Contacts	0.76 Ám	30 Áin
Samtec Inc. ERM8-010-02.0-S-DV	0.8 mm	0.031 in	Gold	2	20	5.97 mm	0.235 in	Surface Mount	Board Guide	Header Center Strip Contacts	0.76 Ám	30 Áin	7 mm 9 mm 12 mm
Samtec Inc. ERM8-010-05.0-S-DV-EGP-K-TR	0.8 mm	0.031 in	Gold	2	20	8.91 mm	0.351 in	Surface Mount	Board Guide Mating Guide Pick and Place	Header Center Strip Contacts	0.76 Ám	30 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-010-01-L-D-RA-L-K-TR	0.8 mm	0.031 in	Gold	2	20	6.25 mm	0.246 in	Surface Mount Right Angle	Board Guide Latches Mounting Flange Pick and Place	Header Center Strip Contacts	0.25 Ám	10 Áin
Samtec Inc. ERM8-010-02.0-L-DV-K-TR	0.8 mm	0.031 in	Gold	2	20	5.97 mm	0.235 in	Surface Mount	Board Guide Pick and Place	Header Center Strip Contacts	0.25 Ám	10 Áin	7 mm 9 mm 12 mm
Samtec Inc. ERM8-010-05.0-S-DV-DS-L-TR	0.8 mm	0.031 in	Gold	2	20	8.91 mm	0.351 in	Surface Mount	Board Guide Latches	Differential Pair Array Male	0.76 Ám	30 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-010-05.0-L-DV-L-TR	0.8 mm	0.031 in	Gold	2	20	8.91 mm	0.351 in	Surface Mount	Board Guide Latches	Header Center Strip Contacts	0.25 Ám	10 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-010-09.0-L-DV-K-TR	0.8 mm	0.031 in	Gold	2	20	12.91 mm	0.508 in	Surface Mount	Board Guide Pick and Place	Header Center Strip Contacts	0.25 Ám	10 Áin	14 mm 16 mm 19 mm
Samtec Inc. ERM8-010-05.0-S-DV-L-K-TR	0.8 mm	0.031 in	Gold	2	20	8.91 mm	0.351 in	Surface Mount	Board Guide Latches Pick and Place	Header Center Strip Contacts	0.76 Ám	30 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-010-01-S-D-EM2-DS-TR	0.8 mm	0.031 in	Gold	2	20			Board Edge Straddle Mount		Differential Pair Array Male	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	325	$ 4.49

Description

General part information

ERM8-010 Series

20 Position Connector Differential Pair Array, Male Surface Mount Gold
