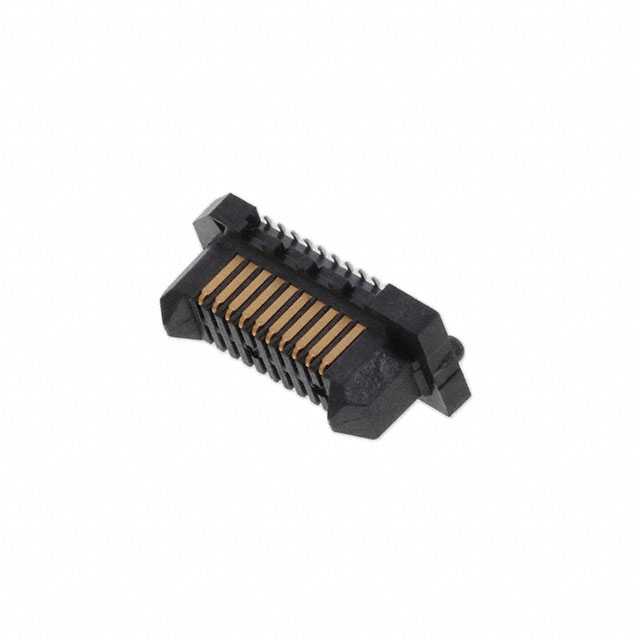

ERM8-010-02.0-L-DV-K-TR

Obsolete

Samtec Inc.

CONN HDR 20POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ERM8 Spec Datasheet

ERM8-010-02.0-L-DV-K-TR

Obsolete

Samtec Inc.

CONN HDR 20POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet ERM8 Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-010-02.0-L-DV-K-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	5.97 mm
Height Above Board	0.235 in
Mated Stacking Heights	7 mm, 12 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-010 Series

Part	Pitch [x]	Pitch [x]	Contact Finish	Number of Rows	Number of Positions	Height Above Board	Height Above Board	Mounting Type	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights
Samtec Inc. ERM8-010-01-S-D-RA-L-K-TR	0.8 mm	0.031 in	Gold	2	20	6.25 mm	0.246 in	Surface Mount Right Angle	Board Guide Latches Mounting Flange Pick and Place	Header Center Strip Contacts	0.76 Ám	30 Áin
Samtec Inc. ERM8-010-02.0-S-DV	0.8 mm	0.031 in	Gold	2	20	5.97 mm	0.235 in	Surface Mount	Board Guide	Header Center Strip Contacts	0.76 Ám	30 Áin	7 mm 9 mm 12 mm
Samtec Inc. ERM8-010-05.0-S-DV-EGP-K-TR	0.8 mm	0.031 in	Gold	2	20	8.91 mm	0.351 in	Surface Mount	Board Guide Mating Guide Pick and Place	Header Center Strip Contacts	0.76 Ám	30 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-010-01-L-D-RA-L-K-TR	0.8 mm	0.031 in	Gold	2	20	6.25 mm	0.246 in	Surface Mount Right Angle	Board Guide Latches Mounting Flange Pick and Place	Header Center Strip Contacts	0.25 Ám	10 Áin
Samtec Inc. ERM8-010-02.0-L-DV-K-TR	0.8 mm	0.031 in	Gold	2	20	5.97 mm	0.235 in	Surface Mount	Board Guide Pick and Place	Header Center Strip Contacts	0.25 Ám	10 Áin	7 mm 9 mm 12 mm
Samtec Inc. ERM8-010-05.0-S-DV-DS-L-TR	0.8 mm	0.031 in	Gold	2	20	8.91 mm	0.351 in	Surface Mount	Board Guide Latches	Differential Pair Array Male	0.76 Ám	30 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-010-05.0-L-DV-L-TR	0.8 mm	0.031 in	Gold	2	20	8.91 mm	0.351 in	Surface Mount	Board Guide Latches	Header Center Strip Contacts	0.25 Ám	10 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-010-09.0-L-DV-K-TR	0.8 mm	0.031 in	Gold	2	20	12.91 mm	0.508 in	Surface Mount	Board Guide Pick and Place	Header Center Strip Contacts	0.25 Ám	10 Áin	14 mm 16 mm 19 mm
Samtec Inc. ERM8-010-05.0-S-DV-L-K-TR	0.8 mm	0.031 in	Gold	2	20	8.91 mm	0.351 in	Surface Mount	Board Guide Latches Pick and Place	Header Center Strip Contacts	0.76 Ám	30 Áin	10 mm 12 mm 15 mm
Samtec Inc. ERM8-010-01-S-D-EM2-DS-TR	0.8 mm	0.031 in	Gold	2	20			Board Edge Straddle Mount		Differential Pair Array Male	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ERM8-010 Series

20 Position Connector Header, Center Strip Contacts Surface Mount Gold
