MS272491B1

Active

Keystone Electronics

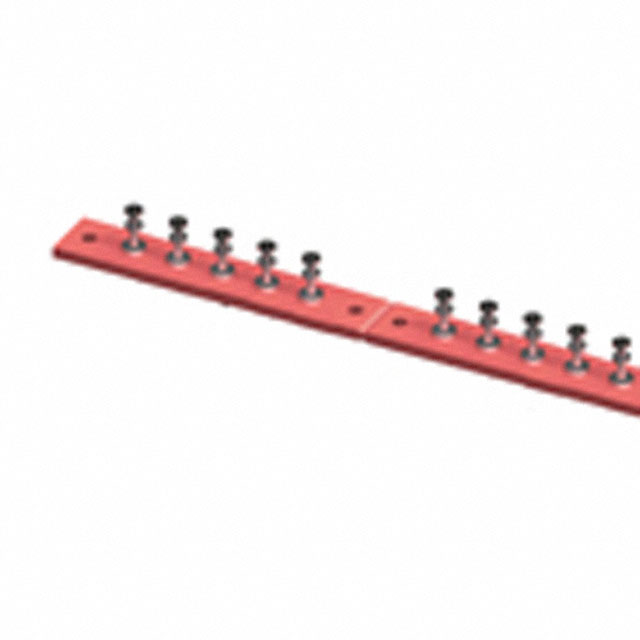

TURRET BOARD 5POS 0.375" SINGLE

Search across all available documentation for this part.

Active

Keystone Electronics

TURRET BOARD 5POS 0.375" SINGLE

Technical Specifications

Parameters and characteristics for this part

Specification	MS272491B1

Board Size [x]	2.625 "
Board Size [x]	66.7 mm
Board Size [y]	0.5 "
Board Size [y]	12.7 mm
Board Size [z]	0.125 "
Board Size [z]	3.18 mm
Contact Finish	Tin
Contact Material	Brass
Material - Board	Glass Epoxy
Mounting Hole Diameter [diameter]	0.12 in
Mounting Hole Diameter [diameter]	3.05 mm
Number of Rows	1
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Type	Double Turret, Turret, Single End
Type	Turret Board

Part	Material - Board	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Terminal Type	Pitch [x]	Pitch [x]	Board Size [x]	Board Size [z]	Board Size [y]	Board Size [z]	Board Size [y]	Board Size [x]	Number of Positions	Number of Rows	Contact Finish	Contact Material	Type
Keystone Electronics MS272491E2	Glass Epoxy	0.12 in	3.05 mm	Double Turret Single End Turret	9.53 mm	0.375 in	5.25 in	3.18 mm	0.5 "	0.125 "	12.7 mm	133.35 mm	10	1	Tin	Brass	Turret Board Scored
Keystone Electronics MS272491B4	Glass Epoxy	0.12 in	3.05 mm	Double Turret Single End Turret	9.53 mm	0.375 in	10.5 "	3.18 mm	0.5 "	0.125 "	12.7 mm	266.7 mm	20	1	Tin	Brass	Turret Board Scored
Keystone Electronics MS272491B3	Glass Epoxy	0.12 in	3.05 mm	Double Turret Single End Turret	9.53 mm	0.375 in	7.875 "	3.18 mm	0.5 "	0.125 "	12.7 mm	200.03 mm	15	1	Tin	Brass	Turret Board Scored
Keystone Electronics MS272491B1	Glass Epoxy	0.12 in	3.05 mm	Double Turret Single End Turret	9.53 mm	0.375 in	2.625 "	3.18 mm	0.5 "	0.125 "	12.7 mm	66.7 mm		1	Tin	Brass	Turret Board

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Turret Board 0.375" (9.53mm) Turret, Single End, Double Turret
