MS272491B3
ActiveKeystone Electronics

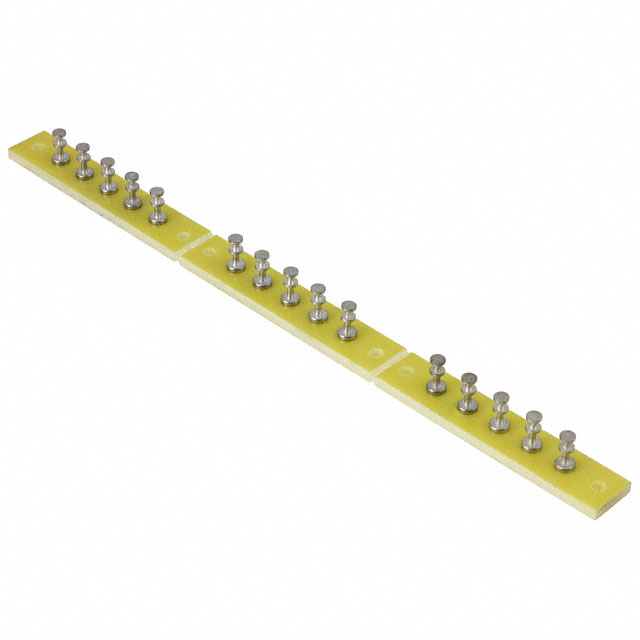

TURRET BOARD 15POS 0.375" SINGLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS272491B3
ActiveKeystone Electronics
TURRET BOARD 15POS 0.375" SINGLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS272491B3 |
|---|---|
| Board Size [x] | 200.03 mm |
| Board Size [x] | 7.875 " |
| Board Size [y] | 0.5 " |
| Board Size [y] | 12.7 mm |
| Board Size [z] | 0.125 " |
| Board Size [z] | 3.18 mm |
| Contact Finish | Tin |
| Contact Material | Brass |
| Material - Board | Glass Epoxy |
| Mounting Hole Diameter [diameter] | 0.12 in |
| Mounting Hole Diameter [diameter] | 3.05 mm |
| Number of Positions | 15 |
| Number of Rows | 1 |
| Pitch [x] | 9.53 mm |
| Pitch [x] | 0.375 in |
| Terminal Type | Double Turret, Turret, Single End |
| Type | Turret Board, Scored |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.15 | |
| 25 | $ 21.75 | |||
| 100 | $ 20.56 | |||
| 500 | $ 18.08 | |||
Description
General part information
MS272491 Series
15 Position Turret Board, Scored 0.375" (9.53mm) Turret, Single End, Double Turret
