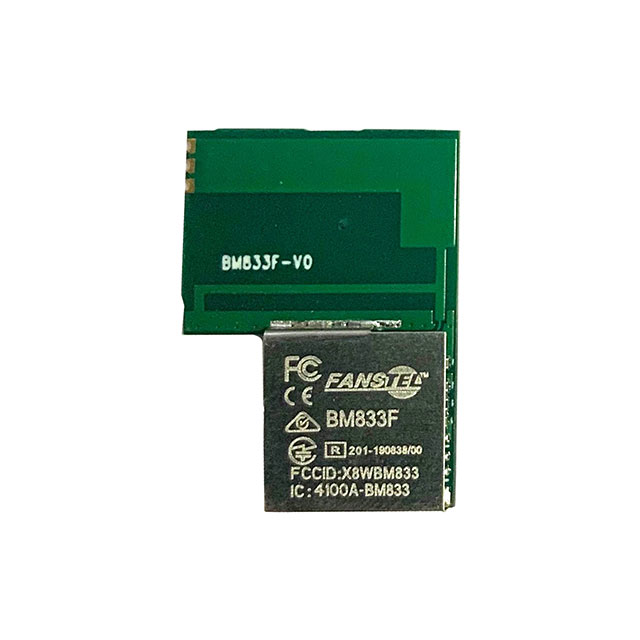

BM833F
ActiveFanstel Corp.
RF TXRX MOD 802.15.4 BT TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BM833F | BM833 Series |
|---|---|---|
| Antenna Type | PCB Trace | PCB Trace, Antenna Not Included, U.FL |
| Contents | - | Board(s) |
| Current - Transmitting | 4.6 mA | 4.6 mA |
| Data Rate | 2 Mbps | 2 Mbps |
| For Use With/Related Products | - | BM833A |
| Frequency | 2.4 GHz | 2.4 GHz |
| Memory Size | - | 24 - 192 kB |
| Memory Size [custom] | 512 kB | 512 kB |
| Memory Size [custom] | 128 kB | 128 kB |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 105 ░C | 85 - 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 68-SMD Module | 68-SMD Module, 47-SMD Module |
| Power - Output | 8 dBm | 4.1 - 8 dBm |
| Protocol | Bluetooth v5.1 | Bluetooth v5.1 |
| RF Family/Standard | Bluetooth, 802.15.4 | Bluetooth, 802.15.4 |
| Sensitivity | -104 dBm | -104 dBm |
| Serial Interfaces | GPIO, I2C, PWM, SPI, UART, ADC | GPIO, I2C, PWM, SPI, UART, ADC |
| Supplied Contents | - | Board(s) |
| Type | - | Transceiver, Bluetooth® 5.x (BLE) |
| Utilized IC / Part | nRF52833 | nRF52833, nRF52811, BM833A |
| Voltage - Supply [Max] | 5.5 V | 3.6 - 5.5 V |
| Voltage - Supply [Min] | 1.7 V | 1.7 V |
BM833 Series
RF TXRX MOD 802.15.4 BT TH SMD
| Part | RF Family/Standard | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensitivity | Mounting Type | Serial Interfaces | Data Rate | Operating Temperature [Min] | Operating Temperature [Max] | Utilized IC / Part | Antenna Type | Memory Size [custom] | Memory Size [custom] | Current - Transmitting | Package / Case | Protocol | Power - Output | Frequency | Memory Size | For Use With/Related Products | Type | Supplied Contents | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Fanstel Corp. BM833F | 802.15.4, Bluetooth | 5.5 V | 1.7 V | -104 dBm | Surface Mount | ADC, GPIO, I2C, PWM, SPI, UART | 2 Mbps | -40 °C | 105 ░C | nRF52833 | PCB Trace | 512 kB | 128 kB | 4.6 mA | 68-SMD Module | Bluetooth v5.1 | 8 dBm | 2.4 GHz | |||||
Fanstel Corp. BM833 | 802.15.4, Bluetooth | 5.5 V | 1.7 V | -104 dBm | Surface Mount | ADC, GPIO, I2C, PWM, SPI, UART | 2 Mbps | -40 °C | 105 ░C | nRF52833 | PCB Trace | 512 kB | 128 kB | 4.6 mA | 68-SMD Module | Bluetooth v5.1 | 8 dBm | 2.4 GHz | |||||
Fanstel Corp. BM833E | 802.15.4, Bluetooth | 5.5 V | 1.7 V | -104 dBm | Surface Mount | ADC, GPIO, I2C, PWM, SPI, UART | 2 Mbps | -40 °C | 105 ░C | nRF52833 | Antenna Not Included, U.FL | 512 kB | 128 kB | 4.6 mA | 68-SMD Module | Bluetooth v5.1 | 8 dBm | 2.4 GHz | |||||
Fanstel Corp. BM833A | 802.15.4, Bluetooth | 3.6 V | 1.7 V | -104 dBm | Surface Mount | ADC, GPIO, I2C, PWM, SPI, UART | 2 Mbps | -40 °C | 85 °C | nRF52811 | PCB Trace | 4.6 mA | 47-SMD Module | Bluetooth v5.1 | 4.1 dBm | 2.4 GHz | 24 kB, 192 kB | ||||||
Fanstel Corp. EV-BM833A | BM833A | 2.4 GHz | BM833A | Bluetooth® 5.x (BLE), Transceiver | Board(s) | Board(s) |
