EV-BM833A

Active

Fanstel Corp.

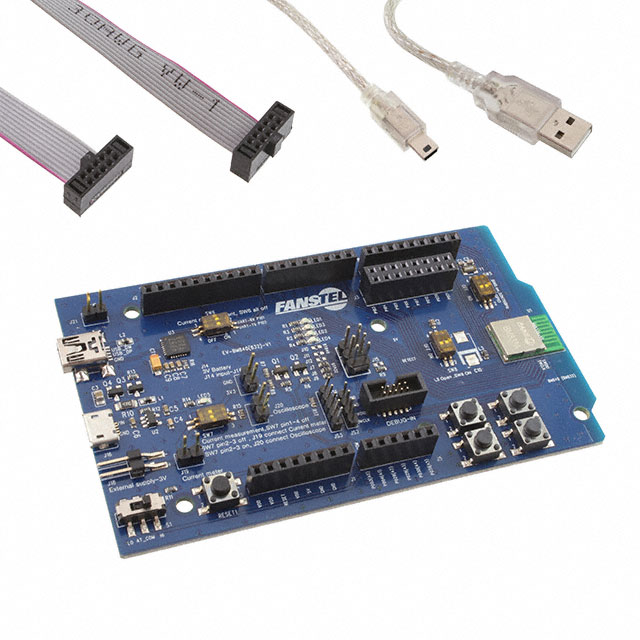

EVALUATION BOARD FOR BM833A

Search across all available documentation for this part.

Active

Fanstel Corp.

EVALUATION BOARD FOR BM833A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 51.27

General part information

BM833A - Transceiver; Bluetooth® 5.x (BLE) 2.4GHz Evaluation Board

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	EV-BM833A	BM833 Series

Antenna Type	-	PCB Trace, Antenna Not Included, U.FL
Contents	Board(s)	Board(s)
Current - Transmitting	-	4.6 mA
Data Rate	-	2 Mbps
For Use With/Related Products	BM833A	BM833A
Frequency	2.4 GHz	2.4 GHz
Memory Size	-	512 kB
Memory Size	-	128 kB
Memory Size	-	24 - 192 kB
Mounting Type	-	Surface Mount
Operating Temperature	-	-40 °C
Operating Temperature	-	85 - 105 ░C
Package / Case	-	68-SMD Module, 47-SMD Module
Power - Output	-	4.1 - 8 dBm
Protocol	-	Bluetooth v5.1
RF Family/Standard	-	Bluetooth, 802.15.4
Sensitivity	-	-104 dBm
Serial Interfaces	-	GPIO, I2C, PWM, SPI, UART, ADC
Supplied Contents	Board(s)	Board(s)
Type	Transceiver, Bluetooth® 5.x (BLE)	Transceiver, Bluetooth® 5.x (BLE)
Utilized IC / Part	BM833A	nRF52833, nRF52811, BM833A
Voltage - Supply	-	3.6 - 5.5 V
Voltage - Supply	-	1.7 V

RF TXRX MOD 802.15.4 BT TH SMD

Part	RF Family/Standard	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity	Mounting Type	Serial Interfaces	Data Rate	Operating Temperature [Min]	Operating Temperature [Max]	Utilized IC / Part	Antenna Type	Memory Size [custom]	Memory Size [custom]	Current - Transmitting	Package / Case	Protocol	Power - Output	Frequency	Memory Size	For Use With/Related Products	Type	Supplied Contents	Contents
Fanstel Corp. BM833F	802.15.4, Bluetooth	5.5 V	1.7 V	-104 dBm	Surface Mount	ADC, GPIO, I2C, PWM, SPI, UART	2 Mbps	-40 °C	105 ░C	nRF52833	PCB Trace	512 kB	128 kB	4.6 mA	68-SMD Module	Bluetooth v5.1	8 dBm	2.4 GHz
Fanstel Corp. BM833	802.15.4, Bluetooth	5.5 V	1.7 V	-104 dBm	Surface Mount	ADC, GPIO, I2C, PWM, SPI, UART	2 Mbps	-40 °C	105 ░C	nRF52833	PCB Trace	512 kB	128 kB	4.6 mA	68-SMD Module	Bluetooth v5.1	8 dBm	2.4 GHz
Fanstel Corp. BM833E	802.15.4, Bluetooth	5.5 V	1.7 V	-104 dBm	Surface Mount	ADC, GPIO, I2C, PWM, SPI, UART	2 Mbps	-40 °C	105 ░C	nRF52833	Antenna Not Included, U.FL	512 kB	128 kB	4.6 mA	68-SMD Module	Bluetooth v5.1	8 dBm	2.4 GHz
Fanstel Corp. BM833A	802.15.4, Bluetooth	3.6 V	1.7 V	-104 dBm	Surface Mount	ADC, GPIO, I2C, PWM, SPI, UART	2 Mbps	-40 °C	85 °C	nRF52811	PCB Trace			4.6 mA	47-SMD Module	Bluetooth v5.1	4.1 dBm	2.4 GHz	24 kB, 192 kB
Fanstel Corp. EV-BM833A										BM833A								2.4 GHz		BM833A	Bluetooth® 5.x (BLE), Transceiver	Board(s)	Board(s)
