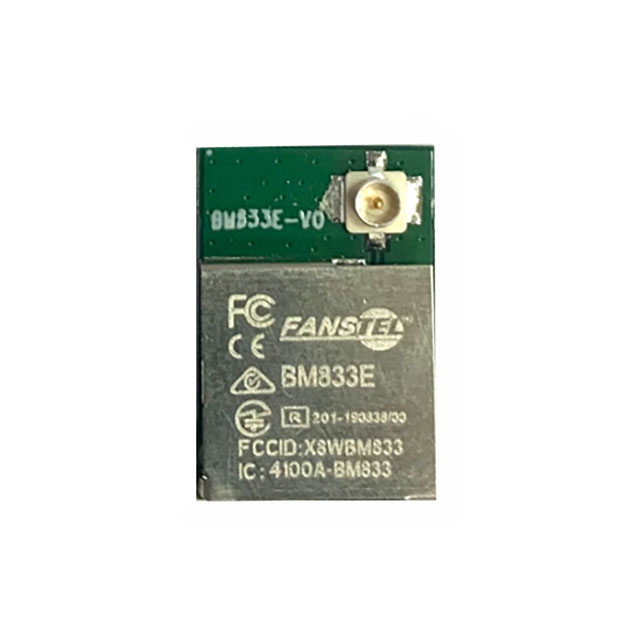

BM833E

Active

Fanstel Corp.

RF TXRX MOD 802.15.4 BTU.FL SMD

Search across all available documentation for this part.

Active

Fanstel Corp.

RF TXRX MOD 802.15.4 BTU.FL SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

802.15.4, Bluetooth Bluetooth v5.1 Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BM833E	BM833 Series

Antenna Type	Antenna Not Included, U.FL	PCB Trace, Antenna Not Included, U.FL
Contents	-	Board(s)
Current - Transmitting	4.6 mA	4.6 mA
Data Rate	2 Mbps	2 Mbps
For Use With/Related Products	-	BM833A
Frequency	2.4 GHz	2.4 GHz
Memory Size	-	24 - 192 kB
Memory Size [custom]	512 kB	512 kB
Memory Size [custom]	128 kB	128 kB
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	68-SMD Module	68-SMD Module, 47-SMD Module
Power - Output	8 dBm	4.1 - 8 dBm
Protocol	Bluetooth v5.1	Bluetooth v5.1
RF Family/Standard	Bluetooth, 802.15.4	Bluetooth, 802.15.4
Sensitivity	-104 dBm	-104 dBm
Serial Interfaces	GPIO, I2C, PWM, SPI, UART, ADC	GPIO, I2C, PWM, SPI, UART, ADC
Supplied Contents	-	Board(s)
Type	-	Transceiver, Bluetooth® 5.x (BLE)
Utilized IC / Part	nRF52833	nRF52833, nRF52811, BM833A
Voltage - Supply [Max]	5.5 V	3.6 - 5.5 V
Voltage - Supply [Min]	1.7 V	1.7 V

RF TXRX MOD 802.15.4 BT TH SMD

Part	RF Family/Standard	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity	Mounting Type	Serial Interfaces	Data Rate	Operating Temperature [Min]	Operating Temperature [Max]	Utilized IC / Part	Antenna Type	Memory Size [custom]	Memory Size [custom]	Current - Transmitting	Package / Case	Protocol	Power - Output	Frequency	Memory Size	For Use With/Related Products	Type	Supplied Contents	Contents
Fanstel Corp. BM833F	802.15.4, Bluetooth	5.5 V	1.7 V	-104 dBm	Surface Mount	ADC, GPIO, I2C, PWM, SPI, UART	2 Mbps	-40 °C	105 ░C	nRF52833	PCB Trace	512 kB	128 kB	4.6 mA	68-SMD Module	Bluetooth v5.1	8 dBm	2.4 GHz
Fanstel Corp. BM833	802.15.4, Bluetooth	5.5 V	1.7 V	-104 dBm	Surface Mount	ADC, GPIO, I2C, PWM, SPI, UART	2 Mbps	-40 °C	105 ░C	nRF52833	PCB Trace	512 kB	128 kB	4.6 mA	68-SMD Module	Bluetooth v5.1	8 dBm	2.4 GHz
Fanstel Corp. BM833E	802.15.4, Bluetooth	5.5 V	1.7 V	-104 dBm	Surface Mount	ADC, GPIO, I2C, PWM, SPI, UART	2 Mbps	-40 °C	105 ░C	nRF52833	Antenna Not Included, U.FL	512 kB	128 kB	4.6 mA	68-SMD Module	Bluetooth v5.1	8 dBm	2.4 GHz
Fanstel Corp. BM833A	802.15.4, Bluetooth	3.6 V	1.7 V	-104 dBm	Surface Mount	ADC, GPIO, I2C, PWM, SPI, UART	2 Mbps	-40 °C	85 °C	nRF52811	PCB Trace			4.6 mA	47-SMD Module	Bluetooth v5.1	4.1 dBm	2.4 GHz	24 kB, 192 kB
Fanstel Corp. EV-BM833A										BM833A								2.4 GHz		BM833A	Bluetooth® 5.x (BLE), Transceiver	Board(s)	Board(s)
