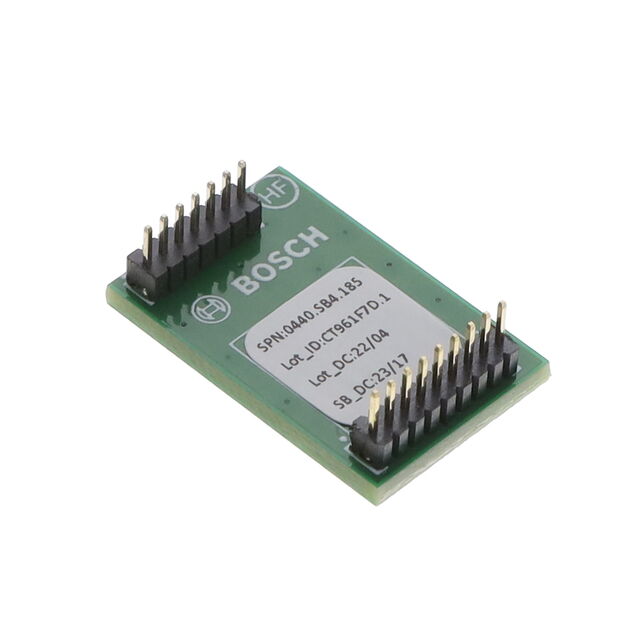

SHUTTLE BOARD 3.0 BME280

Active

Bosch Sensortec

Search across all available documentation for this part.

Active

Bosch Sensortec

SHUTTLE BOARD 3.0 BME280

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.88

General part information

BME280 Humidity, Pressure, Temperature Sensor Platform Evaluation Expansion Board

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SHUTTLE BOARD 3.0 BME280	BME280 Series

Accuracy	-	3 %
Contents	Board(s)	Board(s)
Function	Pressure, Temperature, Humidity	Pressure, Temperature, Humidity
Humidity Range	-	0 % RH
Humidity Range	-	100 % RH
Interconnect System	Shuttle Board 3.0 Socket	Shuttle Board 3.0 Socket
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output	-	16 b
Output Type	-	I2C, SPI
Package / Case	-	8-VFLGA
Primary Attributes [Max]	1100 hPa, 100 % RH, 85 °C	85 - 1100 hPa
Primary Attributes [Min]	300 hPa, 0 % RH, -40 °C	-40 - 300 hPa
Response Time	-	1 s
Secondary Attributes	I2C/SPI Interface(s)	I2C/SPI Interface(s)
Sensor Type	-	Humidity, Temperature, Pressure
Supplier Device Package	-	8-LGA (2.5x2.5)
Type	Sensor	Sensor
Utilized IC / Part	BME280	BME280
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.71 V

SHUTTLE BOARD 3.0 BME280

Part	Secondary Attributes	Primary Attributes [Max]	Primary Attributes [Min]	Utilized IC / Part	Function	Interconnect System	Type	Contents	Package / Case	Humidity Range [Min]	Humidity Range [Max]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Output Type	Sensor Type	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Output
Bosch Sensortec SHUTTLE BOARD 3.0 BME280	I2C/SPI Interface(s)	85 °C, 100 % RH, 1100 hPa	-40 °C, 0 % RH, 300 hPa	BME280	Humidity, Pressure, Temperature	Shuttle Board 3.0 Socket	Sensor	Board(s)
Bosch Sensortec BME280-SHUTL				BME280	Humidity, Pressure, Temperature		Sensor	Board(s)
Bosch Sensortec BME280									8-VFLGA	0 % RH	100 % RH	Surface Mount	3.6 V	1.71 V	8-LGA (2.5x2.5)	I2C, SPI	Humidity, Pressure, Temperature	3 %	85 °C	-40 °C	1 s	16 b
