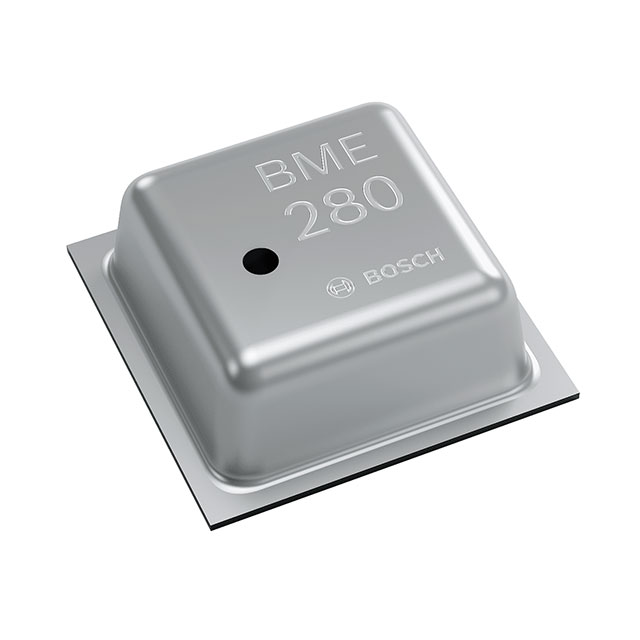

BME280

Active

Bosch Sensortec

SENSOR PRESSURE HUMIDITY TEMP

Search across all available documentation for this part.

Active

Bosch Sensortec

SENSOR PRESSURE HUMIDITY TEMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BME280	BME280 Series

Accuracy	3 %	3 %
Contents	-	Board(s)
Function	-	Pressure, Temperature, Humidity
Humidity Range [Max]	100 % RH	100 % RH
Humidity Range [Min]	0 % RH	0 % RH
Interconnect System	-	Shuttle Board 3.0 Socket
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	16 b	16 b
Output Type	I2C, SPI	I2C, SPI
Package / Case	8-VFLGA	8-VFLGA
Primary Attributes	-	85 - 1100 hPa
Primary Attributes	-	-40 - 300 hPa
Response Time	1 s	1 s
Secondary Attributes	-	I2C/SPI Interface(s)
Sensor Type	Humidity, Temperature, Pressure	Humidity, Temperature, Pressure
Supplier Device Package	8-LGA (2.5x2.5)	8-LGA (2.5x2.5)
Type	-	Sensor
Utilized IC / Part	-	BME280
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.71 V	1.71 V

SHUTTLE BOARD 3.0 BME280

Part	Secondary Attributes	Primary Attributes [Max]	Primary Attributes [Min]	Utilized IC / Part	Function	Interconnect System	Type	Contents	Package / Case	Humidity Range [Min]	Humidity Range [Max]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Output Type	Sensor Type	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Response Time	Output
Bosch Sensortec SHUTTLE BOARD 3.0 BME280	I2C/SPI Interface(s)	85 °C, 100 % RH, 1100 hPa	-40 °C, 0 % RH, 300 hPa	BME280	Humidity, Pressure, Temperature	Shuttle Board 3.0 Socket	Sensor	Board(s)
Bosch Sensortec BME280-SHUTL				BME280	Humidity, Pressure, Temperature		Sensor	Board(s)
Bosch Sensortec BME280									8-VFLGA	0 % RH	100 % RH	Surface Mount	3.6 V	1.71 V	8-LGA (2.5x2.5)	I2C, SPI	Humidity, Pressure, Temperature	3 %	85 °C	-40 °C	1 s	16 b

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Humidity, Pressure, Temperature 0 ~ 100% RH I2C, SPI ±3% 1 s Surface Mount
