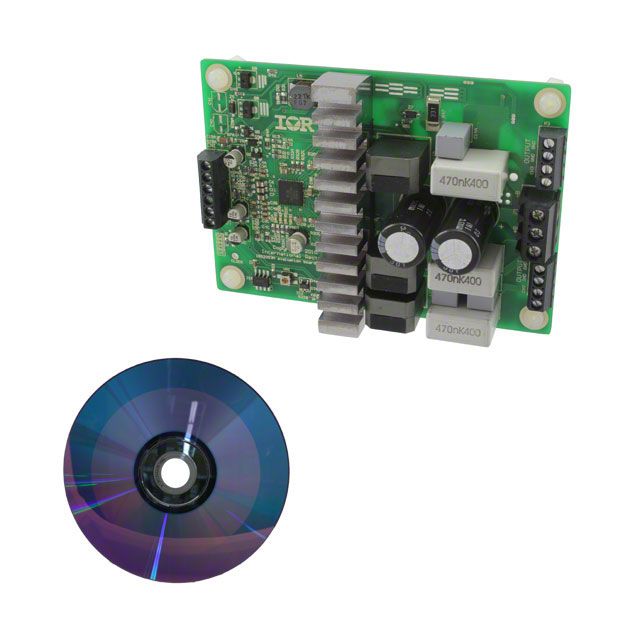

IRAUDAMP11

Obsolete

Infineon Technologies

BOARD REF DESIGN 3CH AUDIO AMP

Search across all available documentation for this part.

Obsolete

Infineon Technologies

BOARD REF DESIGN 3CH AUDIO AMP

Technical Specifications

Parameters and characteristics for this part

Specification	IRAUDAMP11

Board Type	Fully Populated
Max Output Power x Channels @ Load	170 W, 4 Ohm
Max Output Power x Channels @ Load [custom]	3
Output Type	3-Channel
Supplied Contents	Board(s)
Utilized IC / Part	IRS2053M, IRF6665
Voltage - Supply	25 V
Voltage - Supply [Max]	35 V

Part	Output Type	Utilized IC / Part	Board Type	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Voltage - Supply [Max]	Voltage - Supply	Supplied Contents	Voltage - Supply [Min]	Max Output Power x Channels @ Load [custom]
Infineon Technologies IRAUDAMP8	4-Channel (Quad)	IRF6665 IRS2093M	Fully Populated	4	170 W	35 V	25 V	Board(s)
Infineon Technologies IRAUDAMP10	2-Channel (Stereo)	IRF6775 IRS2052M	Fully Populated	2	370 W	50 VDC		Board(s)	-25 V
Infineon Technologies IRAUDAMP4	2-Channel (Stereo)	IRF6645 IRS20955	Fully Populated		2 channels 4 Ohm 170 W	35 V	25 V	Board(s)
Infineon Technologies IRAUDAMP7D	2-Channel (Stereo)	IRS2092	Fully Populated		500 W	60 V		Board(s)	-45 V	2
Infineon Technologies IRAUDAMP11	3-Channel	IRF6665 IRS2053M	Fully Populated		4 Ohm 170 W	35 V	25 V	Board(s)		3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 301.29

General part information

IRF6665, IRS2053M - 3-Channel Output Class D Audio Amplifier Evaluation Board
