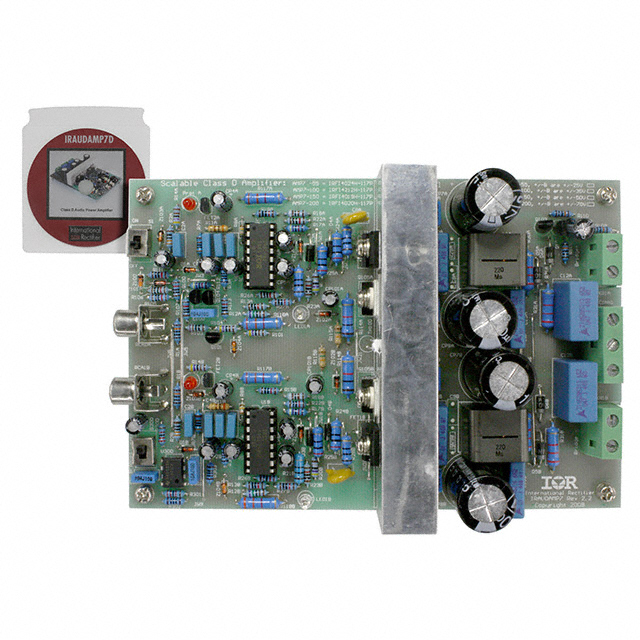

IRAUDAMP7D

Obsolete

Infineon Technologies

KIT REF DESIGN AUD AMP D IRS2092

Search across all available documentation for this part.

Obsolete

Infineon Technologies

KIT REF DESIGN AUD AMP D IRS2092

Technical Specifications

Parameters and characteristics for this part

Specification	IRAUDAMP7D

Board Type	Fully Populated
Max Output Power x Channels @ Load	500 W
Max Output Power x Channels @ Load [custom]	2
Output Type	2-Channel (Stereo)
Supplied Contents	Board(s)
Utilized IC / Part	IRS2092
Voltage - Supply [Max]	60 V
Voltage - Supply [Min]	-45 V

Part	Output Type	Utilized IC / Part	Board Type	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Voltage - Supply [Max]	Voltage - Supply	Supplied Contents	Voltage - Supply [Min]	Max Output Power x Channels @ Load [custom]
Infineon Technologies IRAUDAMP8	4-Channel (Quad)	IRF6665 IRS2093M	Fully Populated	4	170 W	35 V	25 V	Board(s)
Infineon Technologies IRAUDAMP10	2-Channel (Stereo)	IRF6775 IRS2052M	Fully Populated	2	370 W	50 VDC		Board(s)	-25 V
Infineon Technologies IRAUDAMP4	2-Channel (Stereo)	IRF6645 IRS20955	Fully Populated		2 channels 4 Ohm 170 W	35 V	25 V	Board(s)
Infineon Technologies IRAUDAMP7D	2-Channel (Stereo)	IRS2092	Fully Populated		500 W	60 V		Board(s)	-45 V	2
Infineon Technologies IRAUDAMP11	3-Channel	IRF6665 IRS2053M	Fully Populated		4 Ohm 170 W	35 V	25 V	Board(s)		3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IRS2092 - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board
