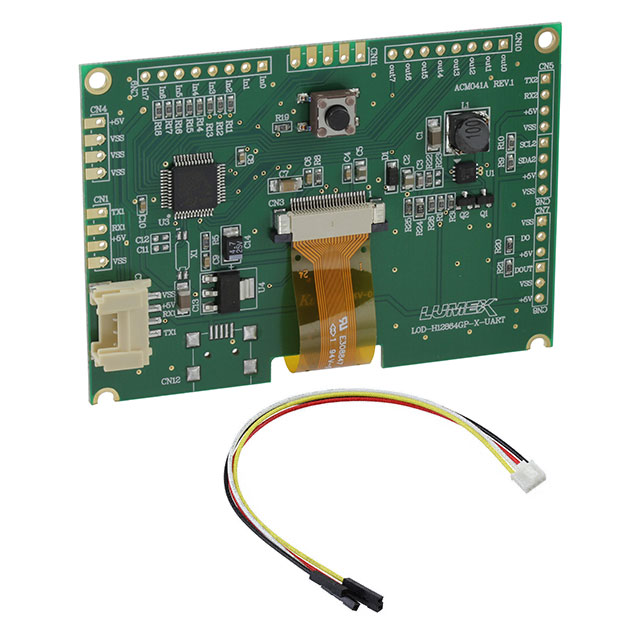

LOD-H12864GP-W-UR

Active

Lumex Opto/Components Inc.

128X64 PIXELS UART OLED MODULE W

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

128X64 PIXELS UART OLED MODULE W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module White OLED - Passive Matrix UART 2.42" (61.47mm) 128 x 64

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

128X64 PIXELS UART OLED MODULE G

Part	Graphics Color	Viewing Area [y]	Viewing Area [z]	Display Type	Background Color	Dot Pitch [y]	Dot Pitch [x]	Diagonal Screen Size	Diagonal Screen Size	Dot Pixels [y]	Dot Pixels [x]	Dot Size [z]	Dot Size [y]	Interface	Dot Size [x]	Viewing Area [x]
Lumex Opto/Components Inc. LOD-H12864GP-G-UR	Green	57.01 mm	29.9 mm	OLED - Passive Matrix	Black	0.43 mm	0.43 mm	61.47 mm	2.42 in	64	128	0.4 mm	0.4 mm	UART
Lumex Opto/Components Inc. LOD-H12864GP-Y-UR	Yellow	57.01 mm	29.9 mm	OLED - Passive Matrix	Black	0.43 mm	0.43 mm	61.47 mm	2.42 in	64	128	0.4 mm	0.4 mm	UART
Lumex Opto/Components Inc. LOD-H12864GP-G	Green	29.49 mm		OLED - Passive Matrix	Black					64	128		4 mm	Parallel, 8-Bit	4 mm	57.01 mm
Lumex Opto/Components Inc. LOD-H12864GP-B-UR	Blue	57.01 mm	29.9 mm	OLED - Passive Matrix	Black	0.43 mm	0.43 mm	61.47 mm	2.42 in	64	128	0.4 mm	0.4 mm	UART
Lumex Opto/Components Inc. LOD-H12864GP-W-UR	White	57.01 mm	29.9 mm	OLED - Passive Matrix	Black	0.43 mm	0.43 mm	61.47 mm	2.42 in	64	128	0.4 mm	0.4 mm	UART
