LOD-H12864GP-G-UR

Active

Lumex Opto/Components Inc.

128X64 PIXELS UART OLED MODULE G

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

128X64 PIXELS UART OLED MODULE G

Technical Specifications

Parameters and characteristics commom to parts in this series

128X64 PIXELS UART OLED MODULE G

Part	Graphics Color	Viewing Area [y]	Viewing Area [z]	Display Type	Background Color	Dot Pitch [y]	Dot Pitch [x]	Diagonal Screen Size	Diagonal Screen Size	Dot Pixels [y]	Dot Pixels [x]	Dot Size [z]	Dot Size [y]	Interface	Dot Size [x]	Viewing Area [x]
Lumex Opto/Components Inc. LOD-H12864GP-G-UR	Green	57.01 mm	29.9 mm	OLED - Passive Matrix	Black	0.43 mm	0.43 mm	61.47 mm	2.42 in	64	128	0.4 mm	0.4 mm	UART
Lumex Opto/Components Inc. LOD-H12864GP-Y-UR	Yellow	57.01 mm	29.9 mm	OLED - Passive Matrix	Black	0.43 mm	0.43 mm	61.47 mm	2.42 in	64	128	0.4 mm	0.4 mm	UART
Lumex Opto/Components Inc. LOD-H12864GP-G	Green	29.49 mm		OLED - Passive Matrix	Black					64	128		4 mm	Parallel, 8-Bit	4 mm	57.01 mm
Lumex Opto/Components Inc. LOD-H12864GP-B-UR	Blue	57.01 mm	29.9 mm	OLED - Passive Matrix	Black	0.43 mm	0.43 mm	61.47 mm	2.42 in	64	128	0.4 mm	0.4 mm	UART
Lumex Opto/Components Inc. LOD-H12864GP-W-UR	White	57.01 mm	29.9 mm	OLED - Passive Matrix	Black	0.43 mm	0.43 mm	61.47 mm	2.42 in	64	128	0.4 mm	0.4 mm	UART

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 29.25

General part information

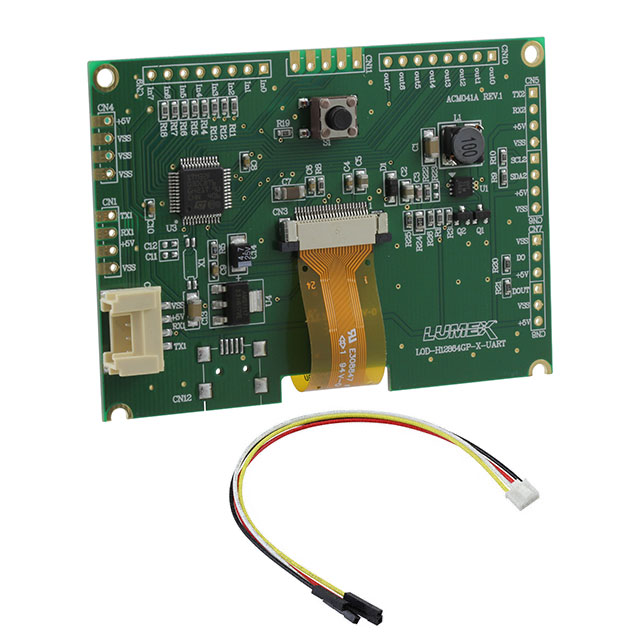

Graphic LCD Display Module Green OLED - Passive Matrix UART 2.42" (61.47mm) 128 x 64

Technical documentation and resources

No documents available
