General part information
742W-15 Series

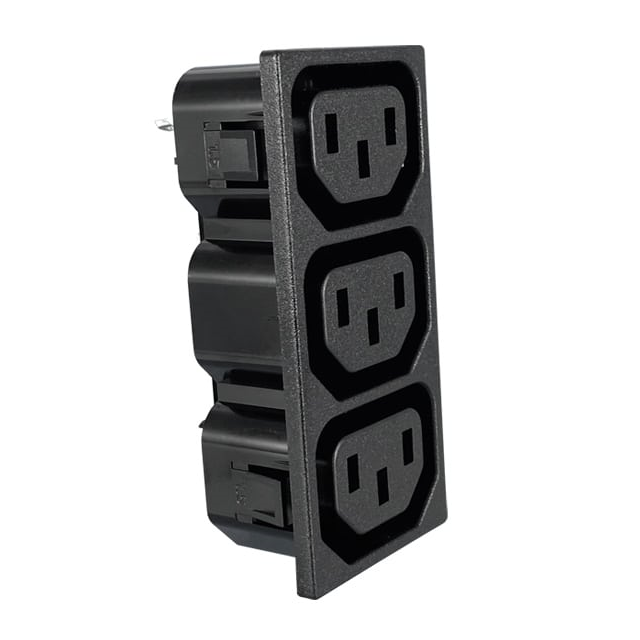

Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/F Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | 742W-15/12 |
|---|---|
| Accomodates a Fuse | No |
| Approval Agency | CSA, TUV, UL |
| Connector Style | IEC 320-2-2/F |
| Connector Type | Receptacle, Female Sockets |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered, Commercial |
| Mounting Type | Panel Mount, Snap-In |
| Number of Connections | 3 |
| Number of Positions (per connection) | 3 |
| Panel Cutout Length | 32.5 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 72 mm |
| Panel Thickness | 0.059 in |
| Termination | Quick Connect - (2.8mm) |
| Termination Probe Tip OD | 0.11 in |
| Voltage Rating - Appliance Inlet | 250 VAC |
