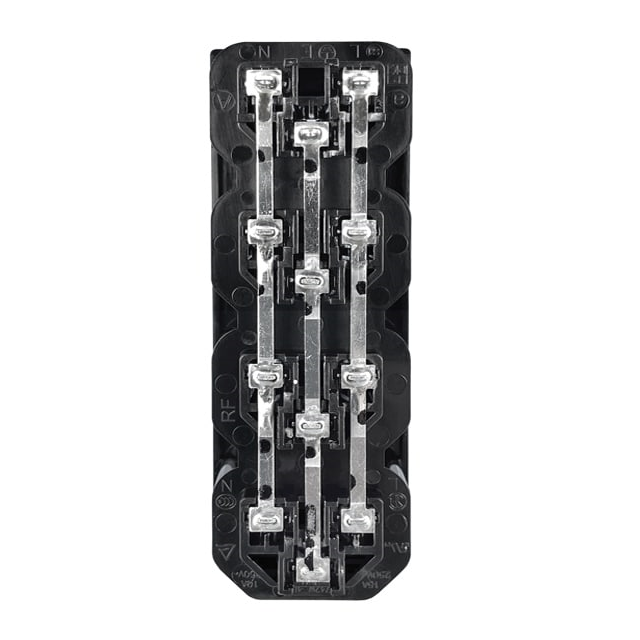

742W-15/20
ActiveQualtek
PWR ENT RCPT IEC320-2-2F PNL QC
Deep-Dive with AI
Search across all available documentation for this part.
742W-15/20
ActiveQualtek
PWR ENT RCPT IEC320-2-2F PNL QC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 742W-15/20 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | CSA, TUV, UL |
| Connector Style | IEC 320-2-2/F |
| Connector Type | Receptacle, Female Sockets |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 3 per connection (4) |
| Panel Thickness [custom] | 0.059 in |
| Panel Thickness [custom] | 1.5 mm |
| Termination | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.77 | |
| 10 | $ 5.19 | |||
| 25 | $ 4.68 | |||
| 50 | $ 4.34 | |||
| 100 | $ 4.03 | |||
| 300 | $ 3.59 | |||
| 500 | $ 3.41 | |||
| 1000 | $ 3.18 | |||
| 2500 | $ 2.92 | |||
Description
General part information
742W-15 Series
Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/F Panel Mount, Snap-In
