General part information

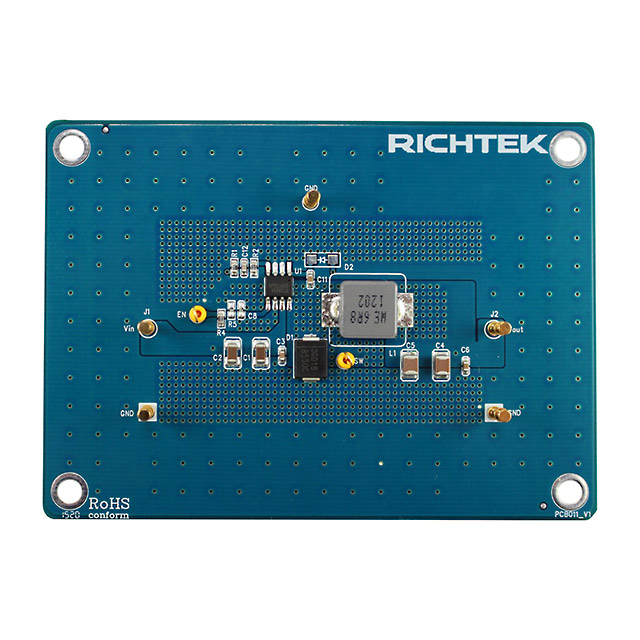

RT2805A - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | EVB_RT2805AGSP | RT2805 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 5 A | 5 A |
| Frequency - Switching | 500 kHz | 500 kHz |
| Function | - | Step-Down |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | Positive |
| Output Type | - | Adjustable |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 0.154 in |
| Package / Case | - | 8-SOIC |
| Package / Case | - | 3.9 mm |
| Regulator Topology | Buck | Buck |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 8-SOP-EP |
| Synchronous Rectifier | - | False |
| Topology | - | Buck |
| Utilized IC / Part | RT2805A | RT2805A |
| Voltage - Input (Max) | - | 36 V |
| Voltage - Input (Min) | - | 5.5 V |
| Voltage - Input [Max] | 36 V | 36 V |
| Voltage - Input [Min] | 5.5 V | 5.5 V |
| Voltage - Output | 2.4 V | 2.4 V |
| Voltage - Output (Max) | - | 26 V |
| Voltage - Output (Min/Fixed) | - | 1.222 V |
EVAL MODULE FOR RT2805AGSP
| Part | Main Purpose | Current - Output | Supplied Contents | Voltage - Output | Frequency - Switching | Outputs and Type | Outputs and Type | Board Type | Regulator Topology | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Output Configuration | Voltage - Input (Min) [Min] | Function | Voltage - Output (Min/Fixed) | Voltage - Output (Max) [Max] | Synchronous Rectifier | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Input (Max) [Max] | Supplier Device Package | Topology | Output Type | Package / Case | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Richtek USA Inc. EVB_RT2805AGSP | DC/DC, Step Down | 5 A | Board(s) | 2.4 V | 500 kHz | Non-Isolated | 1 | Fully Populated | Buck | RT2805A | 5.5 V | 36 V | |||||||||||||||||
Richtek USA Inc. RT2805AGSP | 5 A | 500 kHz | Positive | 5.5 V | Step-Down | 1.222 V | 26 V | 1 | 85 °C | -40 °C | Surface Mount | 36 V | 8-SOP-EP | Buck | Adjustable | 0.154 in | 8-SOIC | 3.9 mm |
