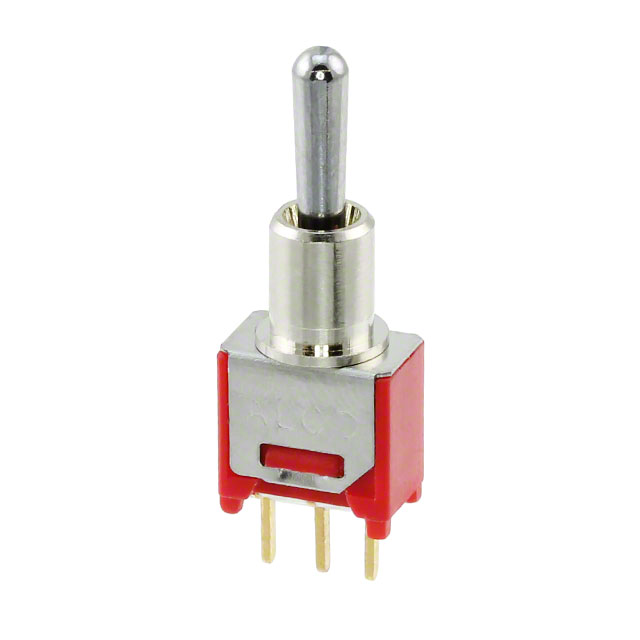

TMS3T5B2M2RE
ActiveTE Connectivity Raychem Cable Protection
SWITCH TOGGLE SPDT 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMS3T5B2M2RE |
|---|---|
| Actuator Length [x] | 7.62 mm |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | SPDT |
| Current Rating (Amps) | 0.4 VA |
| Features | Process Sealed |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-Off-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.75 | |
| 10 | $ 5.13 | |||
| 25 | $ 4.85 | |||
| 50 | $ 4.68 | |||
| 100 | $ 4.46 | |||
| 300 | $ 4.26 | |||
| 500 | $ 3.88 | |||
| 1000 | $ 3.68 | |||
Description
General part information
TMS3T Series
Toggle Switch SPDT Through Hole
