TMS3T3B1M1QE

Obsolete

TE Connectivity Raychem Cable Protection

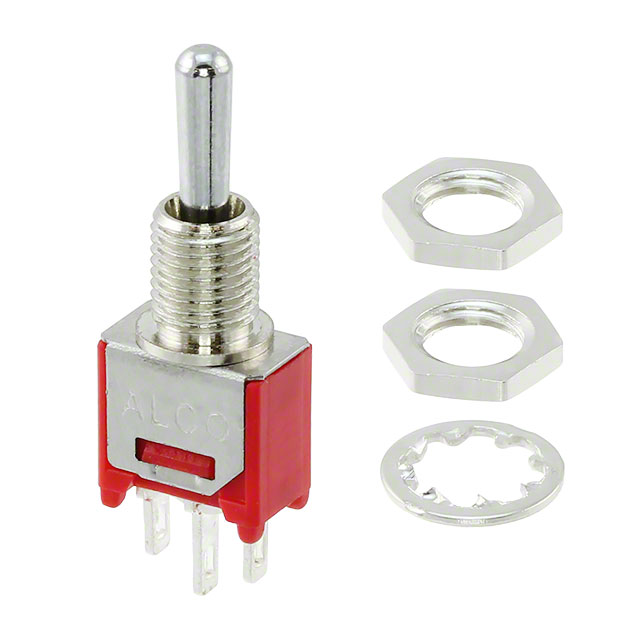

SWITCH TOGGLE SPDT 3A 120V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH TOGGLE SPDT 3A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	TMS3T3B1M1QE

Actuator Type	Standard Round
Bushing Thread	10-48
Circuit	SPDT
Current Rating (Amps)	3 A
Features	Process Sealed
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	4.95 mm
Switch Function	On-Off-On
Termination Style	Solder Lug
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

Part	Voltage Rating - DC	Voltage Rating - AC	Switch Function	Actuator Type	Panel Cutout Dimensions [diameter]	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Bushing Thread	Features	Circuit	Actuator Length [x]	Mounting Type
TE Connectivity Raychem Cable Protection TMS3T3B1M2RE	20 V	20 V	On-Off-On	Standard Round	4.95 mm	Non-Illuminated	-30 ░C	85 °C	0.4 VA	PC Pin	10-48	Process Sealed	SPDT
TE Connectivity Raychem Cable Protection TMS3T3B1M1QE	28 V	120 V	On-Off-On	Standard Round	4.95 mm	Non-Illuminated	-30 ░C	85 °C	3 A	Solder Lug	10-48	Process Sealed	SPDT
TE Connectivity Raychem Cable Protection TMS3T5B2M2RE	20 V	20 V	On-Off-On	Standard Round		Non-Illuminated	-30 ░C	85 °C	0.4 VA	PC Pin	Unthreaded	Process Sealed	SPDT	7.62 mm	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
