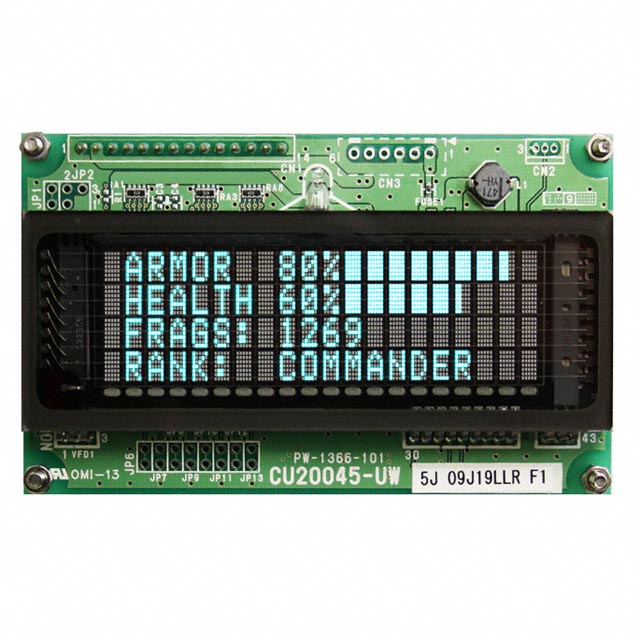

VK204-25-422

Active

Matrix Orbital

VF CHARACTER DISPLAY 20X4 RS422

Search across all available documentation for this part.

Active

Matrix Orbital

VF CHARACTER DISPLAY 20X4 RS422

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 184.11

General part information

Vacuum Fluorescent Display (VFD) 20 x 4 Character 4.75V ~ 5.25V RS-422 98.00mm x 60.00mm x 30.50mm

Technical documentation and resources

Parameters and characteristics commom to parts in this series

VFD ALPHA/NUM DISPLAY 20X4

Part	Display Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Format [y]	Display Format [x]	Operating Temperature [Min]	Operating Temperature [Max]	Character Size [y]	Character Size [z]	Interface	Format [x]	Format [y]	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Viewing Area [y]	Viewing Area [x]	Number of Dots [custom]	Number of Dots [custom]
Matrix Orbital VK204-25-VPT	Character	9 V	35 V	4	20	-20 C	70 °C	2.4 mm	4.7 mm	Serial	5 Dots	7	98 mm	60 mm	27.7 mm	20.9 mm	70.8 mm
Matrix Orbital VK204-25-USB-E	Character	4.75 V	5.25 V	4	20	-40 °C	85 °C	2.4 mm	4.7 mm	USB	5 Dots	7	98 mm	60 mm	30.5 mm	20.9 mm	70.8 mm	100	28
Matrix Orbital VK204-25-422-E	Character	4.75 V	5.25 V	4	20	-40 °C	85 °C	2.4 mm	4.7 mm		5 Dots	7	98 mm	60 mm	30.5 mm	20.9 mm	70.8 mm	100	28
Matrix Orbital VK204-25-USB	Character	4.75 V	5.25 V	4	20	-20 C	70 °C	2.4 mm	4.7 mm	USB	5 Dots	7	98 mm	60 mm	30.5 mm	20.9 mm	70.8 mm
Matrix Orbital VK204-25-422-VPT	Character	9 V	35 V	4	20	-20 C	70 °C	4.7 mm	2.4 mm				98 mm	60 mm	28.98 mm	20.9 mm	70.8 mm
Matrix Orbital VK204-25-VPT-E	Character	9 V	15 V	2	20	-40 °C	85 °C	4.7 mm	2.4 mm	I2C			98 mm	60 mm	28.98 mm	20.9 mm	70.8 mm
Matrix Orbital VK204-25	Character			4	20	-20 C	70 °C	2.4 mm	4.7 mm	Serial	5 Dots	7	98 mm	60 mm	27.7 mm	20.9 mm	70.8 mm
Matrix Orbital VK204-25-E	Character	9 V	15 V	4	20	-40 °C	85 °C	2.4 mm	4.7 mm	Serial	5 Dots	7	98 mm	60 mm	27.7 mm	20.9 mm	70.8 mm
Matrix Orbital VK204-25-422	Character	4.75 V	5.25 V	4	20	-20 C	70 °C	2.4 mm	4.7 mm		5 Dots	7	98 mm	60 mm	30.5 mm	20.9 mm	70.8 mm
Matrix Orbital VK204-25-422-VPT-E	Character	9 V	35 V	4	20	-20 C	70 °C	4.7 mm	2.4 mm				98 mm	60 mm	28.98 mm	20.9 mm	70.8 mm
