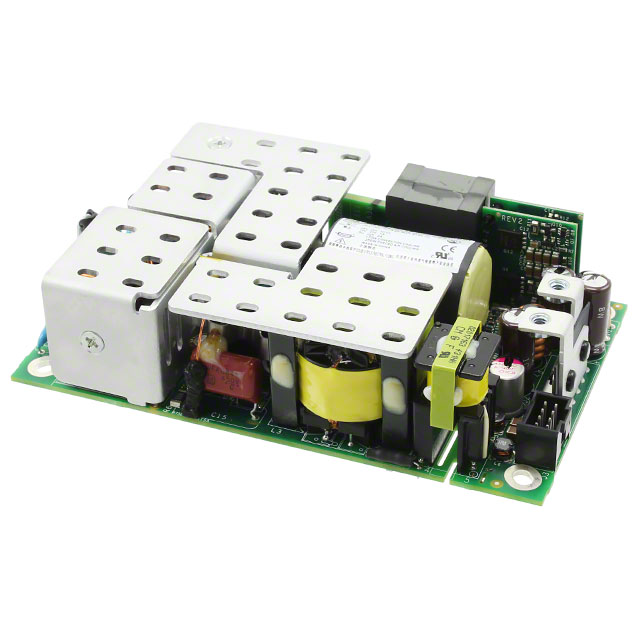

MVAC250-24AFT
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 24V 170W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MVAC250-24AFT
ActiveMurata Power Solutions Inc.
AC/DC CONVERTER 24V 170W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MVAC250-24AFT | MVAC250 Series |
|---|---|---|
| Applications | ITE (Commercial), Medical | ITE (Commercial), Medical |
| Approval Agency | CB, CE, cURus, VDE | CB, CE, cURus, VDE, CCC |
| Current - Output 1 | 10.4 A | 5.2 - 20.8 A |
| Current - Output 2 | - | 1 A |
| Current - Output 3 | - | 2 A |
| Efficiency | 93 % | 93 % |
| Features | Universal Input, Remote Sense, Hot Swappable, Remote On/Off, Standby Output, PFC, Load Sharing | Universal Input, Remote Sense, Hot Swappable, Remote On/Off, Standby Output, PFC, Load Sharing, DC Input Capable |
| Minimum Load Required | True | True |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Outputs | 1 | 1 - 3 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -10 °C | -10 °C |
| Power (Watts) | 170 W | 170 W |
| Power (Watts) | 250 W | 250 W |
| Size / Dimension | - | 38.1 mm |
| Size / Dimension | - | 76.2 mm |
| Size / Dimension [x] | 127 mm | 127 mm |
| Size / Dimension [x] | 5 in | 5 in |
| Size / Dimension [y] | 3 " | 3 " |
| Size / Dimension [y] | 76.2 mm | 76.2 mm |
| Size / Dimension [z] | 1.4 " | 1.4 - 1.5 " |
| Size / Dimension [z] | 35.6 mm | 35.6 mm |
| Type | Open Frame | Open Frame |
| Voltage - Input [Max] | 264 VAC | 264 VAC |
| Voltage - Input [Min] | 90 VAC | 90 VAC |
| Voltage - Isolation | 4000 V | 4000 V |
| Voltage - Output 1 | 24 V | 12 - 50 V |
| Voltage - Output 2 | - | 12 V |
| Voltage - Output 3 | - | 5 V |
MVAC250 Series
Switching Power Supplies AC/DC 250W, 12V, 12VIAFO, 5VSTDBY
| Part | Applications | Approval Agency | Minimum Load Required | Voltage - Output 1 | Mounting Type | Voltage - Isolation | Efficiency | Features | Type | Power (Watts) | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Number of Outputs | Current - Output 2 | Voltage - Output 2 | Voltage - Output 3 | Current - Output 3 | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. MVAC250-24AFT | ITE (Commercial), Medical | CB, CE, cURus, VDE | 24 V | Chassis Mount | 4000 V | 93 % | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Open Frame | 170 W | 250 W | -10 °C | 70 °C | 10.4 A | 90 VAC | 264 VAC | 127 mm | 3 " | 1.4 " | 5 in | 76.2 mm | 35.6 mm | 1 | |||||||
Murata Power Solutions Inc. MVAC250-12AFD | ITE (Commercial), Medical | CB, CCC, CE, cURus, VDE | 12 V | Chassis Mount | 4000 V | 93 % | DC Input Capable, Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Open Frame | 170 W | 250 W | -10 °C | 70 °C | 20.8 A | 90 VAC | 264 VAC | 127 mm | 3 " | 1.5 " | 5 in | 3 | 1 A | 12 V | 5 V | 2 A | 38.1 mm | 76.2 mm | |||
Murata Power Solutions Inc. MVAC250-12F | ITE (Commercial), Medical | CB, CCC, CE, cURus, VDE | 12 V | Chassis Mount | 4000 V | 93 % | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Open Frame | 170 W | 250 W | -10 °C | 70 °C | 20.8 A | 90 VAC | 264 VAC | 127 mm | 3 " | 1.5 " | 5 in | 2 | 1 A | 12 V | 38.1 mm | 76.2 mm | |||||
Murata Power Solutions Inc. MVAC250-48F | ITE (Commercial), Medical | CB, CCC, CE, cURus, VDE | 50 V | Chassis Mount | 4000 V | 93 % | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Open Frame | 170 W | 250 W | -10 °C | 70 °C | 5.2 A | 90 VAC | 264 VAC | 127 mm | 3 " | 1.5 " | 5 in | 2 | 1 A | 12 V | 38.1 mm | 76.2 mm | |||||
Murata Power Solutions Inc. MVAC250-48AFD | ITE (Commercial), Medical | CB, CCC, CE, cURus, VDE | 50 V | Chassis Mount | 4000 V | 93 % | Hot Swappable, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Open Frame | 170 W | 250 W | -10 °C | 70 °C | 5.2 A | 90 VAC | 264 VAC | 127 mm | 3 " | 1.5 " | 5 in | 3 | 1 A | 12 V | 5 V | 2 A | 38.1 mm | 76.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MVAC250 Series
Switching Power Supplies AC/DC 250W, 12V, 12VIAFO, 5VSTDBY
