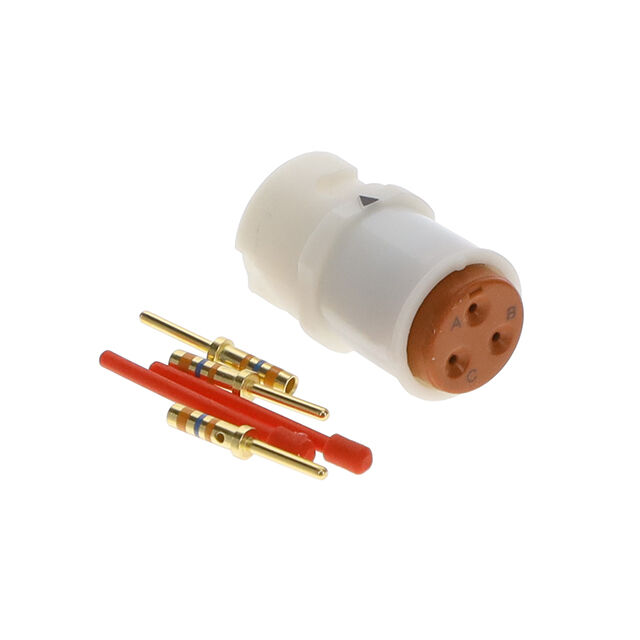

SJS862401
ActiveAMPHENOL PCD
3 POSITION, SIZE 20 INLINE RECEP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SJS862401
ActiveAMPHENOL PCD
3 POSITION, SIZE 20 INLINE RECEP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SJS862401 | SJS86 Series |
|---|---|---|
| Cable Opening [diameter] | 11.43 mm | 11.43 mm |
| Cable Opening [diameter] | 0.45 in | 0.45 in |
| Color | White | White |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle Housing, Female Sockets, Plug, Plug Housing |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1.27 µm | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin | 50 µin |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | - | Circular |
| Contact Size | - | 22D, 16, 22D (6), 16 (4) |
| Contact Size | - | 4 - 5 |
| Contact Type | - | Crimp |
| Current Rating (Amps) | 7.5 A | 5 - 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | - | Dust Cap, Coupling Nut |
| Housing Color | - | White |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Environment Sealed, IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Positions | - | 9 - 12 |
| Operating Temperature [Max] | 125 °C | 125 - 155 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Primary Material | Plastic | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Shell Size - Insert | 7 | 7 - 10 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Type | - | For Male Pins, For Female Sockets |
SJS86 Series
CONN RCPT MALE 12POS GOLD CRIMP
| Part | Mounting Type | Termination | Connector Type | Primary Material | Shell Size - Insert | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Ingress Protection | Contact Finish - Mating | Shell Material | Fastening Type | Contact Material | Color | Material Flammability Rating | Cable Opening [diameter] | Cable Opening [diameter] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shielding | Contact Size | Note | Type | Contact Shape | Housing Color | Features | Contact Type | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL PCD SJS861401 | Free Hanging (In-Line) | Crimp | Male Pins, Receptacle | Plastic | 8 | 5 A | 125 °C | -65 ░C | 12 | Environment Sealed | Gold | Polyamide (PA66), Nylon 6/6 | Bayonet Lock | ||||||||||||||||
AMPHENOL PCD SJS861201 | Free Hanging (In-Line) | Crimp | Male Pins, Receptacle | Plastic | 10 | 125 °C | -65 ░C | 10 | Environment Sealed | Gold | Polyamide (PA66), Nylon 6/6 | Bayonet Lock | |||||||||||||||||
AMPHENOL PCD SJS862401 | Free Hanging (In-Line) | Crimp | Male Pins, Receptacle | Plastic | 7 | 7.5 A | 125 °C | -65 ░C | IP67 - Dust Tight, Waterproof | Gold | Polyamide (PA66), Nylon 6/6 | Bayonet Lock | Copper Alloy | White | UL94 V-0 | 11.43 mm | 0.45 in | 1.27 µm | 50 µin | Unshielded | |||||||||
AMPHENOL PCD SJS860501 | Free Hanging (In-Line) | Crimp | Male Pins, Receptacle | Plastic | 8 | 5 A | 125 °C | -65 ░C | Environment Sealed | Gold | Polyamide (PA66), Nylon 6/6 | Bayonet Lock | |||||||||||||||||
AMPHENOL PCD SJS860500 | Free Hanging (In-Line) | Receptacle Housing | 8 | 155 °C | -65 ░C | IP67 - Dust Tight, Waterproof | Polyamide (PA66), Nylon 6/6 | Bayonet Lock | UL94 V-0 | Unshielded | 22D | Contacts Not Included | For Male Pins | Circular | White | Dust Cap | Crimp | ||||||||||||
AMPHENOL PCD SJS860511 | Free Hanging (In-Line) | Crimp | Female Sockets, Plug | Plastic | 8 | 5 A | 125 °C | -65 ░C | Environment Sealed | Gold | Polyamide (PA66), Nylon 6/6 | Bayonet Lock | |||||||||||||||||
AMPHENOL PCD SJS862400 | Free Hanging (In-Line) | Crimp | Male Pins, Receptacle | Plastic | 7 | 7.5 A | 125 °C | -65 ░C | Environment Sealed | Gold | Polyamide (PA66), Nylon 6/6 | Bayonet Lock | Copper Alloy | White | UL94 V-0 | ||||||||||||||
AMPHENOL PCD SJS860100 | Free Hanging (In-Line) | Plug Housing | 8 | 125 °C | -65 ░C | 9 | IP67 - Dust Tight, Waterproof | Polyamide (PA66), Nylon 6/6 | Bayonet Lock | UL94 V-0 | Unshielded | 16, 22D | Contacts Not Included | For Female Sockets | Circular | White | Coupling Nut | Crimp | |||||||||||
AMPHENOL PCD SJS860200 | Free Hanging (In-Line) | Receptacle Housing | 8 | 125 °C | -65 ░C | 9 | IP67 - Dust Tight, Waterproof | Polyamide (PA66), Nylon 6/6 | Bayonet Lock | UL94 V-0 | Unshielded | 16, 22D | Contacts Not Included | For Male Pins | Circular | White | Crimp | ||||||||||||
AMPHENOL PCD SJS861100 | Free Hanging (In-Line) | Plug Housing | 10 | 125 °C | -65 ░C | 10 | IP67 - Dust Tight, Waterproof | Polyamide (PA66), Nylon 6/6 | Bayonet Lock | UL94 V-0 | Unshielded | 16 (4), 22D (6) | Contacts Not Included | For Female Sockets | Circular | White | Coupling Nut | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.59 | |
| 1 | $ 43.26 | |||
| 10 | $ 13.11 | |||
| 10 | $ 37.88 | |||
| 25 | $ 12.25 | |||
| 50 | $ 11.50 | |||
| 100 | $ 10.83 | |||
| 100 | $ 33.90 | |||
Description
General part information
SJS86 Series
3 Position Circular Connector Receptacle, Male Pins Crimp
