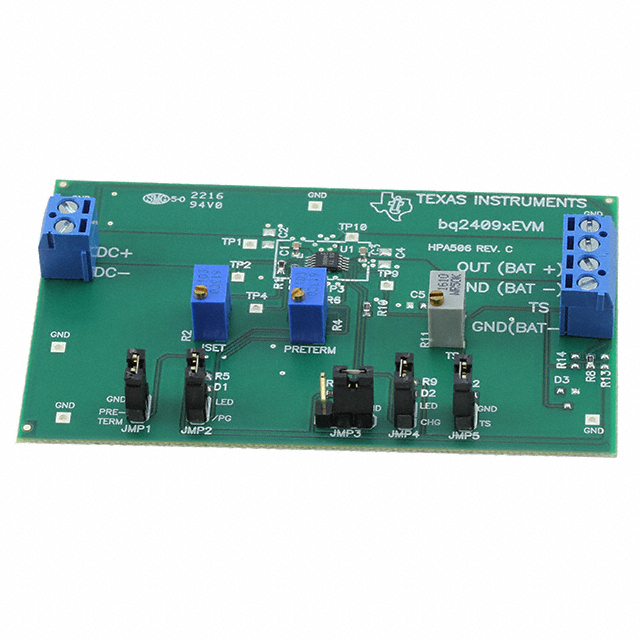

BQ24090EVM
ActiveEVAL MODULE FOR BQ24090
Deep-Dive with AI
Search across all available documentation for this part.
BQ24090EVM
ActiveEVAL MODULE FOR BQ24090
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24090EVM | BQ24090 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.2 V |
| Charge Current - Max | - | 1 A |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Short Circuit, Over Temperature, Over Voltage |
| Function | Battery Charger | Battery Charger |
| Interface | - | USB |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 0 °C |
| Operating Temperature | - | 125 ¯C |
| Package / Case | - | 10-PowerTFSOP, 10-MSOP |
| Primary Attributes | Li-Ion (1 Cell) | Li-Ion (1 Cell) |
| Programmable Features | - | Current |
| Secondary Attributes | Charge Timer | Charge Timer |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-HVSSOP |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24090 | BQ24090 |
| Voltage - Supply (Max) | - | 6.45 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 118.80 | |
BQ24090 Series
1-cell, 1-A, Li-ion linear battery charger w/ 10kΩ NTC
| Part | Supplier Device Package | Mounting Type | Programmable Features | Battery Pack Voltage | Fault Protection | Number of Cells | Current - Charging | Charge Current - Max [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Interface | Battery Chemistry | Voltage - Supply (Max) [Max] | Package / Case | Secondary Attributes | Supplied Contents | Embedded | Function | Utilized IC / Part | Primary Attributes | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24090DGQT | 10-HVSSOP | Surface Mount | Current | 4.2 V | Over Temperature, Over Voltage, Short Circuit | 1 | Constant - Programmable | 1 A | 0 °C | 125 ¯C | USB | Lithium Ion/Polymer | 6.45 V | 10-MSOP, 10-PowerTFSOP | |||||||
Texas Instruments BQ24090EVM | Charge Timer | Board(s) | Battery Charger | BQ24090 | Li-Ion (1 Cell) | Power Management | |||||||||||||||
Texas Instruments BQ24090DGQR | 10-HVSSOP | Surface Mount | Current | 4.2 V | Over Temperature, Over Voltage, Short Circuit | 1 | Constant - Programmable | 1 A | 0 °C | 125 ¯C | USB | Lithium Ion/Polymer | 6.45 V | 10-MSOP, 10-PowerTFSOP |
Description
General part information
BQ24090 Series
The BQ2409x series of devices are highly integrated Li-ion and Li-Pol linear chargers devices targeted at space-limited portable applications. The devices operate from either a USB port or AC adapter. The high input voltage range with input overvoltage protection supports low-cost unregulated adapters.
The BQ2409x has a single power output that charges the battery. A system load can be placed in parallel with the battery as long as the average system load does not keep the battery from charging fully during the 10-hour safety timer.
The battery is charged in three phases: conditioning, constant current and constant voltage. In all charge phases, an internal control loop monitors the IC junction temperature and reduces the charge current if an internal temperature threshold is exceeded.
