ESP32-AZURE IOT KIT

Obsolete

Espressif Systems

ESP32 IOT KIT, INTEGRATES ESP32-

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

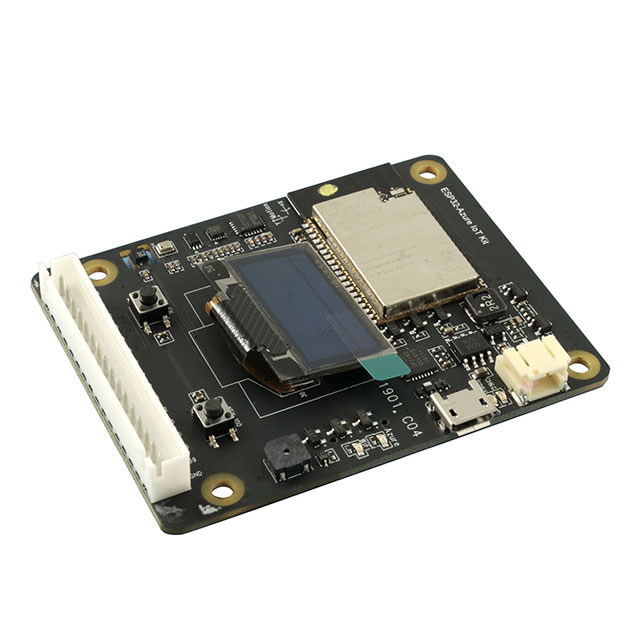

ESP32-AZURE IOT KIT

Obsolete

Espressif Systems

ESP32 IOT KIT, INTEGRATES ESP32-

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ESP32 Series

ESP32 ESP32 Transceiver 2.4GHz Evaluation Board

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESP32-AZURE IOT KIT	ESP32 Series

	-	-
Antenna Type	-	Antenna Not Included, PCB Trace, Antenna Not Included, U.FL, Integrated, Trace, Antenna Not Included, I-PEX
Contents	-	Board(s)
Current - Receiving	-	63 - 112 mA
Current - Receiving	-	68 - 118 mA
Current - Receiving	-	80 mA
Current - Transmitting	-	233 - 379 mA
Current - Transmitting	-	130 - 260 mA
Current - Transmitting	-	80 mA
Data Rate	-	150 Mbps
For Use With/Related Products	ESP32	ESP-WROOM-32, ESP32, ESP32-WROOM-32UE, ESP32-PICO-MINI-02, ESP32-WROVER-E, ESP32-WROVER-IE, ESP32-WROVER-B, ESP32-PICO-D4, ESP32-WROOM-32E, ESP32-WROOM32D
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.484 - 2.5 GHz
Frequency	-	2.4 - 2.412 GHz
Memory Size	-	4 - 536 Gbit
Memory Size	-	8 - 16 MB
Memory Size	-	2 - 536 MB
Memory Size	-	2 MB
Memory Size	-	448 kB
Modulation	-	DQPSK, 8DPSK, DSSS, OFDM, CCK, DPSK
Mounting Type	-	Surface Mount, Chassis Mount
Note	-	Note: Not recommended for mass production use
Operating Temperature	-	65 - 125 °C
Operating Temperature	-	-40 °C
Package / Case	-	38-SMD Module, 56-VFQFN Exposed Pad, Module, 53-SMD Module, 77-SMD Module, 48-SMD Module, 55-SMD Module, 48-TFQFN Exposed Pad
Power - Output	-	18.5 - 20.5 dBm
Protocol	-	Class 1, Bluetooth v4.2 + EDR, Class 3, 802.11b/g/n, Class 2, Bluetooth v4.2 +EDR, Bluetooth v4.2, Bluetooth 4.2
RF Family/Standard	-	WiFi, Bluetooth
Sensitivity	-	-98.4 - -97 dBm
Serial Interfaces	-	GPIO, ADC, UART, I2C, PWM, SPI, I2S, SDIO, PCM, JTAG
Supplied Contents	Board(s)	Board(s)
Type	Transceiver	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver, Bluetooth® Smart 4.x Low Energy (BLE), Programmer
Utilized IC / Part	-	ESP32-S0WD, ESP32-S2, ESP32-PICO-V3-02, ESP32-D0WD, ESP32-D0WDQ6, ESP32-D0WD-V3, ESP32-D0WDR2-V3, ESP32-PICO-MINI-02, ESP32-U4WDH
Voltage - Supply	-	3.6 V
Voltage - Supply	-	2.3 - 3 V
