R123176000

Active

Radiall USA, Inc.

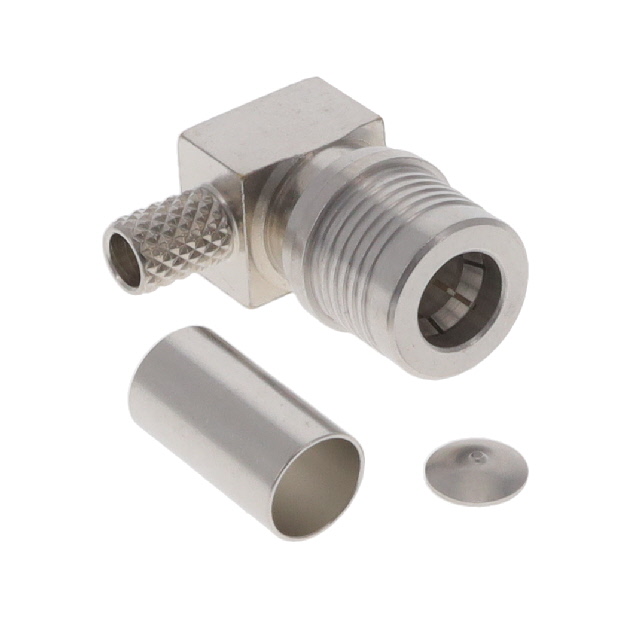

QMA / RIGHT ANGLE PLUG CRIMP TYP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R123176000

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-142, 400, 223
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.25 dB
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	335 V

R12317 Series

Part	Number of Ports	Frequency - Max [Max]	Body Material	Dielectric Material	Mounting Type	Voltage Rating	Shield Termination	Center Contact Material	Center Contact Plating	Housing Color	Fastening Type	Body Finish	Impedance	Cable Group	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Termination	Insertion Loss	Includes
Radiall USA, Inc. R123175000	1	6000 MHz	Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	335 V	Crimp	Brass	Gold	Silver	Snap-On	White Bronze	50 Ohms	141	RG-58	-40 °C	105 ░C	Male Pin Plug	Crimp
Radiall USA, Inc. R123176000W	1	6000 MHz	Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	335 V	Crimp	Brass	Gold	Silver	Snap-On	White Bronze	50 Ohms		223 400 RG-142	-40 °C	105 ░C	Male Pin Plug	Crimp	0.25 dB
Radiall USA, Inc. R123175000W	1	6000 MHz	Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	335 V	Crimp	Brass	Gold	Silver	Snap-On	White Bronze	50 Ohms	141	RG-58	-40 °C	105 ░C	Male Pin Plug	Crimp
Radiall USA, Inc. R123179305
Radiall USA, Inc. R123174000	1	6000 MHz	Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	250 VDC	Crimp	Brass	Gold	Silver	Snap-On	White Bronze	50 Ohms		RG-316 Double Braid	-40 °C	105 ░C	Male Pin Plug	Crimp
Radiall USA, Inc. R123174000W	1	6000 MHz	Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	250 VDC	Crimp	Brass	Gold	Silver	Snap-On	White Bronze	50 Ohms		RG-316 Double Braid	-40 °C	105 ░C	Male Pin Plug	Crimp
Radiall USA, Inc. R123179305W
Radiall USA, Inc. R123172000	1	6000 MHz	Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	250 VDC	Crimp	Brass	Gold				50 Ohms		316 RG-174	-40 °C	105 ░C	Male Pin Plug	Crimp		1 Connector 1 End Cap
Radiall USA, Inc. R123176000	1	6000 MHz	Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	335 V	Crimp	Brass	Gold	Silver	Snap-On	White Bronze	50 Ohms		223 400 RG-142	-40 °C	105 ░C	Male Pin Plug	Crimp	0.25 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.82
		10	$ 15.44
		25	$ 14.63
		50	$ 14.42
		100	$ 12.73
		300	$ 11.88
		500	$ 11.62

Description

General part information

R12317 Series

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
