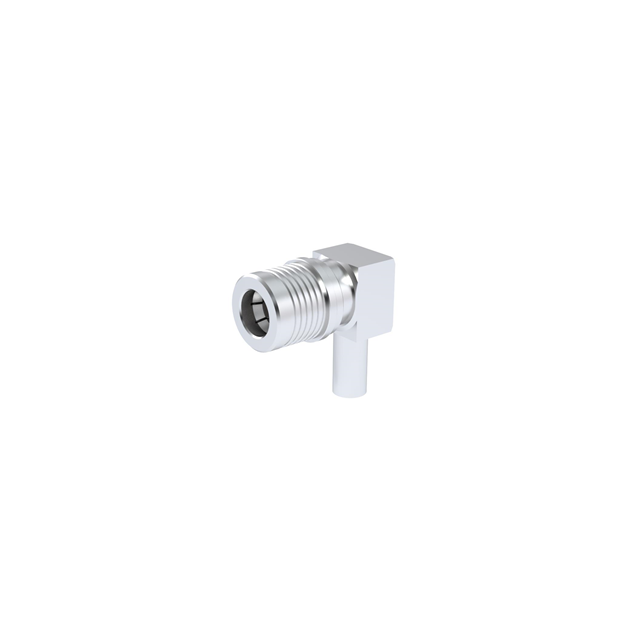

Specification	R123174000

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-316 Double Braid
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	QMA
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	6000 MHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	100 cycles
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Crimp
Voltage Rating	250 V

R12317 Series

Part	Mating Cycles	Body Material	Body Finish	Dielectric Material	Center Contact Plating	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Number of Ports	Impedance	Fastening Type	Center Contact Material	Shield Termination	Connector Style	Cable Group	Connector Type	Contact Termination	Mounting Type	Housing Color	Frequency - Max	Insertion Loss	Includes Total Count	Includes
Radiall USA, Inc. R123172000W	100 cycles	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	250 V	-40 °C	105 °C	1	50 Ohm	Snap-On	Brass	Crimp	QMA	316 RG-188	Male Pin Plug	Crimp	Free Hanging (In-Line) Right Angle	Silver	6000 MHz
Radiall USA, Inc. R123177100	100 cycles	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	335 V	-40 °C	105 °C	1	50 Ohm	Snap-On	Brass	Crimp	QMA	LMR-240	Male Pin Plug	Crimp	Free Hanging (In-Line) Right Angle	Silver	6000 MHz
Radiall USA, Inc. R123175000	100 cycles	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	335 V	-40 °C	105 °C	1	50 Ohm	Snap-On	Brass	Crimp	QMA	141 RG-58	Male Pin Plug	Crimp	Free Hanging (In-Line) Right Angle	Silver	6000 MHz
Radiall USA, Inc. R123176000W	100 cycles	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	335 V	-40 °C	105 °C	1	50 Ohm	Snap-On	Brass	Crimp	QMA	223 400 RG-142	Male Pin Plug	Crimp	Free Hanging (In-Line) Right Angle	Silver	6000 MHz	0.25 dB
Radiall USA, Inc. R123175000W	100 cycles	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	335 V	-40 °C	105 °C	1	50 Ohm	Snap-On	Brass	Crimp	QMA	141 RG-58	Male Pin Plug	Crimp	Free Hanging (In-Line) Right Angle	Silver	6000 MHz
Radiall USA, Inc. R123179305
Radiall USA, Inc. R123174000	100 cycles	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	250 V	-40 °C	105 °C	1	50 Ohm	Snap-On	Brass	Crimp	QMA	RG-316 Double Braid	Male Pin Plug	Crimp	Free Hanging (In-Line) Right Angle	Silver	6000 MHz
Radiall USA, Inc. R123174000W	100 cycles	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	Gold	250 V	-40 °C	105 °C	1	50 Ohm	Snap-On	Brass	Crimp	QMA	RG-316 Double Braid	Male Pin Plug	Crimp	Free Hanging (In-Line) Right Angle	Silver	6000 MHz
Radiall USA, Inc. R123179305W
Radiall USA, Inc. R123172000	100 cycles	Brass		Polytetrafluoroethylene (PTFE)	Gold	250 V	-40 °C	105 °C	1	50 Ohm	Threaded	Brass	Crimp	QMA	316 RG-174	Male Pin Plug	Crimp	Free Hanging (In-Line) Right Angle		6000 MHz		2 pcs	Connector End Cap
