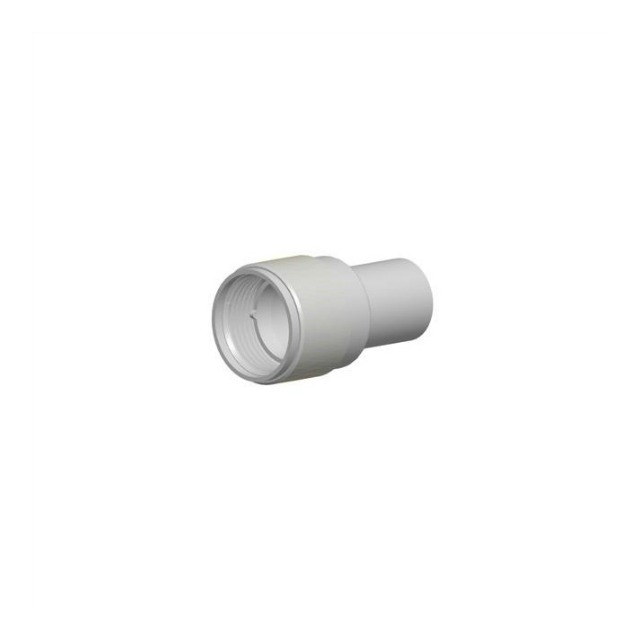

083-8SP-1006

Active

Amphenol RF

CONN UHF PLUG STR CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN UHF PLUG STR CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	083-8SP-1006

Body Finish	Nickel
Body Material	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	UHF
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Phenol Formaldehyde (Phenolic)
Frequency - Max [Max]	300 MHz
Housing Color	Silver
Impedance	Non-Constant
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Number of Ports	Impedance	Dielectric Material	Mounting Type	Mating Cycles	Connector Style	Includes	Contact Termination	Body Material	Housing Color	Body Finish	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Shield Termination	Center Contact Material	Frequency - Max [Max]	Cable Group	Voltage Rating
Amphenol RF 083-8SP-RFX	1	Non-Constant	Phenolic	Free Hanging (In-Line)	500	UHF	1 Connector 1 Ferrule	Crimp	Brass	Silver	Nickel	Male Pin Plug	-65 ░C	165 °C	Silver	Crimp	Brass	300 MHz	213 214 225 302 393 87 8A 9 9A 9B RG-8
Amphenol RF 083-8SP-1006	1	Non-Constant	Phenol Formaldehyde (Phenolic)	Free Hanging (In-Line)	500	UHF		Crimp	Brass	Silver	Nickel	Male Pin Plug	-65 ░C	165 °C	Silver	Crimp	Brass	300 MHz	213 214 225 302 393 87 8A 9 9A 9B RG-8	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

UHF Connector Plug, Male Pin Non-Constant Free Hanging (In-Line) Crimp
