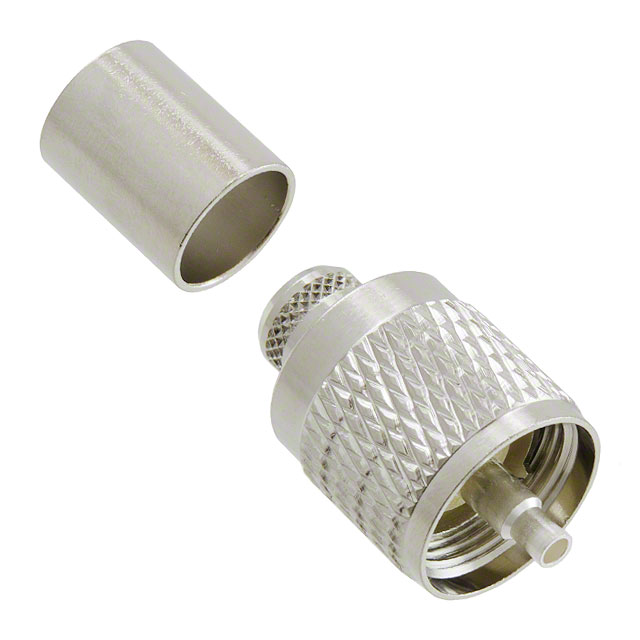

083-8SP-RFX
ActiveAmphenol RF
CONN UHF PLUG STR CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
083-8SP-RFX
ActiveAmphenol RF
CONN UHF PLUG STR CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 083-8SP-RFX |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393 |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | UHF |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Phenolic |
| Frequency - Max [Max] | 300 MHz |
| Housing Color | Silver |
| Impedance | Non-Constant |
| Includes | 1 Connector, 1 Ferrule |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.32 | |
| 10 | $ 6.22 | |||
| 25 | $ 5.83 | |||
| 50 | $ 5.38 | |||
| 100 | $ 4.89 | |||
| 300 | $ 4.24 | |||
| 500 | $ 4.09 | |||
| 1000 | $ 3.95 | |||
Description
General part information
083-8SP Series
UHF Connector Plug, Male Pin Non-Constant Free Hanging (In-Line) Crimp
Documents
Technical documentation and resources
No documents available
