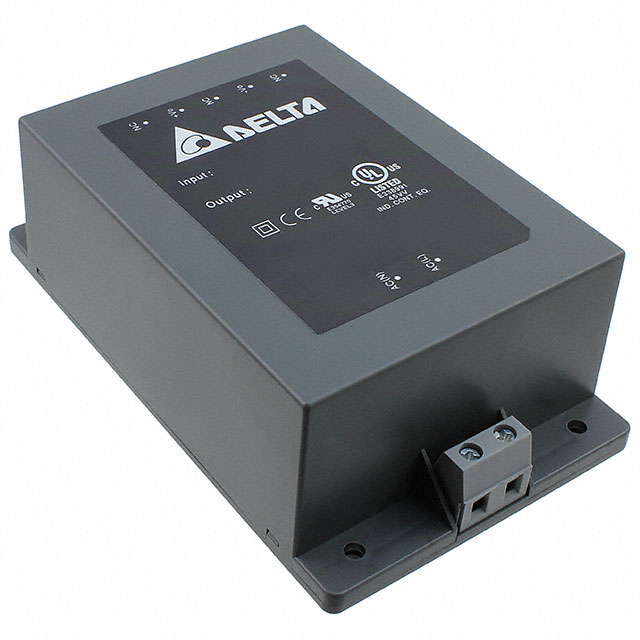

AA60S0500C

Obsolete

Delta Electronics

AC/DC CONVERTER 5V 60W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC CONVERTER 5V 60W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 5V 85 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AA60S0500C	AA60S Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE, UL
Current - Output (Max)	-	1.67 - 4 A
Current - Output 1	10 A	4 - 10 A
Efficiency	79 %	79 - 84 %
Features	Universal Input, DC Input Capable	Universal Input, DC Input Capable
Line Regulation	-	±0.2%
Load Regulation	-	0.5 %
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount, Through Hole
Number of Outputs	1	1
Operating Temperature	-	-10 °C
Operating Temperature	-	70 °C
Operating Temperature [Max] [custom]	158 °F	158 °F
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Package / Case	-	6-DIP Module, 4 Leads
Power (Watts)	-	60 W
Size / Dimension [x]	112 mm	88.9 - 112 mm
Size / Dimension [x]	4.41 "	3.5 - 4.41 "
Size / Dimension [y]	67.8 mm	67.5 - 67.8 mm
Size / Dimension [y]	2.67 in	2.66 - 2.67 in
Size / Dimension [z]	38 mm	34.2 - 38 mm
Size / Dimension [z]	1.5 "	1.35 - 1.5 "
Standard Number	-	60950-1
Type	Enclosed	Enclosed
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	5 V	5 - 36 V
Weight	-	0.761 lb
Weight	-	345.18 g

AC/DC CONVERTER 15V 60W

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Type	Efficiency	Mounting Type	Features	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Current - Output 1	Voltage - Output 1	Approval Agency	Number of Outputs	Current - Output (Max) [Max]	Package / Case	Standard Number	Line Regulation	Power (Watts)	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Load Regulation
Delta Electronics AA60S1500C	-10 °C	158 °F	Enclosed	83 %	Chassis Mount	DC Input Capable, Universal Input	3000 V	38 mm	112 mm	67.8 mm	1.5 "	2.67 in	4.41 "	ITE (Commercial)	4 A	15 V	CE	1
Delta Electronics AA60S1500A			Enclosed	83 %	Through Hole	Universal Input		34.2 mm	88.9 mm	67.5 mm	1.35 "	2.66 "	3.5 in	ITE (Commercial)		15 V	CE, UL	1	4 A	6-DIP Module, 4 Leads	60950-1	±0.2%	60 W	0.761 lb	345.18 g	-10 °C	70 °C	0.5 %
Delta Electronics AA60S2400A			Enclosed	84 %	Through Hole	Universal Input		34.2 mm	88.9 mm	67.5 mm	1.35 "	2.66 "	3.5 in	ITE (Commercial)		24 V	CE, UL	1	2.5 A	6-DIP Module, 4 Leads	60950-1	±0.2%	60 W	0.761 lb	345.18 g	-10 °C	70 °C	0.5 %
Delta Electronics AA60S0500C	-10 °C	158 °F	Enclosed	79 %	Chassis Mount	DC Input Capable, Universal Input	3000 V	38 mm	112 mm	67.8 mm	1.5 "	2.67 in	4.41 "	ITE (Commercial)	10 A	5 V	CE	1
Delta Electronics AA60S3600A			Enclosed	84 %	Through Hole	Universal Input		34.2 mm	88.9 mm	67.5 mm	1.35 "	2.66 "	3.5 in	ITE (Commercial)		36 V	CE, UL	1	1.67 A	6-DIP Module, 4 Leads	60950-1	±0.2%	60 W	0.761 lb	345.18 g	-10 °C	70 °C	0.5 %
