Specification	AWR2243APBGABLRQ1

Data Rate (Max)	600 Mbps
Frequency (Max)	81 GHz
Frequency (Min)	76 GHz
GPIO Count	3
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature (Max)	140 °C
Operating Temperature (Min)	-40 °C
Package / Case	FCBGA, 161-LFBGA
Package Length	10.4 mm
Package Name	161-FC/CSP
Package Width	10.4 mm
Power - Output	13 dBm
Qualification	AEC-Q100
Serial Interfaces	I2C, SPI
Type	TxRx + MCU
Voltage - Supply (Range 1 Maximum)	1.9 V
Voltage - Supply (Range 1 Minimum)	1.71 V
Voltage - Supply (Range 2 Maximum)	3.465 V
Voltage - Supply (Range 2 Minimum)	3.135 V

AWR2243 Series

Part	GPIO Count	Qualification	Mounting Type	Serial Interfaces	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Package Name	Package Length	Package Width	Type	Frequency (Min)	Frequency (Max)	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 1 Minimum)	Data Rate (Max)	Grade	Power - Output	RF Family/Standard	Frequency Range 1 (Min)	Frequency Range 1 (Max)	Frequency Range 2 (Max)	Frequency Range 2 (Min)	Interconnect System	Platform	Utilized IC / Part	Contents	Function
Texas Instruments AWR2243ABGABLQ1	3	AEC-Q100	Surface Mount	I2C SPI	161-LFBGA FCBGA	-40 °C	140 °C	161-FC/CSP	10.4 mm	10.4 mm	TxRx + MCU	76 GHz	81 GHz	3.135 V	3.465 V	1.9 V	1.71 V	600 Mbps	Automotive	13 dBm
Texas Instruments AWR2243AVBGABLRQ1	3	AEC-Q100	Surface Mount	I2C SPI	161-LFBGA FCBGA	-40 °C	140 °C	161-FC/CSP	10.4 mm	10.4 mm	TxRx + MCU			3.135 V	3.465 V	1.9 V	1.71 V	600 Mbps	Automotive	13 dBm	Non-Standard	19 GHz	20.25 GHz	81 GHz	76 GHz
Texas Instruments AWR2243APBGABLQ1	3	AEC-Q100	Surface Mount	I2C SPI	161-LFBGA FCBGA	-40 °C	140 °C	161-FC/CSP	10.4 mm	10.4 mm	TxRx + MCU	76 GHz	81 GHz	3.135 V	3.465 V	1.9 V	1.71 V	600 Mbps	Automotive	13 dBm
Texas Instruments AWR2243ABGABLRQ1	3	AEC-Q100	Surface Mount	I2C SPI	161-LFBGA FCBGA	-40 °C	140 °C	161-FC/CSP	10.4 mm	10.4 mm	TxRx + MCU	76 GHz	81 GHz	3.135 V	3.465 V	1.9 V	1.71 V	600 Mbps	Automotive	13 dBm

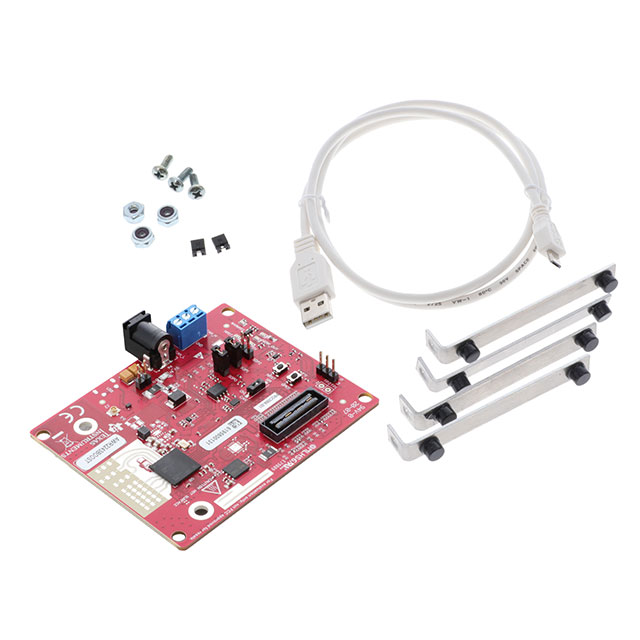

Texas Instruments AWR2243BOOST											Sensor															LaunchPad	LaunchPad™	AWR2243	Accessories Board Cable	Radar
Texas Instruments AWR2243APBGABLRQ1	3	AEC-Q100	Surface Mount	I2C SPI	161-LFBGA FCBGA	-40 °C	140 °C	161-FC/CSP	10.4 mm	10.4 mm	TxRx + MCU	76 GHz	81 GHz	3.135 V	3.465 V	1.9 V	1.71 V	600 Mbps	Automotive	13 dBm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
