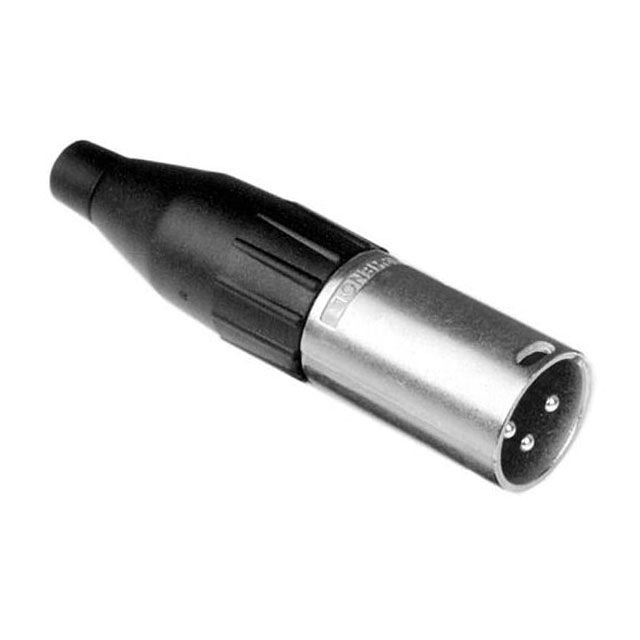

AC3MM

Active

AMPHENOL AUDIO

CONN RCPT MALE XLR 3P SOLDER CUP

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN RCPT MALE XLR 3P SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AC3MM	AC3M Series

Color	Silver	Silver, Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Silver	Silver
Fastening Type	Latch Holder	Latch Holder, Push-Pull
Features	Cable Clamp, Backshell	Cable Clamp, Backshell, Ground
Ingress Protection	IP40	IP40
Mounting Feature	-	Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Polyester
Shell Material	Zinc Die Cast	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	-	Shielded

CONN RCPT MALE XLR 3P SOLDER CUP

Part	Orientation	Mounting Type	Contact Finish - Mating	Color	Shell Finish	Primary Material	Connector Type	Fastening Type	Ingress Protection	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shell Material	Mounting Feature	Shielding
AMPHENOL AUDIO AC3M	Keyed	Free Hanging (In-Line)	Silver	Silver	Nickel	Metal	Male Pins, Receptacle	Latch Holder	IP40	XLR	-25 °C	75 ░C	Backshell, Cable Clamp	Zinc Die Cast
AMPHENOL AUDIO AC3MM	Keyed	Free Hanging (In-Line)	Silver	Silver	Nickel	Metal	Male Pins, Receptacle	Latch Holder	IP40	XLR	-25 °C	75 ░C	Backshell, Cable Clamp	Zinc Die Cast
AMPHENOL AUDIO AC3MMDZ	Keyed		Silver	Silver	Nickel	Metal	Male Pins, Receptacle	Push-Pull	IP40	XLR	-25 °C	75 ░C	Ground	Zinc Die Cast	Flange	Shielded
AMPHENOL AUDIO AC3MMDZB	Keyed		Silver	Black	Polyester	Metal	Male Pins, Receptacle	Push-Pull	IP40	XLR	-25 °C	75 ░C		Zinc Die Cast	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
