AC3MMDZ

Active

AMPHENOL AUDIO

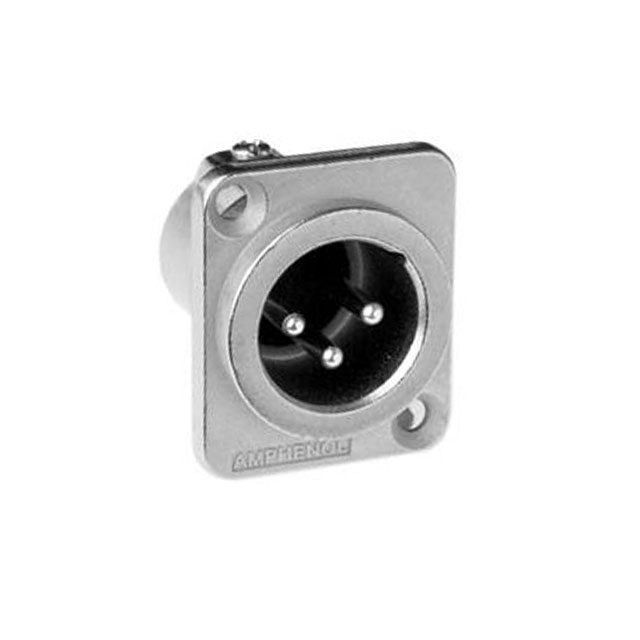

XLR CONNECTOR, 3 CONTACTS, PLUG, PANEL MOUNT, SILVER PLATED CONTACTS, ZINC ALLOY BODY, AC SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAudio XLR Catalog Datasheet +2

AC3MMDZ

Active

AMPHENOL AUDIO

XLR CONNECTOR, 3 CONTACTS, PLUG, PANEL MOUNT, SILVER PLATED CONTACTS, ZINC ALLOY BODY, AC SERIES

Deep-Dive with AI

DocumentsAudio XLR Catalog Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AC3MMDZ	AC3M Series

Color	Silver	Silver, Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Silver	Silver
Fastening Type	Push-Pull	Latch Holder, Push-Pull
Features	Ground	Cable Clamp, Backshell, Ground
Ingress Protection	IP40	IP40
Mounting Feature	Flange	Flange
Mounting Type	-	Free Hanging (In-Line)
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel, Polyester
Shell Material	Zinc Die Cast	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	Shielded	Shielded

AC3M Series

CONN RCPT MALE XLR 3P SOLDER CUP

Part	Orientation	Mounting Type	Contact Finish - Mating	Color	Shell Finish	Primary Material	Connector Type	Fastening Type	Ingress Protection	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shell Material	Mounting Feature	Shielding
AMPHENOL AUDIO AC3M	Keyed	Free Hanging (In-Line)	Silver	Silver	Nickel	Metal	Male Pins, Receptacle	Latch Holder	IP40	XLR	-25 °C	75 ░C	Backshell, Cable Clamp	Zinc Die Cast
AMPHENOL AUDIO AC3MM	Keyed	Free Hanging (In-Line)	Silver	Silver	Nickel	Metal	Male Pins, Receptacle	Latch Holder	IP40	XLR	-25 °C	75 ░C	Backshell, Cable Clamp	Zinc Die Cast
AMPHENOL AUDIO AC3MMDZ	Keyed		Silver	Silver	Nickel	Metal	Male Pins, Receptacle	Push-Pull	IP40	XLR	-25 °C	75 ░C	Ground	Zinc Die Cast	Flange	Shielded
AMPHENOL AUDIO AC3MMDZB	Keyed		Silver	Black	Polyester	Metal	Male Pins, Receptacle	Push-Pull	IP40	XLR	-25 °C	75 ░C		Zinc Die Cast	Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.82
		10	$ 4.38
		25	$ 4.15
		50	$ 4.05
		100	$ 3.86
		250	$ 3.38
		500	$ 3.28
		1000	$ 2.80
		2500	$ 2.60
Newark	Each	500	$ 3.08
		1000	$ 2.77

Description

General part information

AC3M Series

The AC series Musician range XLR Cable Connector complies with IEC268-12 and AES 14-1992 standards. It features the unique Australian design and patented "Jaws" cable retention system. The AC series connector can be quickly and easily assembled without screws just by hand or portable termination tool (part number T2860).
