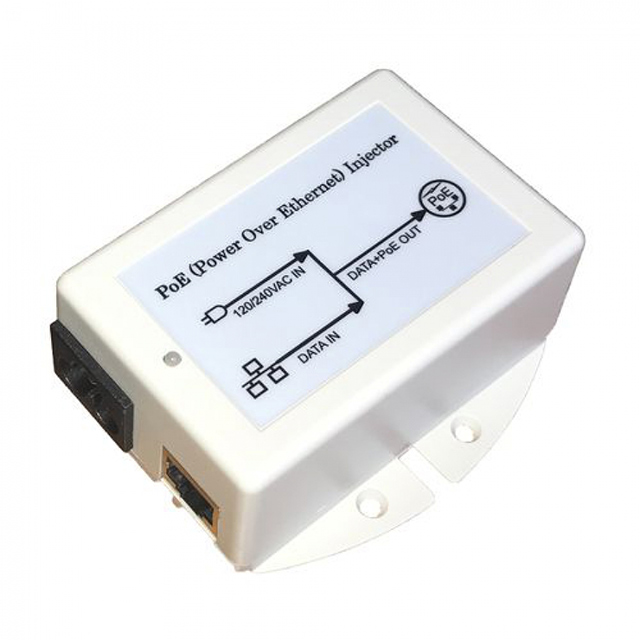

TP-POE-24IR-CI

Active

Tycon Systems Inc.

24V 18W POE POWER INSERTER WITH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TP-POE-24IR-CI

Active

Tycon Systems Inc.

24V 18W POE POWER INSERTER WITH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	50	$ 41.58

Description

General part information

TP-POE Series

24V Power Over Ethernet (POE) 1 Port Passive Injector 10/100/1000 Mbps Data Rate

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TP-POE-24IR-CI	TP-POE Series

Approval Agency	FCC, TUV	FCC, CE, FCC, TUV, TUV, UL, CSA
Compliance	IEEE802.3at, IEEE802.3af	IEEE802.3at, IEEE802.3af
Current - Output	800 mA	1 - 800 mA
Data Rate	10 Mbps, 1000 Mbps, 100 Mbps	10 - 1000 Mbps
Data Rate	-	10 Mbps
Data Rate	-	100 Mbps
Efficiency	85 %	78 - 85 %
Efficiency	-	Level VI
Features	SCP, OCP, OVP	OCP, SCP, OVP
Input Connector	RJ45 (Data, Power)	RJ45 (Data, Power), IEC 320-C8 (Power), RJ45 (Data), IEC 320-C13 (Power)
Mounting Type	Desktop	Desktop
Note	-	AC Power Cord Sold Separately
Number of Ports	1	1
Operating Temperature [Max]	60 °C	50 - 80 °C
Operating Temperature [Min]	-30 ░C	-40 - -20 C
Output Connector	RJ45 (Data, Power)	RJ45 (Data, Power)
Power (Watts) - Per Port	-	15.8 - 100 W
Size / Dimension	-	35.6 - 45.7 mm
Size / Dimension	-	27.9 - 116.8 mm
Size / Dimension [x]	86.4 mm	86.4 - 149.9 mm
Size / Dimension [x]	3.4 "	3.4 - 5.9 "
Size / Dimension [y]	76.2 mm	75 - 76.2 mm
Size / Dimension [y]	3 "	1.1 - 4.6 in
Size / Dimension [z]	35.6 mm	35.6 - 38 mm
Size / Dimension [z]	1.4 "	1.4 - 1.8 "
Standard Number	-	60950-1
Type	Passive Injector	Passive Injector, Midspan Injector
Voltage - Input [Max]	264 VAC	36 - 264 VAC
Voltage - Input [Min]	90 VAC	22 - 100 VAC
Voltage - Output	24 V	18 - 56 V

TP-POE Series

24V 12W 10/100MB PASSIVE POE POW

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Current - Output	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Output Connector	Approval Agency	Voltage - Output	Features	Type	Input Connector	Data Rate [Min]	Data Rate [Max]	Number of Ports	Power (Watts) - Per Port	Data Rate	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Compliance
Tycon Systems Inc. TP-POE-24-12W	50 °C	-20 C	240 VAC	100 VAC	Desktop	500 mA	45.7 mm	27.9 mm	1.8 "	92.7 mm	3.65 "	1.1 in	83 %	RJ45 (Data, Power)	CE, FCC	24 V	OCP, SCP	Passive Injector	RJ45 (Data, Power)	10 Mbps	100 Mbps	1
Tycon Systems Inc. TP-POE-HP-48G	60 °C	-30 ░C	264 VAC	90 VAC	Desktop				1.5 "	125 mm	4.92 in	2.95 in	85 %	RJ45 (Data, Power)		48 V	OCP, OVP, SCP	Passive Injector	IEC 320-C8 (Power), RJ45 (Data)			1	50 W	10 Mbps, 100 Mbps, 1000 Mbps	75 mm	38 mm
Tycon Systems Inc. TP-POE-24G	60 °C	-30 ░C	264 VAC	90 VAC	Desktop	800 mA			1.4 "	86.4 mm	3.4 "	3 "	85 %	RJ45 (Data, Power)	FCC, TUV	24 V	OCP, OVP, SCP	Passive Injector	RJ45 (Data, Power)			1		10 Mbps, 100 Mbps, 1000 Mbps	76.2 mm	35.6 mm	60950-1	IEEE802.3af, IEEE802.3at
Tycon Systems Inc. TP-POE-HP-48DX2	50 °C	-25 °C	264 VAC	90 VAC	Desktop	450 mA	38.1 mm	76.2 mm	1.5 "	124.5 mm	4.9 in	3 "	80 %	RJ45 (Data, Power)		56 V	OCP, OVP, SCP	Passive Injector	IEC 320-C13 (Power), RJ45 (Data)	10 Mbps	100 Mbps	1	50 W					IEEE802.3af, IEEE802.3at
Tycon Systems Inc. TP-POE-24	60 °C	-30 ░C	264 VAC	90 VAC	Desktop	800 mA			1.4 "	86.4 mm	3.4 "	3 "	85 %	RJ45 (Data, Power)	FCC, TUV	24 V	OCP, OVP, SCP	Passive Injector	RJ45 (Data, Power)			1		10 Mbps, 100 Mbps, 1000 Mbps	76.2 mm	35.6 mm		IEEE802.3af, IEEE802.3at
Tycon Systems Inc. TP-POE-1824	60 °C	-30 ░C	60 V	36 V	Desktop	670 mA			1.4 "	86.4 mm	3.4 "	3 "		RJ45 (Data, Power)	FCC, TUV	18 V, 24 V	OCP, OVP, SCP	Passive Injector	RJ45 (Data, Power)	10 Mbps	100 Mbps	1			76.2 mm	35.6 mm		IEEE802.3af, IEEE802.3at
Tycon Systems Inc. TP-POE++10G	50 °C	-20 C	240 VAC	100 VAC	Desktop	1 A	35.6 mm	63.5 mm	1.4 "	139.7 mm	5.5 in	2.5 in	84 %	RJ45 (Data, Power)	CE, FCC	56 V	OCP, SCP	Midspan Injector	RJ45 (Data, Power)			1	56 W	10 Mbps, 100 Mbps, 1000 Mbps				IEEE802.3at
Tycon Systems Inc. TP-POE-HP-56G-FBN	60 °C	-40 °C	264 VAC	90 VAC	Desktop	1.07 A	38.1 mm	76.2 mm	1.5 "	124.5 mm	4.9 in	3 "	80 %	RJ45 (Data, Power)	FCC, TUV	56 V	OCP, OVP, SCP	Passive Injector	RJ45 (Data, Power)			1	60 W	10 Mbps, 100 Mbps, 1000 Mbps
Tycon Systems Inc. TP-POE-48D	60 °C	-30 ░C	264 VAC	90 VAC	Desktop	330 mA			1.4 "	86.4 mm	3.4 "	3 "	85 %	RJ45 (Data, Power)	FCC, TUV	48 V	OCP, OVP, SCP	Passive Injector	RJ45 (Data, Power)			1	15.8 W	10 Mbps, 100 Mbps, 1000 Mbps	76.2 mm	35.6 mm		IEEE802.3af, IEEE802.3at
Tycon Systems Inc. TP-POE-HP-48GD	60 °C	-30 ░C	264 VAC	90 VAC	Desktop		38.1 mm	76.2 mm	1.5 "	124.5 mm	4.9 in	3 "	85 %	RJ45 (Data, Power)	FCC, TUV	56 V	OCP, OVP, SCP	Passive Injector	RJ45 (Data, Power)			1	35 W	10 Mbps, 100 Mbps, 1000 Mbps			60950-1	IEEE802.3af, IEEE802.3at
