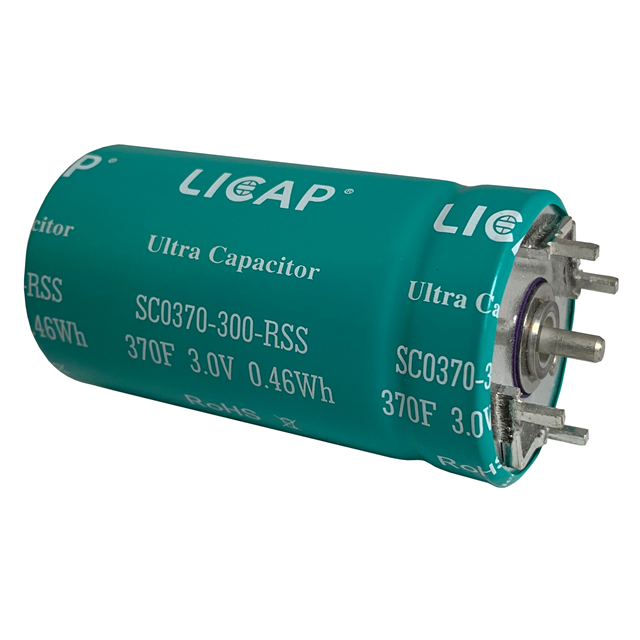

SC0370-300-RSS

Active

LICAP Technologies, Inc.

CAPACITOR 370F 0%/20% 3V TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SC0370-300-RSS

Active

LICAP Technologies, Inc.

CAPACITOR 370F 0%/20% 3V TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SC0370-300-RSS	- Series

Capacitance	370 F	6 - 3000 F
ESR (Equivalent Series Resistance)	2.4 mOhms	0.28 - 200 mOhm
Height - Seated (Max)	-	2.421 - 7.087 in
Height - Seated (Max)	-	61.5 - 180 mm
Height - Seated (Max) [Max]	61 mm	61 - 181 mm
Height - Seated (Max) [Max]	2.402 in	2.402 - 7.126 in
Lifetime @ Temp.	1500 Hrs	1500 Hrs
Mounting Type	Through Hole	Chassis Mount, Through Hole
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-50 °C	-50 - -40 °C
Package / Case	Radial, Can - Solder Lug - 4 Lead	Module, Axial, Can - Screw Terminals, Radial, Can - Solder Lug - 4 Lead
Size / Dimension	-	44 - 276 mm
Size / Dimension	-	6.496 - 16.457 in
Size / Dimension	-	1.732 - 10.866 in
Size / Dimension	-	165 - 418 mm
Size / Dimension [diameter]	31.85 mm	31.85 - 61 mm
Size / Dimension [diameter]	1.254 in	1.254 - 2.402 in
Termination	Solder Lug	Screw Terminals, Solder Lug
Tolerance [Max]	20 %	20 %
Tolerance [Min]	0 %	0 %
Voltage - Rated	3 VDC	2.7 - 180 V
Voltage - Rated	-	18 V

- Series

CAPACITOR 6F 0%/20% 180V CHAS

Part	Capacitance	Lifetime @ Temp.	Termination	Package / Case	Mounting Type	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	ESR (Equivalent Series Resistance)	Tolerance [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated [diameter]
LICAP Technologies, Inc. SM0006-180-P	6 F	1500 Hrs	Screw Terminals	Module	Chassis Mount	180 V	65 °C	-40 °C	240 mm	14.528 in	9.449 in	369 mm	200 mOhm	20 %
LICAP Technologies, Inc. SM0006-160-P	6 F	1500 Hrs	Screw Terminals	Module	Chassis Mount	160 V	65 °C	-40 °C	240 mm	14.528 in	9.449 in	369 mm	200 mOhm	20 %
LICAP Technologies, Inc. SM0062-017-NB	62 F	1500 Hrs	Screw Terminals	Module	Chassis Mount	17 V	65 °C	-40 °C	44 mm	9.449 "	1.732 in	240 mm	22 mOhms	20 %	2.992 in	76 mm
LICAP Technologies, Inc. SC1200-270-ASC	1200 F	1500 Hrs	Screw Terminals	Axial, Can - Screw Terminals	Chassis Mount	2.7 VDC	65 °C	-40 °C					0.58 mOhm	20 %
LICAP Technologies, Inc. SM0125-064-ATH	125 F	1500 Hrs	Screw Terminals	Module	Chassis Mount	64 V	65 °C	-40 °C	276 mm	16.28 in	10.866 in	413.5 mm	8 mOhms	20 %			7.126 in	181 mm
LICAP Technologies, Inc. SM0058-016-P	58 F	1500 Hrs	Screw Terminals	Module	Chassis Mount	16 V	65 °C	-40 °C	47 mm	9.449 "	1.85 "	240 mm	22 mOhms	20 %	2.992 in	76 mm
LICAP Technologies, Inc. SM0500-016-ATH	500 F	1500 Hrs	Screw Terminals	Module	Chassis Mount	16 V	65 °C	-40 °C	68 mm	16.457 in	2.677 "	418 mm	1.8 mOhm	20 %			7.008 "	178 mm
LICAP Technologies, Inc. SC3000-270-ASC	3000 F	1500 Hrs	Screw Terminals	Axial, Can - Screw Terminals	Chassis Mount	2.7 VDC	65 °C	-40 °C		6.496 in		165 mm	0.28 mOhm	20 %					61 mm	2.402 in
LICAP Technologies, Inc. SM0062-018-P	62 F	1500 Hrs	Screw Terminals	Module	Chassis Mount		65 °C	-40 °C	47 mm	9.449 "	1.85 "	240 mm	22 mOhms	20 %	2.992 in	76 mm					18 V
LICAP Technologies, Inc. SM0058-016-P-1	58 F	1500 Hrs	Screw Terminals	Module	Chassis Mount	16 V	65 °C	-40 °C	47 mm	9.449 "	1.85 "	240 mm	22 mOhms	20 %	2.992 in	76 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.08
		10	$ 13.14
		50	$ 11.13
		100	$ 10.51
		500	$ 9.43
		1000	$ 9.10

Description

General part information

- Series

370 F (EDLC) Supercapacitor 3 V Radial, Can - Solder Lug - 4 Lead 2.4mOhm 1500 Hrs @ 65°C
