1424480

Active

Phoenix Contact

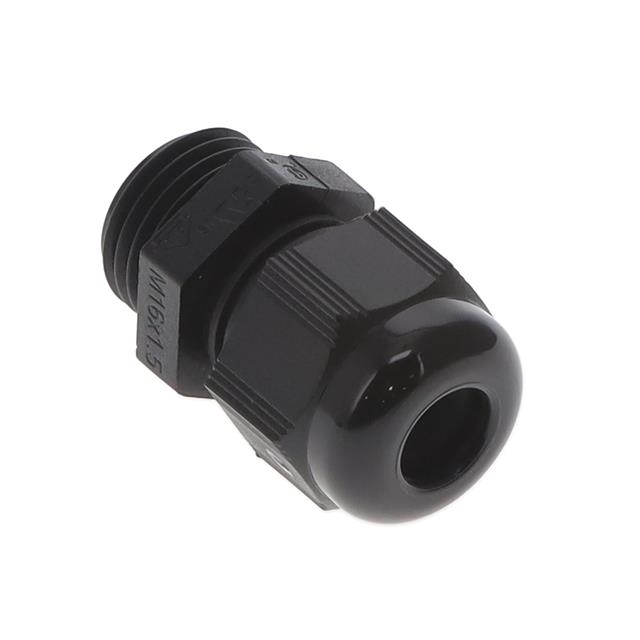

CABLE GLAND 4-8MM M16 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 4-8MM M16 POLYAMIDE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1424480	G-INS-M16 Series

Color	Black	Gray, Silver, Black, Light Gray
Includes	Seal	Seal, O-Ring
Ingress Protection	IP66/IP68	IP66/IP68, IP66, IP68, IP69
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm	8 - 10 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in	0.315 - 0.394 in
Outside Cable Diameter (Min) [Min]	0.157 in	0.157 - 0.197 in
Outside Cable Diameter (Min) [Min]	4 mm	4 - 5 mm
Thread Length	8 mm	7 - 10 mm
Thread Length	0.315 in	0.276 - 0.394 in
Thread Size	M16x1.5	M16x1.5, M16
Type	Cable Gland	Cable Gland

CABLE GLAND 4-8MM M16 POLYAMIDE

Part	Includes	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Ingress Protection	Material	Color
Phoenix Contact 1424475	Seal	8 mm	0.315 in	100 °C	-40 °C	M16x1.5	0.157 in	4 mm	Cable Gland	8 mm	0.315 in	IP66/IP68	Polyamide (PA), Nylon	Gray
Phoenix Contact 1424470	Seal	8 mm	0.315 in	100 °C	-40 °C	M16x1.5	0.157 in	4 mm	Cable Gland	8 mm	0.315 in	IP66/IP68	Polyamide (PA), Nylon	Gray
Phoenix Contact 1411162	O-Ring, Seal	7 mm	0.276 in	100 °C	-40 °C	M16	0.197 in	5 mm	Cable Gland	10 mm	0.394 "	IP66, IP68, IP69	Brass, Nickel Plated	Silver
Phoenix Contact 1424480	Seal	8 mm	0.315 in	100 °C	-40 °C	M16x1.5	0.157 in	4 mm	Cable Gland	8 mm	0.315 in	IP66/IP68	Polyamide (PA), Nylon	Black
Phoenix Contact 1417653	Seal	10 mm	0.394 in	100 °C	-40 °C	M16x1.5	0.197 in	5 mm	Cable Gland	10 mm	0.394 "	IP66/IP68	Polyamide (PA), Nylon	Light Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M16x1.5 Black
