1417653

Active

Phoenix Contact

CABLE GLAND 5-10MM M16 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 5-10MM M16 POLYAMIDE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.58

General part information

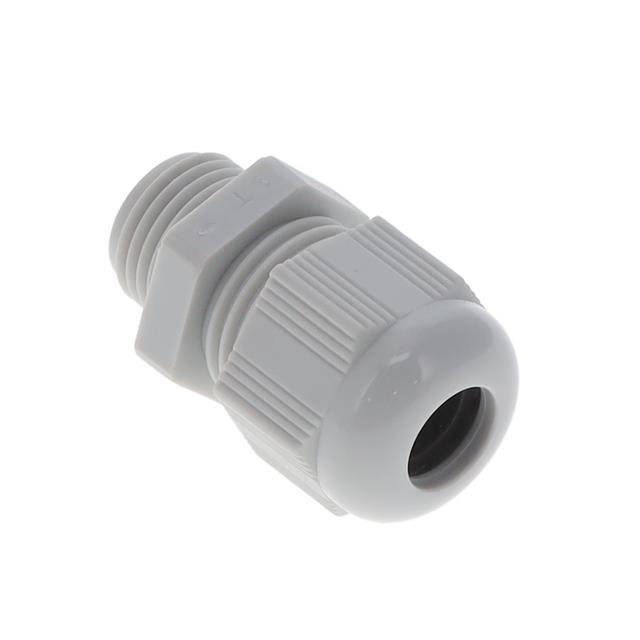

Cable Gland Polyamide (PA), Nylon M16x1.5 Light Gray

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1417653	G-INS-M16 Series

Color	Light Gray	Gray, Silver, Black, Light Gray
Includes	Seal	Seal, O-Ring
Ingress Protection	IP66/IP68	IP66/IP68, IP66, IP68, IP69
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "	0.315 - 0.394 in
Outside Cable Diameter (Max) [Max] [diameter]	10 mm	8 - 10 mm
Outside Cable Diameter (Min) [Min]	5 mm	4 - 5 mm
Outside Cable Diameter (Min) [Min]	0.197 in	0.157 - 0.197 in
Thread Length	10 mm	7 - 10 mm
Thread Length	0.394 in	0.276 - 0.394 in
Thread Size	M16x1.5	M16x1.5, M16
Type	Cable Gland	Cable Gland

CABLE GLAND 4-8MM M16 POLYAMIDE

Part	Includes	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Ingress Protection	Material	Color
Phoenix Contact 1424475	Seal	8 mm	0.315 in	100 °C	-40 °C	M16x1.5	0.157 in	4 mm	Cable Gland	8 mm	0.315 in	IP66/IP68	Polyamide (PA), Nylon	Gray
Phoenix Contact 1424470	Seal	8 mm	0.315 in	100 °C	-40 °C	M16x1.5	0.157 in	4 mm	Cable Gland	8 mm	0.315 in	IP66/IP68	Polyamide (PA), Nylon	Gray
Phoenix Contact 1411162	O-Ring, Seal	7 mm	0.276 in	100 °C	-40 °C	M16	0.197 in	5 mm	Cable Gland	10 mm	0.394 "	IP66, IP68, IP69	Brass, Nickel Plated	Silver
Phoenix Contact 1424480	Seal	8 mm	0.315 in	100 °C	-40 °C	M16x1.5	0.157 in	4 mm	Cable Gland	8 mm	0.315 in	IP66/IP68	Polyamide (PA), Nylon	Black
Phoenix Contact 1417653	Seal	10 mm	0.394 in	100 °C	-40 °C	M16x1.5	0.197 in	5 mm	Cable Gland	10 mm	0.394 "	IP66/IP68	Polyamide (PA), Nylon	Light Gray
