TPD6F002DSVR

Active

Texas Instruments

6 CHANNEL 5.5-V, &PLUSMN;20KV ESD PROTECTION &AMP; EMI FILTER WITH 100-MHZ -3-DB FOR SIM CARD 12-SON -40 TO 85

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TPD6F002 Six-Channel EMI Filter for LCD Display and FPD-Link datasheet (Rev. B)

TPD6F002DSVR

Active

Texas Instruments

6 CHANNEL 5.5-V, &PLUSMN;20KV ESD PROTECTION &AMP; EMI FILTER WITH 100-MHZ -3-DB FOR SIM CARD 12-SON -40 TO 85

Deep-Dive with AI

DocumentsDatasheet TPD6F002 Six-Channel EMI Filter for LCD Display and FPD-Link datasheet (Rev. B)

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TPD6F002DSVR	TPD6F002 Series

Applications	Data Lines for Mobile Devices	Data Lines for Mobile Devices
Attenuation Value	57 dB	57 dB
Center / Cutoff Frequency	100 MHz	100 MHz
Contents	-	Board(s)
Embedded	-	False
ESD Protection	True	True
Filter Order	2nd	2nd
Function	-	Electrostatic Discharge (ESD)
Height [z]	0.031 "	0.031 "
Height [z]	0.79 mm	0.79 mm
Mounting Type	Surface Mount	Surface Mount
Number of Channels	6	6
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C

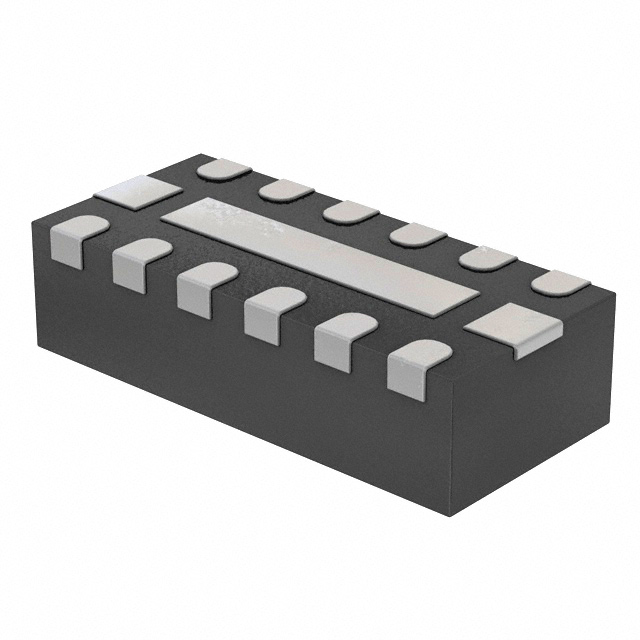

Package / Case	12-WFDFN Exposed Pad	12-WFDFN Exposed Pad
Resistance - Channel (Ohms)	100 Ohms	100 Ohms
Size / Dimension [x]	0.118 "	0.118 "
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	0.053 in	0.053 in
Size / Dimension [y]	1.35 mm	1.35 mm
Supplied Contents	-	Board(s)
Technology	RC (Pi)	RC (Pi)
Type	Low Pass	Low Pass
Utilized IC / Part	-	TPD6F002-Q1
Values	17 pF, 100 Ohms	17 - 100 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow Electronics	N/A	1	$ 0.50
		1	$ 0.49
		10	$ 0.49
		10	$ 0.35
		25	$ 0.40
		50	$ 0.36
		100	$ 0.32
		100	$ 0.31
		250	$ 0.31
		500	$ 0.28
		500	$ 0.28
		3000	$ 0.27
		3000	$ 0.28
		3000	$ 0.28
		24000	$ 0.28
CHIPMALL.COM LIMITED	N/A	5	$ 0.20
		150	$ 0.18
		165	$ 0.31
		395	$ 0.26
		605	$ 0.25
		835	$ 0.24
		1080	$ 0.23
		1445	$ 0.21
Chip1Stop	N/A	1	$ 0.80
		5	$ 0.32
		5	$ 0.55
		5	$ 0.35
		10	$ 0.28
		25	$ 0.48
		50	$ 0.28
		50	$ 0.29
		100	$ 0.44
		150	$ 0.26
		500	$ 0.27
		500	$ 0.41
		500	$ 0.23
		3000	$ 0.21
		6000	$ 0.20
DigiKey	N/A	1	$ 0.48
		10	$ 0.47
		25	$ 0.39
		50	$ 0.35
		100	$ 0.32
		100	$ 0.33
		250	$ 0.30
		500	$ 0.28
		500	$ 0.31
		3000	$ 0.28
Digikey	Cut Tape (CT)	1	$ 0.50
		10	$ 0.49
		25	$ 0.40
		50	$ 0.36
		100	$ 0.32
		250	$ 0.31
		500	$ 0.28
	Digi-Reel®	1	$ 0.50
		10	$ 0.49
		25	$ 0.40
		50	$ 0.36
		100	$ 0.32
		250	$ 0.31
		500	$ 0.28
	Tape & Reel (TR)	3000	$ 0.28
LCSC	N/A	5	$ 0.35
		5	$ 0.32
		5	$ 0.35
		10	$ 0.28
		50	$ 0.29
		50	$ 0.28
		50	$ 0.29
		150	$ 0.26
		150	$ 0.26
		500	$ 0.23
		500	$ 0.27
		500	$ 0.23
		3000	$ 0.21
		3000	$ 0.21
		6000	$ 0.20
		6000	$ 0.20
Mouser Electronics	N/A	1	$ 0.49
		1	$ 0.56
		1	$ 0.50
		10	$ 0.35
		10	$ 0.39
		10	$ 0.49
		25	$ 0.37
		25	$ 0.40
		50	$ 0.35
		50	$ 0.36
		100	$ 0.31
		100	$ 0.33
		100	$ 0.32
		250	$ 0.31
		500	$ 0.28
		500	$ 0.31
		500	$ 0.28
		3000	$ 0.28
		3000	$ 0.28
		24000	$ 0.28
Quest Components	N/A	1	$ 1.17
		1	$ 0.80
		1	$ 1.17
		5	$ 0.55
		5	$ 0.20
		25	$ 0.32
		25	$ 0.48
		50	$ 0.39
		86	$ 0.59
		86	$ 0.59
		100	$ 0.38
		100	$ 0.44
		150	$ 0.18
		250	$ 0.37
		342	$ 0.47
		342	$ 0.47
		500	$ 0.41
		1000	$ 0.36
RS	N/A	1	$ 1.17
		1	$ 0.49
		10	$ 0.35
		25	$ 0.31
		50	$ 0.37
		50	$ 0.37
		86	$ 0.59
		100	$ 0.36
		100	$ 0.31
		100	$ 0.36
		250	$ 0.35
		250	$ 0.35
		342	$ 0.47
		500	$ 0.28
		1000	$ 0.34
		1000	$ 0.34
		3000	$ 0.32
		3000	$ 0.32
		3000	$ 0.28
		3000	$ 0.27
		3000	$ 0.27
		24000	$ 0.28
TME	N/A	1	$ 0.80
		5	$ 0.55
		5	$ 0.32
		10	$ 0.27
		25	$ 0.48
		50	$ 0.39
		50	$ 0.27
		100	$ 0.44
		100	$ 0.38
		250	$ 0.37
		500	$ 0.41
		500	$ 0.26
		1000	$ 0.36
Texas Instruments	LARGE T&R	1	$ 0.62
		100	$ 0.48
		250	$ 0.35
		1000	$ 0.25
Win Source Electronics	N/A	5	$ 0.20
		150	$ 0.18
		165	$ 0.31
		165	$ 0.31
		395	$ 0.26
		395	$ 0.26
		605	$ 0.25
		605	$ 0.25
		835	$ 0.24
		835	$ 0.24
		1080	$ 0.23
		1080	$ 0.23
		1445	$ 0.21
		1445	$ 0.21

TPD6F002 Series

EVALUATION MODULE TPD6F002-Q1

Part	Supplied Contents	Embedded	Function	Contents	Utilized IC / Part	Type	Height [z]	Height [z]	Number of Channels	Mounting Type	Values	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Resistance - Channel (Ohms)	Attenuation Value	Technology	Center / Cutoff Frequency	Filter Order	ESD Protection
Texas Instruments TPD6F002-Q1EVM TPD6F002-Q1 Electrostatic Discharge (ESD) Circuit Protection Evaluation Board	Board(s)		Electrostatic Discharge (ESD)	Board(s)	TPD6F002-Q1
Texas Instruments TPD6F002DSVR The TPD6F002 device is a highly-integrated device that provides a six-channel Electromagnetic Interference (EMI) filter and a TVS based ESD protection diode array. The low-pass filter array suppresses EMI/RFI emissions for data ports subject to electromagnetic interference. The TVS diode array is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard. The high level of integration, combined with its small easy-to-route DSV package, allows this device to provide great circuit protection for LCD displays, memory interfaces, GPIO lines, and FPD-Link. The TPD6F002 device is a highly-integrated device that provides a six-channel Electromagnetic Interference (EMI) filter and a TVS based ESD protection diode array. The low-pass filter array suppresses EMI/RFI emissions for data ports subject to electromagnetic interference. The TVS diode array is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard. The high level of integration, combined with its small easy-to-route DSV package, allows this device to provide great circuit protection for LCD displays, memory interfaces, GPIO lines, and FPD-Link.						Low Pass	0.031 "	0.79 mm	6	Surface Mount	17 pF, 100 Ohms	Data Lines for Mobile Devices	0.053 in	0.118 "	3 mm	1.35 mm	12-WFDFN Exposed Pad	-40 °C	85 °C	100 Ohms	57 dB	RC (Pi)	100 MHz	2nd

Description

General part information

TPD6F002 Series

The TPD6F002 device is a highly-integrated device that provides a six-channel Electromagnetic Interference (EMI) filter and a TVS based ESD protection diode array. The low-pass filter array suppresses EMI/RFI emissions for data ports subject to electromagnetic interference. The TVS diode array is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard. The high level of integration, combined with its small easy-to-route DSV package, allows this device to provide great circuit protection for LCD displays, memory interfaces, GPIO lines, and FPD-Link.
