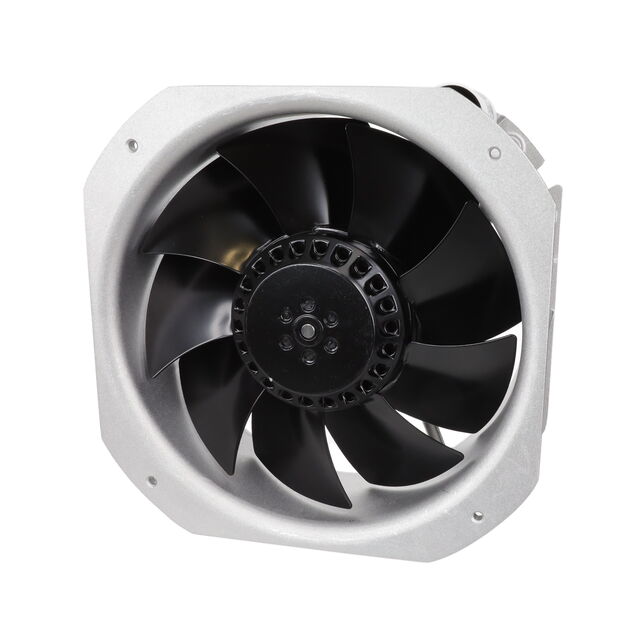

UF200BMB12-H2C2A

Active

Mechatronics Fan Group

FAN HD AXIAL 225X80MM 115VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBlowers & Impellers Part Numbering Datasheet +1

UF200BMB12-H2C2A

Active

Mechatronics Fan Group

FAN HD AXIAL 225X80MM 115VAC

Deep-Dive with AI

DocumentsBlowers & Impellers Part Numbering Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 143.90
		10	$ 128.29
		25	$ 122.55
		50	$ 118.38

Description

General part information

UF200 Series

Fan Tubeaxial 115VAC Square - 225mm L x 225mm H Ball 625.0 CFM (17.50m³/min) 4 Terminals

Documents

Technical documentation and resources

Blowers & Impellers Part Numbering

Datasheet

AC Axial Part Numbering Guide

Datasheet

Specification	UF200BMB12-H2C2A	UF200 Series

Air Flow	625 CFM	625 CFM
Air Flow	17.5 m³/min	17.5 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	880 mA	370 - 880 mA
Fan Type	Tubeaxial	Tubeaxial, Frameless
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Speed Sensor (Tach)
Material - Blade	Metal	Metal
Material - Frame	Metal	Metal
Noise	61 dB(A)	61 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	100 W	80 - 100 W
RPM	3000 RPM	3000 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	225 mm	225 mm
Size / Dimension [z]	225 mm	225 mm
Static Pressure	201.8 Pa	201.8 Pa
Static Pressure	0.81 in H2O	0.81 in H2O
Termination	4 Terminals	4 Terminals
Voltage - Rated	115 VAC	115 - 230 VAC
Weight	3 lb	3 lb
Weight	1.4 kg	1.4 kg
Width [y]	80 mm	80 mm

Part	Width [y]	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Voltage - Rated	Approval Agency	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Air Flow	Air Flow	Power (Watts)	Material - Blade	Weight	Weight	Termination	Static Pressure	Static Pressure	Bearing Type	RPM	Current Rating (Amps)	Noise	Features
Mechatronics Fan Group UF200BMB12-H2C2A	80 mm	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	Metal	115 VAC	CE, cUL, TUV, UL	Square	225 mm	225 mm	625 CFM	17.5 m³/min	100 W	Metal	3 lb	1.4 kg	4 Terminals	201.8 Pa	0.81 in H2O	Ball	3000 RPM	880 mA	61 dB(A)	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
Mechatronics Fan Group UF200BMB23-H2C2A-B1	80 mm	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	Metal	230 VAC	CE, cUL, TUV, UL	Square	225 mm	225 mm	625 CFM	17.5 m³/min	80 W	Metal	3 lb	1.4 kg	4 Terminals	201.8 Pa	0.81 in H2O	Ball	3000 RPM	370 mA	61 dB(A)	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)
Mechatronics Fan Group UF200BMB23-H2C2A	80 mm	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	Metal	230 VAC	CE, cUL, TUV, UL	Square	225 mm	225 mm	625 CFM	17.5 m³/min	80 W	Metal	3 lb	1.4 kg	4 Terminals	201.8 Pa	0.81 in H2O	Ball	3000 RPM	370 mA	61 dB(A)	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
Mechatronics Fan Group UF200BMB12-H2C2A-B1	80 mm	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	Metal	115 VAC	CE, cUL, TUV, UL	Square	225 mm	225 mm	625 CFM	17.5 m³/min	100 W	Metal	3 lb	1.4 kg	4 Terminals	201.8 Pa	0.81 in H2O	Ball	3000 RPM	880 mA	61 dB(A)	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)
Mechatronics Fan Group UF200BMB12-H2C2B	80 mm	Frameless, Tubeaxial	-20 °C	70 °C	-20 C	70 °C	Metal	115 VAC	CE, cUL, TUV, UL	Square	225 mm	225 mm	625 CFM	17.5 m³/min	100 W	Metal	3 lb	1.4 kg	4 Terminals	201.8 Pa	0.81 in H2O	Ball	3000 RPM	880 mA	61 dB(A)	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
