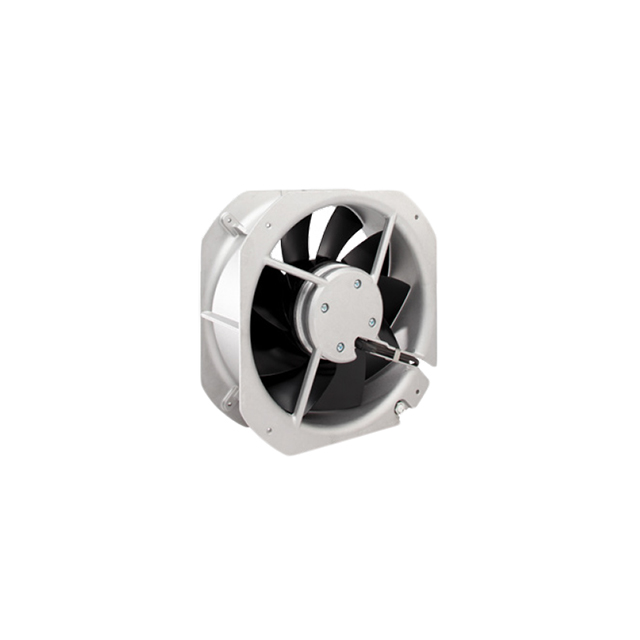

UF200BMB23-H2C2A-B1

Active

Mechatronics Fan Group

FAN AXIAL 200X71MM 230VAC TACH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTachometer and Alarm Output System Datasheet +1

UF200BMB23-H2C2A-B1

Active

Mechatronics Fan Group

FAN AXIAL 200X71MM 230VAC TACH

Deep-Dive with AI

DocumentsTachometer and Alarm Output System Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 163.39
		16	$ 146.84
		32	$ 144.77
		56	$ 135.47

Description

General part information

UF200 Series

Fan Tubeaxial 230VAC Square - 225mm L x 225mm H Ball 625.0 CFM (17.50m³/min) 4 Terminals

Documents

Technical documentation and resources

Tachometer and Alarm Output System

Datasheet

Blowers & Impellers Part Numbering

Datasheet

Specification	UF200BMB23-H2C2A-B1	UF200 Series

Air Flow	625 CFM	625 CFM
Air Flow	17.5 m³/min	17.5 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	370 mA	370 - 880 mA
Fan Type	Tubeaxial	Tubeaxial, Frameless
Features	Speed Sensor (Tach), Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Speed Sensor (Tach)
Material - Blade	Metal	Metal
Material - Frame	Metal	Metal
Noise	61 dB(A)	61 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	80 W	80 - 100 W
RPM	3000 RPM	3000 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	225 mm	225 mm
Size / Dimension [z]	225 mm	225 mm
Static Pressure	201.8 Pa	201.8 Pa
Static Pressure	0.81 in H2O	0.81 in H2O
Termination	4 Terminals	4 Terminals
Voltage - Rated	230 VAC	115 - 230 VAC
Weight	3 lb	3 lb
Weight	1.4 kg	1.4 kg
Width [y]	80 mm	80 mm

Part	Width [y]	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Voltage - Rated	Approval Agency	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Air Flow	Air Flow	Power (Watts)	Material - Blade	Weight	Weight	Termination	Static Pressure	Static Pressure	Bearing Type	RPM	Current Rating (Amps)	Noise	Features
Mechatronics Fan Group UF200BMB12-H2C2A	80 mm	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	Metal	115 VAC	CE, cUL, TUV, UL	Square	225 mm	225 mm	625 CFM	17.5 m³/min	100 W	Metal	3 lb	1.4 kg	4 Terminals	201.8 Pa	0.81 in H2O	Ball	3000 RPM	880 mA	61 dB(A)	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
Mechatronics Fan Group UF200BMB23-H2C2A-B1	80 mm	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	Metal	230 VAC	CE, cUL, TUV, UL	Square	225 mm	225 mm	625 CFM	17.5 m³/min	80 W	Metal	3 lb	1.4 kg	4 Terminals	201.8 Pa	0.81 in H2O	Ball	3000 RPM	370 mA	61 dB(A)	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)
Mechatronics Fan Group UF200BMB23-H2C2A	80 mm	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	Metal	230 VAC	CE, cUL, TUV, UL	Square	225 mm	225 mm	625 CFM	17.5 m³/min	80 W	Metal	3 lb	1.4 kg	4 Terminals	201.8 Pa	0.81 in H2O	Ball	3000 RPM	370 mA	61 dB(A)	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
Mechatronics Fan Group UF200BMB12-H2C2A-B1	80 mm	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	Metal	115 VAC	CE, cUL, TUV, UL	Square	225 mm	225 mm	625 CFM	17.5 m³/min	100 W	Metal	3 lb	1.4 kg	4 Terminals	201.8 Pa	0.81 in H2O	Ball	3000 RPM	880 mA	61 dB(A)	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)
Mechatronics Fan Group UF200BMB12-H2C2B	80 mm	Frameless, Tubeaxial	-20 °C	70 °C	-20 C	70 °C	Metal	115 VAC	CE, cUL, TUV, UL	Square	225 mm	225 mm	625 CFM	17.5 m³/min	100 W	Metal	3 lb	1.4 kg	4 Terminals	201.8 Pa	0.81 in H2O	Ball	3000 RPM	880 mA	61 dB(A)	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
