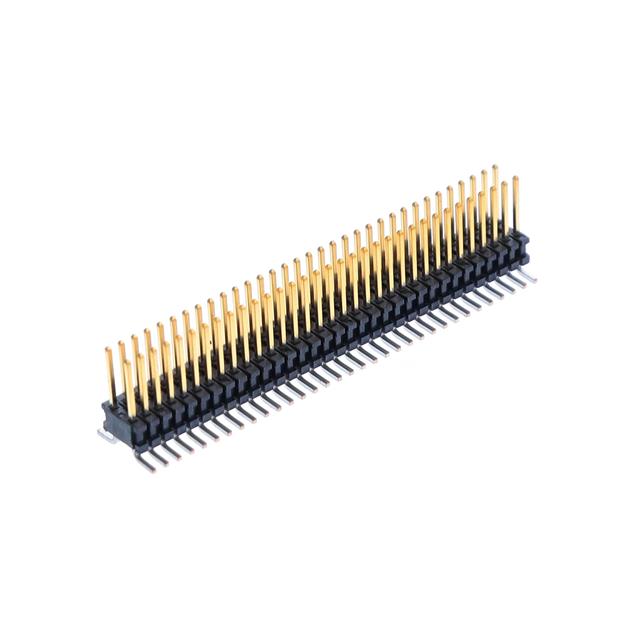

FTR-133-01-L-D

Active

Samtec Inc.

CONN HEADER SMD 66POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FTR Datasheet +2

FTR-133-01-L-D

Active

Samtec Inc.

CONN HEADER SMD 66POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet FTR Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTR-133-01-L-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	66
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

FTR-133 Series

Part	Current Rating (Amps)	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Termination	Contact Length - Mating	Contact Length - Mating	Mounting Type	Shrouding	Contact Shape	Contact Finish - Mating	Insulation Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Type	Number of Positions Loaded	Insulation Material	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Height	Insulation Height	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Length - Mating [x]	Contact Length - Mating
Samtec Inc. FTR-133-53-G-D	3.1 A	Gold	0.05 in	1.27 mm	Solder	0.285 in	7.24 mm	Surface Mount	Unshrouded	Square	Gold	Black	Header	-55 °C	125 °C	2	Male Pin	All	Liquid Crystal Polymer (LCP)	Push-Pull	3 µin	0.076 µm	Phosphor Bronze	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	66	10 çin	0.25 çm
Samtec Inc. FTR-133-01-G-D-A	3.1 A	Gold	0.05 in	1.27 mm	Solder		5.84 mm	Surface Mount	Unshrouded	Square	Gold	Black	Header	-55 °C	125 °C	2	Male Pin	All	Liquid Crystal Polymer (LCP)	Push-Pull	3 µin	0.076 µm	Phosphor Bronze	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	66	10 çin	0.25 çm	Board Guide	0.23 in
Samtec Inc. FTR-133-53-G-D-P	3.1 A	Gold	0.05 in	1.27 mm	Solder	0.285 in	7.24 mm	Surface Mount	Unshrouded	Square	Gold	Black	Header	-55 °C	125 °C	2	Male Pin	All	Liquid Crystal Polymer (LCP)	Push-Pull	3 µin	0.076 µm	Phosphor Bronze	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	66	10 çin	0.25 çm	Pick and Place
Samtec Inc. FTR-133-57-G-D	3.1 A	Gold	0.05 in	1.27 mm	Solder		0.43 in	Surface Mount	Unshrouded	Square	Gold	Black	Header	-55 °C	125 °C	2	Male Pin	All	Liquid Crystal Polymer (LCP)	Push-Pull	3 µin	0.076 µm	Phosphor Bronze	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	66	10 çin	0.25 çm			10.92 mm
Samtec Inc. FTR-133-53-G-D-P-TR	3.1 A	Gold	0.05 in	1.27 mm	Solder	0.285 in	7.24 mm	Surface Mount	Unshrouded	Square	Gold	Black	Header	-55 °C	125 °C	2	Male Pin	All	Liquid Crystal Polymer (LCP)	Push-Pull	3 µin	0.076 µm	Phosphor Bronze	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	66	10 çin	0.25 çm	Pick and Place
Samtec Inc. FTR-133-03-G-D-P	3.1 A	Gold	0.05 in	1.27 mm	Solder	0.125 in	3.18 mm	Surface Mount	Unshrouded	Square	Gold	Black	Header	-55 °C	125 °C	2	Male Pin	All	Liquid Crystal Polymer (LCP)	Push-Pull	3 µin	0.076 µm	Phosphor Bronze	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	66	10 çin	0.25 çm	Pick and Place
Samtec Inc. FTR-133-51-G-S	3.1 A	Gold	0.05 in	1.27 mm	Solder	0.19 "	4.83 mm	Surface Mount	Unshrouded	Square	Gold	Black	Header	-55 °C	125 °C	1	Male Pin	All	Liquid Crystal Polymer (LCP)	Push-Pull	3 µin	0.076 µm	Phosphor Bronze	0.1 in	2.54 mm	UL94 V-0			33	10 çin	0.25 çm
Samtec Inc. FTR-133-01-L-D	3.1 A	Tin	0.05 in	1.27 mm	Solder		5.84 mm	Surface Mount	Unshrouded	Square	Gold	Black	Header	-55 °C	125 °C	2	Male Pin	All	Liquid Crystal Polymer (LCP)	Push-Pull			Phosphor Bronze	0.1 in	2.54 mm	UL94 V-0	2.54 mm	0.1 in	66	10 çin	0.25 çm		0.23 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	13	$ 11.13
