Description
General part information
628-M25 Series

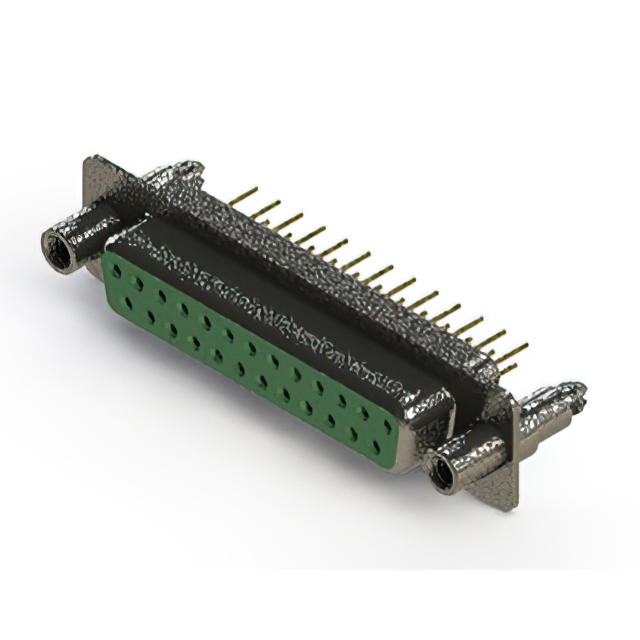

25 Position D-Sub Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 628-M25-221-GN6 |
|---|---|
| Color | Green |
| Connector Layout | DB, B |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Contact Form | Machined |
| Contact Material | Copper Alloy |
| Contact Type | Signal, Power |
| Current Rating (Per Contact) | 5 A |
| Dielectric Material | Nylon 6T, Polyamide (PA6T) |
| Features | Shielded, Board Lock |
| Finish | Nickel Plated |
| Flange Feature | Mating Side (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Material | Steel |
| Shell Size | 3 |
| Termination | Solder |
