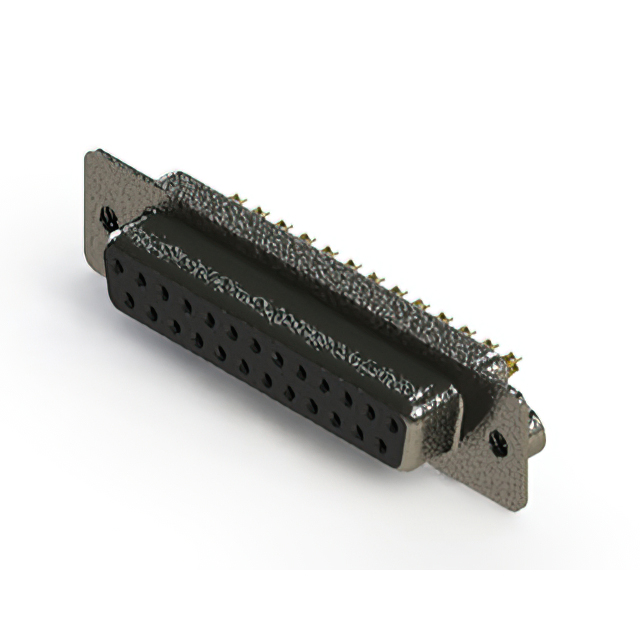

628-M25-222-BT2

Active

EDAC Inc.

VERTICAL MACHINED D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-M25-222-BT2

Active

EDAC Inc.

VERTICAL MACHINED D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-M25-222-BT2

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3

628-M25 Series

...

Part	Features	Material Flammability Rating	Number of Rows	Connector Style	Mounting Type	Contact Type	Dielectric Material	Contact Finish	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish Thickness	Flange Feature	Termination	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish
EDAC Inc. 628-M25-222-BT2	Shielded	UL94 V-0	2	D-Sub	Free Hanging (In-Line)	Signal and Power	Polyamide (PA6T) Nylon 6T	Gold	5 A	B DB	3	Black	Copper Alloy	-55 °C	125 °C	Receptacle Female Sockets	Flash	Housing/Shell (4-40)
EDAC Inc. 628-M25-323-WT6	Board Lock Shielded	UL94 V-0	2	D-Sub	Through Hole	Signal and Power	Polyamide (PA6T) Nylon 6T	Gold	5 A	B DB	3	White	Copper Alloy	-55 °C	125 °C	Receptacle Female Sockets		4-40	Solder	15 µin	0.38 µm
EDAC Inc. 628-M25-221-GN4	Board Lock Shielded	UL94 V-0	2	D-Sub	Through Hole	Signal and Power	Polyamide (PA6T) Nylon 6T	Gold	5 A	B DB	3	Green	Copper Alloy	-55 °C	125 °C	Receptacle Female Sockets	Flash	4-40	Solder			Nickel Plated Steel
EDAC Inc. 628-M25-222-WN1	Shielded	UL94 V-0	2	D-Sub	Free Hanging (In-Line)	Signal and Power	Polyamide (PA6T) Nylon 6T	Gold	5 A	B DB	3	White	Copper Alloy	-55 °C	125 °C	Receptacle Female Sockets	Flash	Housing/Shell (Unthreaded)				Nickel Plated Steel
EDAC Inc. 628-M25-323-WT2	Shielded	UL94 V-0	2	D-Sub	Through Hole	Signal and Power	Polyamide (PA6T) Nylon 6T	Gold	5 A	B DB	3	White	Copper Alloy	-55 °C	125 °C	Receptacle Female Sockets		Housing/Shell (4-40)	Solder	15 µin	0.38 µm
EDAC Inc. 628-M25-621-BT4	Board Lock Shielded	UL94 V-0	2	D-Sub	Through Hole	Signal and Power	Polyamide (PA6T) Nylon 6T	Gold	5 A	B DB	3	Black	Copper Alloy	-55 °C	125 °C	Receptacle Female Sockets		4-40	Solder	30 Áin	0.76 Ám
EDAC Inc. 628-M25-621-LT6	Board Lock Shielded	UL94 V-0	2	D-Sub	Through Hole	Signal and Power	Polyamide (PA6T) Nylon 6T	Gold	5 A	B DB	3	Blue	Copper Alloy	-55 °C	125 °C	Receptacle Female Sockets		4-40	Solder	30 Áin	0.76 Ám
EDAC Inc. 628-M25-621-LN2	Shielded	UL94 V-0	2	D-Sub	Through Hole	Signal and Power	Polyamide (PA6T) Nylon 6T	Gold	5 A	B DB	3	Blue	Copper Alloy	-55 °C	125 °C	Receptacle Female Sockets		Housing/Shell (4-40)	Solder	30 Áin	0.76 Ám	Nickel Plated Steel
EDAC Inc. 628-M25-321-LT4	Board Lock Shielded	UL94 V-0	2	D-Sub	Through Hole	Signal and Power	Polyamide (PA6T) Nylon 6T	Gold	5 A	B DB	3	Blue	Copper Alloy	-55 °C	125 °C	Receptacle Female Sockets		4-40	Solder	15 µin	0.38 µm
EDAC Inc. 628-M25-323-GT4	Board Lock Shielded	UL94 V-0	2	D-Sub	Through Hole	Signal and Power	Polyamide (PA6T) Nylon 6T	Gold	5 A	B DB	3	Green	Copper Alloy	-55 °C	125 °C	Receptacle Female Sockets		4-40	Solder	15 µin	0.38 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 6.52
Newark	Each	100	$ 6.54
		250	$ 6.38
		500	$ 6.15

Description

General part information

628-M25 Series

25 Position D-Sub Receptacle, Female Sockets Connector
