628-M25-621-BT4
ActiveEDAC Inc.
628M SERIES VERTICAL D-SUB RECEP
Deep-Dive with AI
Search across all available documentation for this part.
628-M25-621-BT4
ActiveEDAC Inc.
628M SERIES VERTICAL D-SUB RECEP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 628-M25-621-BT4 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Shielded, Board Lock |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
628-M25 Series
...
| Part | Features | Material Flammability Rating | Number of Rows | Connector Style | Mounting Type | Contact Type | Dielectric Material | Contact Finish | Current Rating (Amps) | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Finish Thickness | Flange Feature | Termination | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Shielded | UL94 V-0 | 2 | D-Sub | Free Hanging (In-Line) | Signal and Power | Polyamide (PA6T) Nylon 6T | Gold | 5 A | B DB | 3 | Black | Copper Alloy | -55 °C | 125 °C | Receptacle Female Sockets | Flash | Housing/Shell (4-40) | ||||
EDAC Inc. | Board Lock Shielded | UL94 V-0 | 2 | D-Sub | Through Hole | Signal and Power | Polyamide (PA6T) Nylon 6T | Gold | 5 A | B DB | 3 | White | Copper Alloy | -55 °C | 125 °C | Receptacle Female Sockets | 4-40 | Solder | 15 µin | 0.38 µm | ||
EDAC Inc. | Board Lock Shielded | UL94 V-0 | 2 | D-Sub | Through Hole | Signal and Power | Polyamide (PA6T) Nylon 6T | Gold | 5 A | B DB | 3 | Green | Copper Alloy | -55 °C | 125 °C | Receptacle Female Sockets | Flash | 4-40 | Solder | Nickel Plated Steel | ||
EDAC Inc. | Shielded | UL94 V-0 | 2 | D-Sub | Free Hanging (In-Line) | Signal and Power | Polyamide (PA6T) Nylon 6T | Gold | 5 A | B DB | 3 | White | Copper Alloy | -55 °C | 125 °C | Receptacle Female Sockets | Flash | Housing/Shell (Unthreaded) | Nickel Plated Steel | |||
EDAC Inc. | Shielded | UL94 V-0 | 2 | D-Sub | Through Hole | Signal and Power | Polyamide (PA6T) Nylon 6T | Gold | 5 A | B DB | 3 | White | Copper Alloy | -55 °C | 125 °C | Receptacle Female Sockets | Housing/Shell (4-40) | Solder | 15 µin | 0.38 µm | ||
EDAC Inc. | Board Lock Shielded | UL94 V-0 | 2 | D-Sub | Through Hole | Signal and Power | Polyamide (PA6T) Nylon 6T | Gold | 5 A | B DB | 3 | Black | Copper Alloy | -55 °C | 125 °C | Receptacle Female Sockets | 4-40 | Solder | 30 Áin | 0.76 Ám | ||
EDAC Inc. | Board Lock Shielded | UL94 V-0 | 2 | D-Sub | Through Hole | Signal and Power | Polyamide (PA6T) Nylon 6T | Gold | 5 A | B DB | 3 | Blue | Copper Alloy | -55 °C | 125 °C | Receptacle Female Sockets | 4-40 | Solder | 30 Áin | 0.76 Ám | ||
EDAC Inc. | Shielded | UL94 V-0 | 2 | D-Sub | Through Hole | Signal and Power | Polyamide (PA6T) Nylon 6T | Gold | 5 A | B DB | 3 | Blue | Copper Alloy | -55 °C | 125 °C | Receptacle Female Sockets | Housing/Shell (4-40) | Solder | 30 Áin | 0.76 Ám | Nickel Plated Steel | |
EDAC Inc. | Board Lock Shielded | UL94 V-0 | 2 | D-Sub | Through Hole | Signal and Power | Polyamide (PA6T) Nylon 6T | Gold | 5 A | B DB | 3 | Blue | Copper Alloy | -55 °C | 125 °C | Receptacle Female Sockets | 4-40 | Solder | 15 µin | 0.38 µm | ||
EDAC Inc. | Board Lock Shielded | UL94 V-0 | 2 | D-Sub | Through Hole | Signal and Power | Polyamide (PA6T) Nylon 6T | Gold | 5 A | B DB | 3 | Green | Copper Alloy | -55 °C | 125 °C | Receptacle Female Sockets | 4-40 | Solder | 15 µin | 0.38 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 500 | $ 14.91 | |
Description
General part information
628-M25 Series

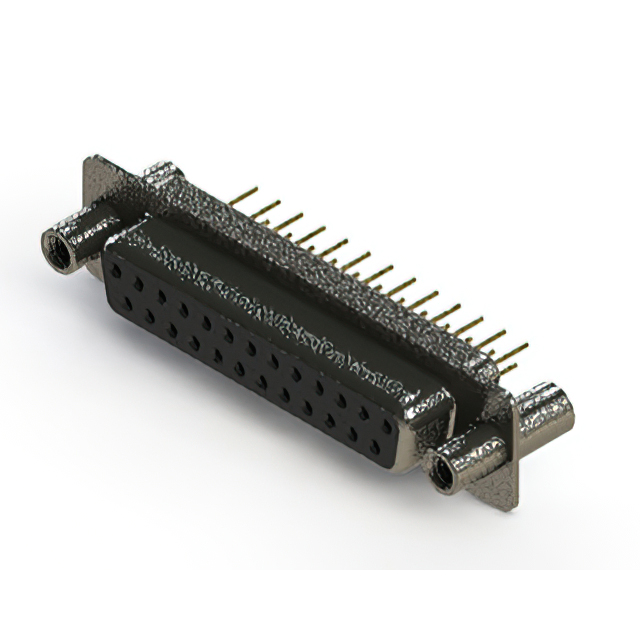

25 Position D-Sub Receptacle, Female Sockets Connector
