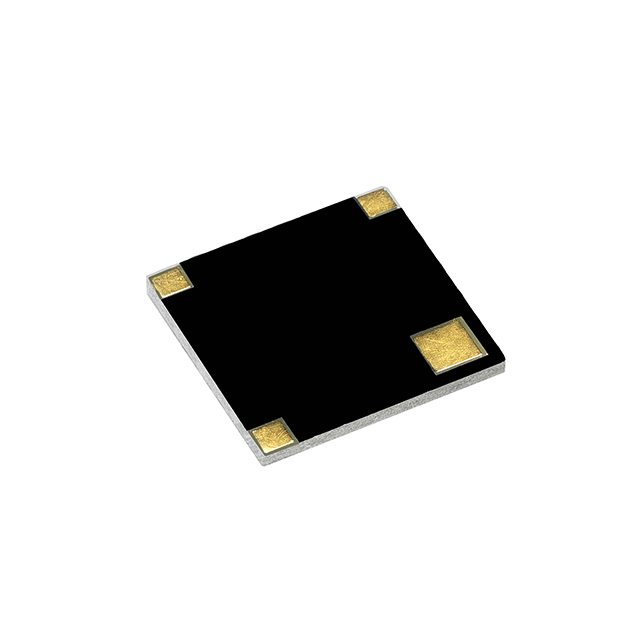

NN01-103

Obsolete

Ignion

GEOFIND - 103

Search across all available documentation for this part.

Obsolete

Ignion

GEOFIND - 103

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NN01-103	NN01 Series

Antenna Type	Chip	Chip
Applications	GLONASS, GPS, Beidou	802.11a/b/g/n, WLAN, Bluetooth, Zigbee™, GLONASS, GPS, Beidou
Frequency (Center/Band)	1.575 GHz, 1.602 GHz, 1.561 GHz	1.561 - 1672.5 GHz
Frequency Group	UHF	VHF, UHF
Frequency Group	-	4 GHz
Frequency Group [Max]	2 GHz	2 - 3 GHz
Frequency Group [Min]	1 GHz	1 - 2 GHz
Frequency Range [Max]	1.606 GHz	1.606 - 698 GHz
Frequency Range [Min]	1.598 GHz	1.598 - 470 GHz
Gain	1.4 dBi, 1.3 dBi, 1.2 dBi	1.2 - 2 dBic
Height (Max)	-	0.189 in
Height (Max)	-	4.8 mm
Height (Max) [Max]	0.035 in	0.035 - 0.079 in
Height (Max) [Max]	0.9 mm	0.9 - 2 mm
Mounting Type	Surface Mount	Surface Mount
Number of Bands	3	1 - 3
RF Family/Standard	Navigation	WiFi, General ISM, Bluetooth, 802.15.4, Navigation
Termination	Solder	Solder
VSWR	2	2

DUAL-BAND REACH XTEND - 003

Part	Number of Bands	Mounting Type	Antenna Type	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Frequency Range [Min]	Frequency Range [Max]	Frequency (Center/Band)	Applications	RF Family/Standard	Termination	VSWR	Height (Max) [Max]	Height (Max) [Max]	Gain	Height (Max) [z]	Height (Max)	Frequency Group
Ignion NN01-003	2	Surface Mount	Chip	4 GHz	2 GHz	3 GHz	2.4 GHz, 4.9 GHz	2.5 GHz, 5.875 GHz	2.45 GHz, 5.3875 GHz	802.11a/b/g/n, WLAN	WiFi	Solder	2	0.035 in	0.9 mm
Ignion NN01-047	2	Surface Mount	Chip				1.67 GHz, 470 MHz	1.675 GHz, 698 MHz	584 MHz, 1672.5 GHz		General ISM	Solder				2 dBic	0.189 in	4.8 mm
Ignion NN01-102	1	Surface Mount	Chip				2.4 GHz	2.5 GHz		Bluetooth, WLAN, Zigbee™	802.15.4, Bluetooth, WiFi	Solder	2	0.079 in	2 mm	1.7 dBi
Ignion NN01-054	1	Surface Mount	Chip				180 MHz	220 MHz	200 MHz		General ISM	Solder		0.063 in	1.6 mm				VHF
Ignion NN01-103	3	Surface Mount	Chip		1 GHz	2 GHz	1.598 GHz	1.606 GHz	1.561 GHz, 1.575 GHz, 1.602 GHz	Beidou, GLONASS, GPS	Navigation	Solder	2	0.035 in	0.9 mm	1.2 dBi, 1.3 dBi, 1.4 dBi			UHF
Ignion NN01-055	1	Surface Mount	Chip				78 MHz	108 MHz	93 MHz			Solder		0.063 in	1.6 mm				VHF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF ANTENNA Beidou, GLONASS, GPS Chip Solder Surface Mount
