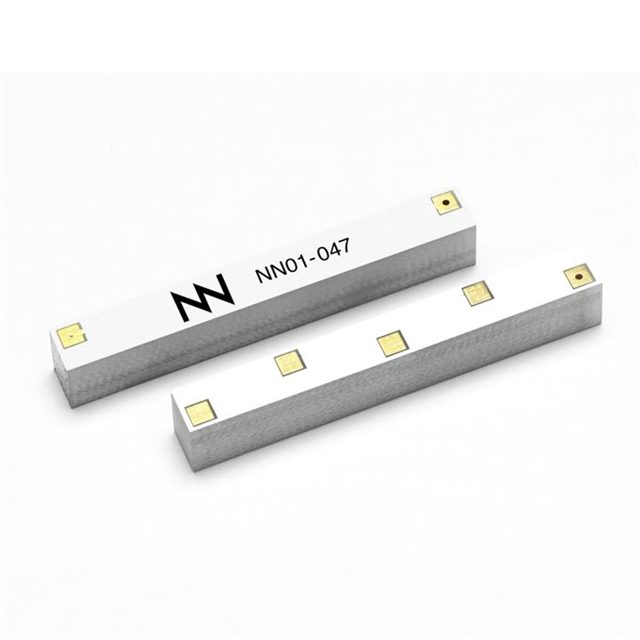

NN01-047

Obsolete

Ignion

TVNOW - 047

Search across all available documentation for this part.

Obsolete

Ignion

TVNOW - 047

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF ANTENNA Chip Solder Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	NN01-047	NN01 Series

Antenna Type	Chip	Chip
Applications	-	802.11a/b/g/n, WLAN, Bluetooth, Zigbee™, GLONASS, GPS, Beidou
Frequency (Center/Band)	1672.5 GHz, 584 MHz	1.561 - 1672.5 GHz
Frequency Group	-	4 GHz
Frequency Group	-	1 - 2 GHz
Frequency Group	-	2 - 3 GHz
Frequency Group	-	VHF, UHF
Frequency Range [Max]	698 MHz, 1.675 GHz	1.606 - 698 GHz
Frequency Range [Min]	1.67 GHz, 470 MHz	1.598 - 470 GHz
Gain	2 dBic	1.2 - 2 dBic
Height (Max)	4.8 mm	4.8 mm
Height (Max)	-	0.035 - 0.079 in
Height (Max)	-	0.9 - 2 mm
Height (Max) [z]	0.189 in	0.189 in
Mounting Type	Surface Mount	Surface Mount
Number of Bands	2	1 - 3
RF Family/Standard	General ISM	WiFi, General ISM, Bluetooth, 802.15.4, Navigation
Termination	Solder	Solder
VSWR	-	2

DUAL-BAND REACH XTEND - 003

Part	Number of Bands	Mounting Type	Antenna Type	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Frequency Range [Min]	Frequency Range [Max]	Frequency (Center/Band)	Applications	RF Family/Standard	Termination	VSWR	Height (Max) [Max]	Height (Max) [Max]	Gain	Height (Max) [z]	Height (Max)	Frequency Group
Ignion NN01-003	2	Surface Mount	Chip	4 GHz	2 GHz	3 GHz	2.4 GHz, 4.9 GHz	2.5 GHz, 5.875 GHz	2.45 GHz, 5.3875 GHz	802.11a/b/g/n, WLAN	WiFi	Solder	2	0.035 in	0.9 mm
Ignion NN01-047	2	Surface Mount	Chip				1.67 GHz, 470 MHz	1.675 GHz, 698 MHz	584 MHz, 1672.5 GHz		General ISM	Solder				2 dBic	0.189 in	4.8 mm
Ignion NN01-102	1	Surface Mount	Chip				2.4 GHz	2.5 GHz		Bluetooth, WLAN, Zigbee™	802.15.4, Bluetooth, WiFi	Solder	2	0.079 in	2 mm	1.7 dBi
Ignion NN01-054	1	Surface Mount	Chip				180 MHz	220 MHz	200 MHz		General ISM	Solder		0.063 in	1.6 mm				VHF
Ignion NN01-103	3	Surface Mount	Chip		1 GHz	2 GHz	1.598 GHz	1.606 GHz	1.561 GHz, 1.575 GHz, 1.602 GHz	Beidou, GLONASS, GPS	Navigation	Solder	2	0.035 in	0.9 mm	1.2 dBi, 1.3 dBi, 1.4 dBi			UHF
Ignion NN01-055	1	Surface Mount	Chip				78 MHz	108 MHz	93 MHz			Solder		0.063 in	1.6 mm				VHF
