CC3235SM2RGKR

Active

Texas Instruments

SIMPLELINK™ 32-BIT ARM CORTEX-M4 DUAL-BAND WI-FI® WIRELESS MCU WITH 256KB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSimpleLink™ Wi-Fi® CC3x20, CC3x3x Radio Tool User Guide (Rev. B)Top 3 design challenges that the new generation of SimpleLink Wi-Fi devices will +38

CC3235SM2RGKR

Active

Texas Instruments

SIMPLELINK™ 32-BIT ARM CORTEX-M4 DUAL-BAND WI-FI® WIRELESS MCU WITH 256KB RAM

Deep-Dive with AI

DocumentsSimpleLink™ Wi-Fi® CC3x20, CC3x3x Radio Tool User Guide (Rev. B)Top 3 design challenges that the new generation of SimpleLink Wi-Fi devices will +38

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CC3235SM2RGKR

Current - Receiving	59 mA
Current - Transmitting	272 mA
Data Rate (Max) [Max]	54 Mbps
Frequency [Max]	5.825 GHz, 2.472 GHz
Frequency [Min]	5.18 GHz, 2.412 GHz
GPIO	21
Memory Size	256 kB
Modulation	DSSS, OFDM, CCK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

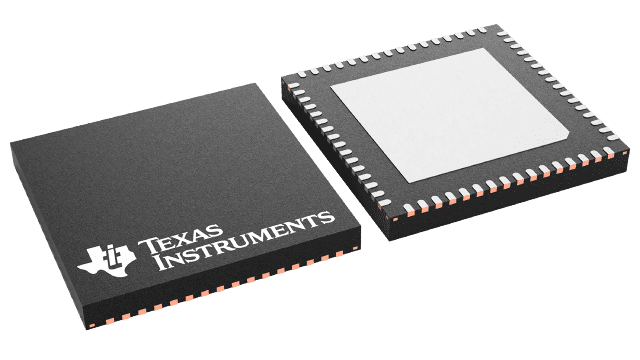

Package / Case	64-VFQFN Exposed Pad
Power - Output	18.3 dBm
Protocol	802.11a/b/g/n
RF Family/Standard	WiFi
Serial Interfaces	I2C, I2S, PWM, ADC, JTAG, UART, SPI
Supplier Device Package	64-VQFN (9x9)
Type	TxRx + MCU
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.1 V

CC3235S Series

SimpleLink™ 32-bit Arm Cortex-M4 dual-band Wi-Fi® wireless MCU with 256kB RAM

Part	RF Family/Standard	Mounting Type	Memory Size	Package / Case	GPIO	Frequency [Min]	Frequency [Max]	Power - Output	Data Rate (Max) [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Serial Interfaces	Protocol	Type	Modulation	Current - Receiving	Current - Transmitting	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
Texas Instruments CC3235SM2RGKR	WiFi	Surface Mount	256 kB	64-VFQFN Exposed Pad	21	2.412 GHz, 5.18 GHz	2.472 GHz, 5.825 GHz	18.3 dBm	54 Mbps	2.1 V	3.6 V	ADC, I2C, I2S, JTAG, PWM, SPI, UART	802.11a/b/g/n	TxRx + MCU	CCK, DSSS, OFDM	59 mA	272 mA	64-VQFN (9x9)	85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.84
		10	$ 6.28
		25	$ 5.70
		100	$ 5.13
		250	$ 5.02
	Digi-Reel®	1	$ 6.84
		10	$ 6.28
		25	$ 5.70
		100	$ 5.13
		250	$ 5.02
	Tape & Reel (TR)	2500	$ 5.02
Texas Instruments	LARGE T&R	1	$ 7.39
		100	$ 6.03
		250	$ 4.74
		1000	$ 4.02

Description

General part information

CC3235S Series

The dual-band wireless MCU CC3235x device comes in two variants, CC3235S and C3235SF.

Simplify your IoT design with a Wi-Fi CERTIFIED™ wireless microcontroller (MCU). TheSimpleLink™ Wi-Fi®CC3235x device family is a dual-band system-on-chip (SoC) solution that integrates two processors within a single chip, including:

These devices introduce new capabilities that further simplify the connectivity of things to the Internet. The main new features include:

Documents

Technical documentation and resources

SimpleLink™ Wi-Fi® CC3x20, CC3x3x Radio Tool User Guide (Rev. B)

User guide

Top 3 design challenges that the new generation of SimpleLink Wi-Fi devices will

Technical article

CE Regulations for SRDs Operating in License-Free 2.4GHz/5GHz Bands-WiFi Devices (Rev. A)

Application note

CC3235S and CC3235SF SimpleLink™ Wi-Fi® , Dual-Band, Single-Chip Solution datasheet (Rev. E)

Data sheet

무선 연결 기술 선택 가이드 (Rev. B)

Selection guide

Low-Power Internet Connectivity Over Wi-Fi (Rev. A)

White paper

SimpleLink™ Wi-Fi® CC323x Technical Reference Manual (Rev. A)

User guide

How Wi-Fi® and Bluetooth® Low Energy can coexist in building automation and medic

Technical article

LAUNCHXL-CC3235S Declaration of Conformity (DoC) (Rev. A)

Certificate

Transfer of TI Wi-Fi® Alliance Certifications to Products Using WFA Cert Policy (Rev. F)

Application note

CC3135, CC3235 SimpleLink™ Wi-Fi® and IoT Solution Layout Guidelines

User guide

CC323x Production Line Guide (Rev. A)

Application note

無線連線技術選擇指南 (Rev. B)

Selection guide

A primer to Wi-Fi® provisioning for IoT applications (Rev. A)

White paper

CE Compliance Test Procedure for TI’s WiFi Devices

Application note

CC3x20, CC3x35 SimpleLink™ Wi-Fi® Internet-on-a chip™ Solution Built-In Security (Rev. C)

Application note

UniFlash CC3x20, CC3x3x SimpleLink™ Wi-Fi® and IoC™ Solution ImageCreator (Rev. H)

User guide

SimpleLink™ Wi-Fi® CC3x20, CC3x3x Over-the-Air Update (Rev. B)

Application note

Implementing Wi-Fi® connectivity for grid protection and control

Technical article

TI Wi-Fi Test Strategy Overview (Rev. A)

Application note

SimpleLink™ Wi-Fi® CC3x20 and CC3x3x Provisioning for Mobile Applications (Rev. B)

User guide

TI-RTOS 2.16 for CC32xx SimpleLink Wireless MCUs Getting Started Guide (Rev. F)

User guide
