SN65LVDS387EVM
ActiveTexas Instruments
EVALUATION MOD FOR SN65LVDS387
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SN65LVDS387EVM
ActiveTexas Instruments
EVALUATION MOD FOR SN65LVDS387
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SN65LVDS387EVM | 65LVDS387 Series |
|---|---|---|
| Contents | Board(s) | Board(s) |
| Data Rate | - | 630 Mbps |
| Embedded | False | False |
| Function | LVDS | LVDS |
| Mounting Type | - | Surface Mount |
| Number of Drivers/Receivers | - | 0 |
| Number of Drivers/Receivers | - | 16 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 0.24 in |
| Package / Case | - | 6.1 mm |
| Package / Case | - | 64-TFSOP |
| Primary Attributes | 630 Mbps, 16 | 16 - 630 Mbps |
| Protocol | - | LVDS |
| Secondary Attributes | 2.9 ns, 35 mW, 150 ps | 2.9 - 150 ns |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 64-TSSOP |
| Type | Interface | Driver, Interface |
| Utilized IC / Part | SN65LVDS387 | SN65LVDS387 |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.80 | |
65LVDS387 Series
IC DRIVER 16/0 64TSSOP
| Part | Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Protocol | Mounting Type | Number of Drivers/Receivers [custom] | Number of Drivers/Receivers [custom] | Package / Case [x] | Package / Case | Package / Case | Data Rate | Primary Attributes | Utilized IC / Part | Supplied Contents | Embedded | Function | Secondary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments SN65LVDS387DGG | Driver | 3.6 V | 3 V | 85 °C | -40 °C | 64-TSSOP | LVDS | Surface Mount | 0 | 16 | 0.24 in | 6.1 mm | 64-TFSOP | 630 Mbps | |||||||
Texas Instruments SN65LVDS387DGGRG4 | Driver | 3.6 V | 3 V | 85 °C | -40 °C | 64-TSSOP | LVDS | Surface Mount | 0 | 16 | 0.24 in | 6.1 mm | 64-TFSOP | 630 Mbps | |||||||
Texas Instruments SN65LVDS387DGGG4 | Driver | 3.6 V | 3 V | 85 °C | -40 °C | 64-TSSOP | LVDS | Surface Mount | 0 | 16 | 0.24 in | 6.1 mm | 64-TFSOP | 630 Mbps | |||||||
Texas Instruments SN65LVDS387EVM | Interface | 16, 630 Mbps | SN65LVDS387 | Board(s) | LVDS | 2.9 ns, 35 mW, 150 ps | Board(s) | ||||||||||||||
Texas Instruments SN65LVDS387DGGR | Driver | 3.6 V | 3 V | 85 °C | -40 °C | 64-TSSOP | LVDS | Surface Mount | 0 | 16 | 0.24 in | 6.1 mm | 64-TFSOP | 630 Mbps |
Description
General part information
65LVDS387 Series

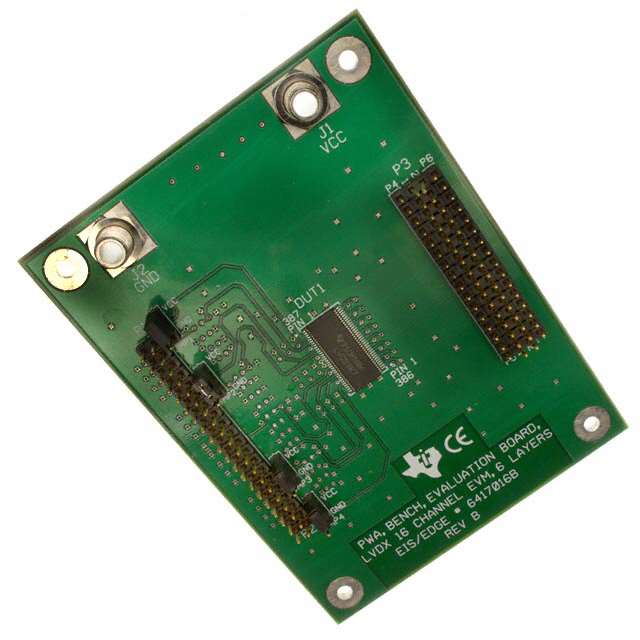

SN65LVDS387 LVDS Interface Evaluation Board
