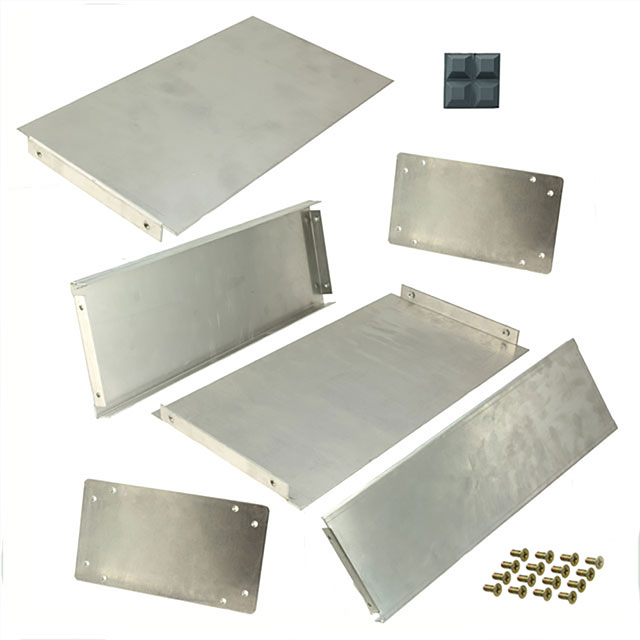

UPS 525-17-12 PLAIN

Active

LMB Heeger Inc.

CABINET ALUM 11.875"L X 16.75"W

Search across all available documentation for this part.

Active

LMB Heeger Inc.

CABINET ALUM 11.875"L X 16.75"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UPS 525-17-12 PLAIN	UPS 525 Series

Area (L x W)	199 in˛	94.5 - 199 in˛
Area (L x W)	1284 cm˛	610 - 1284 cm˛
Color	Unpainted	Unpainted, Blue, White
Container Type	Cabinet	Cabinet
Design	End Panel(s)	End Panel(s)
Features	Separate Panel or Cover Thickness	Separate Panel or Cover Thickness
Height [z]	128.6 mm	128.6 mm
Height [z]	5.063 in	5.063 in
Material	Metal, Aluminum	Metal, Aluminum
Size / Dimension [x]	16.75 "	13.75 - 16.75 "
Size / Dimension [x]	425.45 mm	349.25 - 425.45 mm
Size / Dimension [y]	11.875 in	6.875 - 11.875 in
Size / Dimension [y]	301.63 mm	174.63 - 301.63 mm
Thickness	0.063 "	0.063 "
Thickness	1.6 mm	1.6 mm

CABINET ALUM 11.875"L X 16.75"W

Part	Area (L x W)	Area (L x W)	Thickness	Thickness	Color	Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Container Type	Features	Design	Height [z]	Height [z]
LMB Heeger Inc. UPS 525-17-12 PLAIN	199 in˛	1284 cm˛	0.063 "	1.6 mm	Unpainted	Aluminum, Metal	11.875 in	301.63 mm	16.75 "	425.45 mm	Cabinet	Separate Panel or Cover Thickness	End Panel(s)	128.6 mm	5.063 in
LMB Heeger Inc. UPS 525-14-7 PLAIN	94.5 in˛	610 cm˛	0.063 "	1.6 mm	Unpainted	Aluminum, Metal	6.875 in	174.63 mm	13.75 "	349.25 mm	Cabinet	Separate Panel or Cover Thickness	End Panel(s)	128.6 mm	5.063 in
LMB Heeger Inc. UPS 525-14-7-BLUE/WHITE	94.5 in˛	610 cm˛	0.063 "	1.6 mm	Blue, White	Aluminum, Metal	6.875 in	174.63 mm	13.75 "	349.25 mm	Cabinet	Separate Panel or Cover Thickness	End Panel(s)	128.6 mm	5.063 in
LMB Heeger Inc. UPS 525-17-9 PLAIN	149 in˛	961 cm˛	0.063 "	1.6 mm	Unpainted	Aluminum, Metal	8.875 "	225.43 mm	16.75 "	425.45 mm	Cabinet	Separate Panel or Cover Thickness	End Panel(s)	128.6 mm	5.063 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 156.14

General part information

Cabinet Metal, Aluminum Unpainted End Panel(s) 16.750" L x 11.875" W (425.45mm x 301.63mm) X 5.063" (128.60mm)

Technical documentation and resources

No documents available
