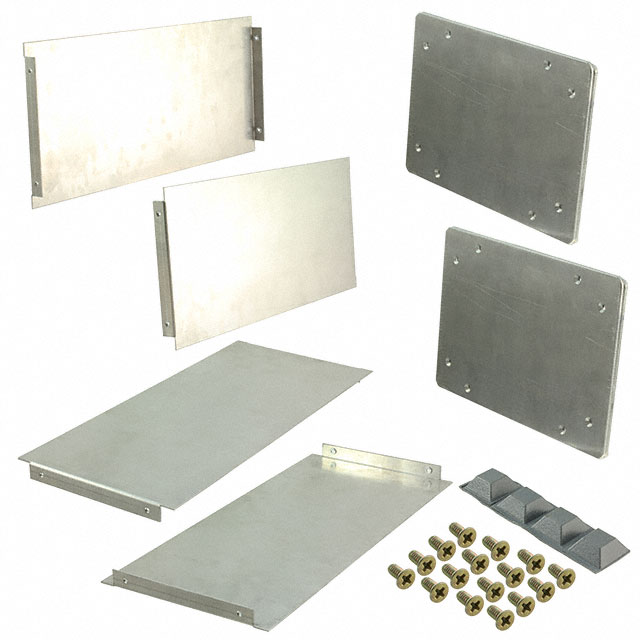

UPS 525-14-7 PLAIN

Active

LMB Heeger Inc.

CABINET ALUM 13.75"L X 6.88"W

Search across all available documentation for this part.

Active

LMB Heeger Inc.

CABINET ALUM 13.75"L X 6.88"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 107.61

General part information

Cabinet Metal, Aluminum Unpainted End Panel(s) 13.750" L x 6.875" W (349.25mm x 174.63mm) X 5.063" (128.60mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	UPS 525-14-7 PLAIN	UPS 525 Series

Area (L x W)	610 cm˛	610 - 1284 cm˛
Area (L x W)	94.5 in˛	94.5 - 199 in˛
Color	Unpainted	Unpainted, Blue, White
Container Type	Cabinet	Cabinet
Design	End Panel(s)	End Panel(s)
Features	Separate Panel or Cover Thickness	Separate Panel or Cover Thickness
Height [z]	128.6 mm	128.6 mm
Height [z]	5.063 in	5.063 in
Material	Metal, Aluminum	Metal, Aluminum
Size / Dimension [x]	13.75 "	13.75 - 16.75 "
Size / Dimension [x]	349.25 mm	349.25 - 425.45 mm
Size / Dimension [y]	174.63 mm	174.63 - 301.63 mm
Size / Dimension [y]	6.875 in	6.875 - 11.875 in
Thickness	0.063 "	0.063 "
Thickness	1.6 mm	1.6 mm

CABINET ALUM 11.875"L X 16.75"W

Part	Area (L x W)	Area (L x W)	Thickness	Thickness	Color	Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Container Type	Features	Design	Height [z]	Height [z]
LMB Heeger Inc. UPS 525-17-12 PLAIN	199 in˛	1284 cm˛	0.063 "	1.6 mm	Unpainted	Aluminum, Metal	11.875 in	301.63 mm	16.75 "	425.45 mm	Cabinet	Separate Panel or Cover Thickness	End Panel(s)	128.6 mm	5.063 in
LMB Heeger Inc. UPS 525-14-7 PLAIN	94.5 in˛	610 cm˛	0.063 "	1.6 mm	Unpainted	Aluminum, Metal	6.875 in	174.63 mm	13.75 "	349.25 mm	Cabinet	Separate Panel or Cover Thickness	End Panel(s)	128.6 mm	5.063 in
LMB Heeger Inc. UPS 525-14-7-BLUE/WHITE	94.5 in˛	610 cm˛	0.063 "	1.6 mm	Blue, White	Aluminum, Metal	6.875 in	174.63 mm	13.75 "	349.25 mm	Cabinet	Separate Panel or Cover Thickness	End Panel(s)	128.6 mm	5.063 in
LMB Heeger Inc. UPS 525-17-9 PLAIN	149 in˛	961 cm˛	0.063 "	1.6 mm	Unpainted	Aluminum, Metal	8.875 "	225.43 mm	16.75 "	425.45 mm	Cabinet	Separate Panel or Cover Thickness	End Panel(s)	128.6 mm	5.063 in
