10-2524.3045
ActiveEAO

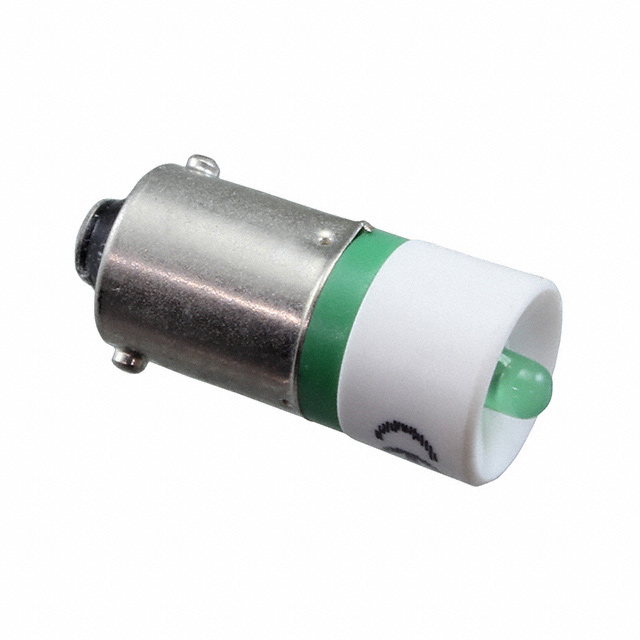

CONFIG SWITCH LAMP LED GRN 130V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10-2524.3045
ActiveEAO
CONFIG SWITCH LAMP LED GRN 130V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10-2524.3045 | 10-2524 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 10 | 10 |
| (Select First, Then Apply Filters) Compatible Series | EAO | EAO |
| Applications | - | General Purpose Lighting |
| Base Type | - | Miniature Bayonet (BA9S) |
| Can Replace Lamps | - | Multiple Miniature Bayonet Lamps |
| Color | Green | White, Green |
| Configuration | - | Single |
| Millicandela Rating | - | 225 mcd |
| Size / Dimension | - | 0.394 in |
| Size / Dimension | - | 1.142 inches |
| Size / Dimension | - | 10 mm |
| Size / Dimension | - | 29 mm |
| Type | LED | LED |
| Voltage | 130 V | 130 V |
| Voltage - Forward (Vf) (Typ) | - | 130 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.20 | |
| 10 | $ 19.25 | |||
| 25 | $ 18.39 | |||
| 50 | $ 17.42 | |||
| 100 | $ 16.77 | |||
| 250 | $ 15.68 | |||
| 500 | $ 13.39 | |||
10-2524 Series
LAMP LED BA9S WHT 130V
| Part | Applications | Color | Configuration | Can Replace Lamps | Base Type | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Type | Voltage | (Select First, Then Apply Filters) Compatible Series | (Select First, Then Apply Filters) Compatible Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 10-2524.3049 | General Purpose Lighting | White | Single | Multiple Miniature Bayonet Lamps | Miniature Bayonet (BA9S) | 225 mcd | 130 V | 0.394 in | 1.142 inches | 10 mm | 29 mm | ||||
EAO 10-2524.3045 | Green | LED | 130 V | 10 | EAO |
Description
General part information
10-2524 Series
Configurable Switch Lamp LED Green 130V
