10-2524.3049
ActiveEAO

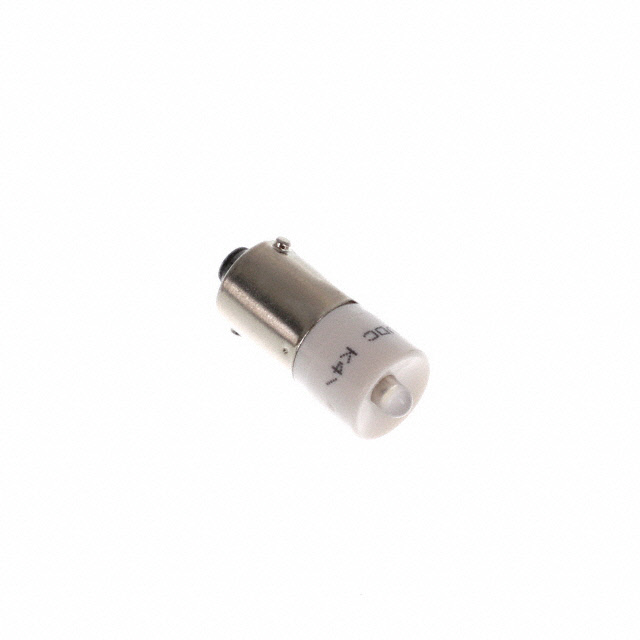

LAMP LED BA9S WHT 130V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10-2524.3049
ActiveEAO
LAMP LED BA9S WHT 130V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10-2524.3049 | 10-2524 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | - | 10 |
| (Select First, Then Apply Filters) Compatible Series | - | EAO |
| Applications | General Purpose Lighting | General Purpose Lighting |
| Base Type | Miniature Bayonet (BA9S) | Miniature Bayonet (BA9S) |
| Can Replace Lamps | Multiple Miniature Bayonet Lamps | Multiple Miniature Bayonet Lamps |
| Color | White | White, Green |
| Configuration | Single | Single |
| Millicandela Rating | 225 mcd | 225 mcd |
| Size / Dimension [diameter] | 0.394 in | 0.394 in |
| Size / Dimension [diameter] | 10 mm | 10 mm |
| Size / Dimension [x] | 1.142 inches | 1.142 inches |
| Size / Dimension [x] | 29 mm | 29 mm |
| Type | - | LED |
| Voltage | - | 130 V |
| Voltage - Forward (Vf) (Typ) | 130 V | 130 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.00 | |
| 10 | $ 18.98 | |||
| 25 | $ 17.89 | |||
| 50 | $ 17.11 | |||
| 100 | $ 16.36 | |||
| 250 | $ 15.42 | |||
| 500 | $ 14.75 | |||
10-2524 Series
LAMP LED BA9S WHT 130V
| Part | Applications | Color | Configuration | Can Replace Lamps | Base Type | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Type | Voltage | (Select First, Then Apply Filters) Compatible Series | (Select First, Then Apply Filters) Compatible Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 10-2524.3049 | General Purpose Lighting | White | Single | Multiple Miniature Bayonet Lamps | Miniature Bayonet (BA9S) | 225 mcd | 130 V | 0.394 in | 1.142 inches | 10 mm | 29 mm | ||||
EAO 10-2524.3045 | Green | LED | 130 V | 10 | EAO |
Description
General part information
10-2524 Series
LED Lamp Replacement White Miniature Bayonet (BA9S) 130V 0.394" Dia x 1.142" L (10.00mm x 29.00mm)
